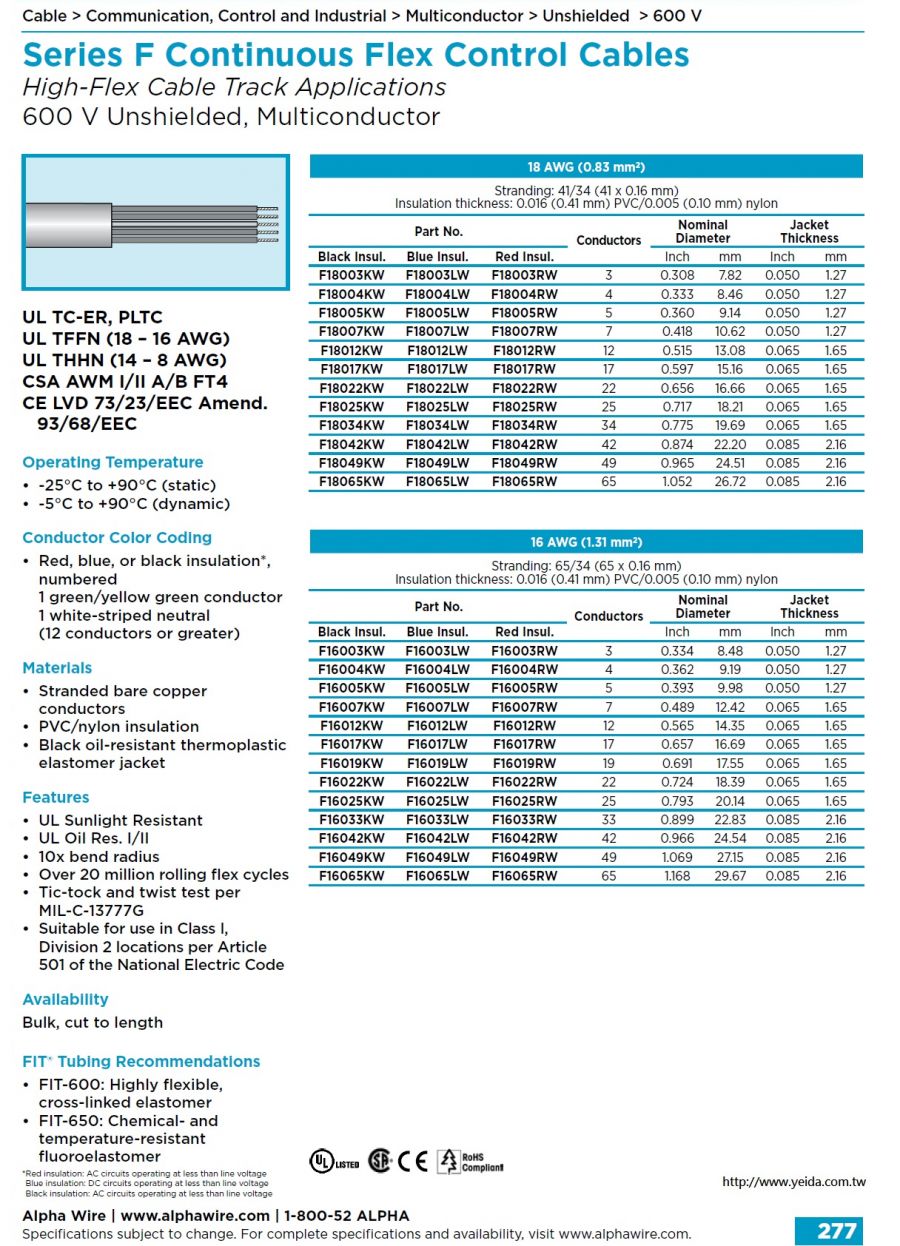

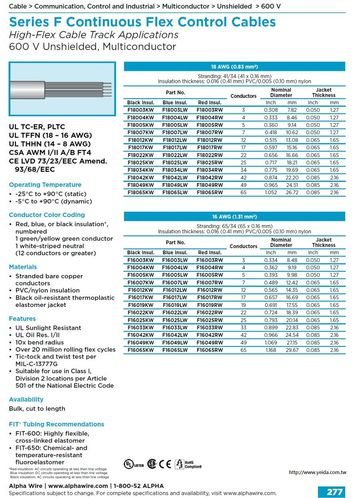

Industrial Series F

Alpha Wire's Series F continuous flex control cable offers industry-leading mechanical and electrical performance for high-flex cable track applications.

Series F Key features:
　

• Up to 20 million continuous rolling flex cycles
• 28 – 8 AWG
• 3 – 65 conductors
• PVC/nylon insulation
• Thermoplastic elastomer jacket
• UL Type TC-ER (600 V)
• UL Type PLTC (300 V) (18-12AWG only)
• Sunlight resistant

Alpha Wire 的 F 系列连续挠曲控制电缆为高挠曲电缆轨道应用提供行业领先的机械和电气性能。

F 系列电缆的主要特性 ：

• 高达 2 千万次的连续滚动挠曲循环
• 线径为 28 到 8 AWG
• 导线数量为 3 到 65 根
• 聚氯乙烯/尼龙绝缘
• 热塑性橡胶护套
• UL 类型 TC-ER（600 伏）
• UL 类型 PLTC（300 伏）（仅限 18 到 12 AWG）
• 防紫外线

  Part # 　 Type　 Shielding Voltage　 AWG # of Elements 　 Jacket Thickness Alpha F16003KW Conductor UNSHIELDED 600 16 3 0.05 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL PLTC, UL SUN RES, UL TC, UL TFFN F16003LW Conductor UNSHIELDED 600 16 3 0.05 F16003RW Conductor UNSHIELDED 600 16 3 0.05 F16004KW Conductor UNSHIELDED 600 16 4 0.05 F16004LW Conductor UNSHIELDED 600 16 4 0.05 F16004RW Conductor UNSHIELDED 600 16 4 0.05 F16005KW Conductor UNSHIELDED 600 16 5 0.05 F16005LW Conductor UNSHIELDED 600 16 5 0.05 F16005RW Conductor UNSHIELDED 600 16 5 0.05 F16007KW Conductor UNSHIELDED 600 16 7 0.065 F16007LW Conductor UNSHIELDED 600 16 7 0.065 F16007RW Conductor UNSHIELDED 600 16 7 0.065 F16012KW Conductor UNSHIELDED 600 16 12 0.065 F16012LW Conductor UNSHIELDED 600 16 12 0.065 F16012RW Conductor UNSHIELDED 600 16 12 0.065 F16017KW Conductor UNSHIELDED 600 16 17 0.065 F16017LW Conductor UNSHIELDED 600 16 17 0.065 F16017RW Conductor UNSHIELDED 600 16 17 0.065 F16019KW Conductor UNSHIELDED 600 16 19 0.065 F16019LW Conductor UNSHIELDED 600 16 19 0.065



  Part # 　 Type　 Shielding Voltage　 AWG # of Elements 　 Jacket Thickness alpha F16019RW Conductor UNSHIELDED 600 16 19 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL PLTC, UL SUN RES, UL TC, UL TFFN F16022KW Conductor UNSHIELDED 600 16 22 0.065 F16022LW Conductor UNSHIELDED 600 16 22 0.065 F16022RW Conductor UNSHIELDED 600 16 22 0.065 F16025KW Conductor UNSHIELDED 600 16 25 0.065 F16025LW Conductor UNSHIELDED 600 16 25 0.065 F16025RW Conductor UNSHIELDED 600 16 25 0.065 F16033KW Conductor UNSHIELDED 600 16 33 0.085 F16033LW Conductor UNSHIELDED 600 16 33 0.085 F16033RW Conductor UNSHIELDED 600 16 33 0.085 F16042KW Conductor UNSHIELDED 600 16 42 0.085 F16042LW Conductor UNSHIELDED 600 16 42 0.085 F16042RW Conductor UNSHIELDED 600 16 42 0.085 F16049KW Conductor UNSHIELDED 600 16 49 0.085 F16049LW Conductor UNSHIELDED 600 16 49 0.085 F16049RW Conductor UNSHIELDED 600 16 49 0.085 F16065KW Conductor UNSHIELDED 600 16 65 0.085 F16065LW Conductor UNSHIELDED 600 16 65 0.085 F16065RW Conductor UNSHIELDED 600 16 65 0.085
