    ALPHA75010- Industrial Ethernet UL1666, CMR, Cat 5e cables Awg24 x 2PR UNSHIELDED (-50 to +105) PP-TPE CAT-5E 2對工業以太網路電纜
    看原圖
    		ALPHA-75010



    商品編號: ALPHA-75010

    ALPHA75010- Industrial Ethernet UL1666, CMR, Cat 5e cables Awg24 x 2PR UNSHIELDED (-50 to +105) PP-TPE CAT-5E 2對工業以太網路電纜


    Designed for uncompromising performance to keep the network running anywhere, Alpha Wire’s Industrial
    Ethernet cables feature an abrasion-resistant thermoplastic elastomer jacket
    with three times the lowtemperature flexibility,
    and resists solvents, chemicals, and fuels better
    than ordinary PVC.

    Part # Type Shielding AWG Stranding # of Elements Insulation Material Jacket Thickness Applicable Specifications
    75010 Pair UNSHIELDED 24 SOLID 2PR PP 0.035 CE, CSA - C(UL) TYPE CMR, CSA FT4, ROHS - RoHS Compliance, UL CMR, UL - FT4

    Construction
    　 Diameters (In)
    1) Component 1 2 X 1 PAIR 　
    a) Conductor 24 (SOLID) AWG BC 0.021
    b) Insulation 0.0075" Wall, Nom. Polypropylene (PP) 0.036
    (1) Color(s) 　 　
    Pair Color Pair Color Pair Color
    1 BLU - WHT/BLU 2 ORG - WHT/ORG 　 　
    c) Pair 2/Cond Cabled Together 　
    (1) Lay Length: Various Lay 　
    2) Cable Assembly 2 Components Cabled 　
    a) Twists: 4.0 Twists/foot (min) 　
    b) Core Wrap Clear Mylar Tape, 25% Overlap, Min. 　
    3) Jacket 0.035" Wall, Nom.,TPE 0.260 (0.270 Max.)
    a) Color(s) BLACK
    b) Ripcord Nylon 　
    c) Print ALPHA WIRE-* P/N 75010 2PR 24 AWG
    XTRAGUARD(R) INDUSTRIAL ETHERNET (UL) C(UL) TYPE
    CMR 105C FT4 ANSI/TIA-568-C.2 CAT5E VERIFIED
    ROHS (SEQUENTIAL FOOTAGE MARKING)
    * = Factory Code
    Applicable Specifications
    1) UL CMR 105°C
    　 FT4 　
    2) CSA International C(UL) TYPE CMR 105°C
    　 FT4 　
    3) CE: LVD 73/23/EEC Amendment 93/68/EEC
    Environmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -50 to 105°C
    2) Bend Radius 4X Cable Diameter
    3) Pull Tension 12.7 Lbs, Maximum
    4) Sunlight Resistance Yes
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 300 VRMS
    2) Characteristic Impedance 100 Ω +/- 15
    3) Mutual Capacitance 5.6 nf/100m Max
    4) Velocity of Propagation 70 % Nom.
    5) Conductor DCR 9.38 Ω/100m @20°C, Max
    6) Skew 45 ns/100m, Max
    7) Pair to Ground Unbalance 330 pf/100m, Max
    8) DC Unbalance of a Pair 5%, Max
    9) Insertion Loss, Max dB/100m 2.4 @ 1 MHz
    　 4.9 @ 4 MHz
    　 6.9 @ 8 MHz
    　 7.8 @ 10 MHz
    　 9.9 @ 16 MHz
    　 11.1 @ 20 MHz
    　 12.5 @ 25 MHz
    　 14.1 @ 31.25 MHz
    　 20.4 @ 62.5 MHz
    　 26.4 @ 100 MHz
    Other
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 12 x 12 x 3.5 Continuous length
    b) 500 FT 12 x 6 x 3.5 Continuous length
    　 [Spool dimensions may vary slightly]

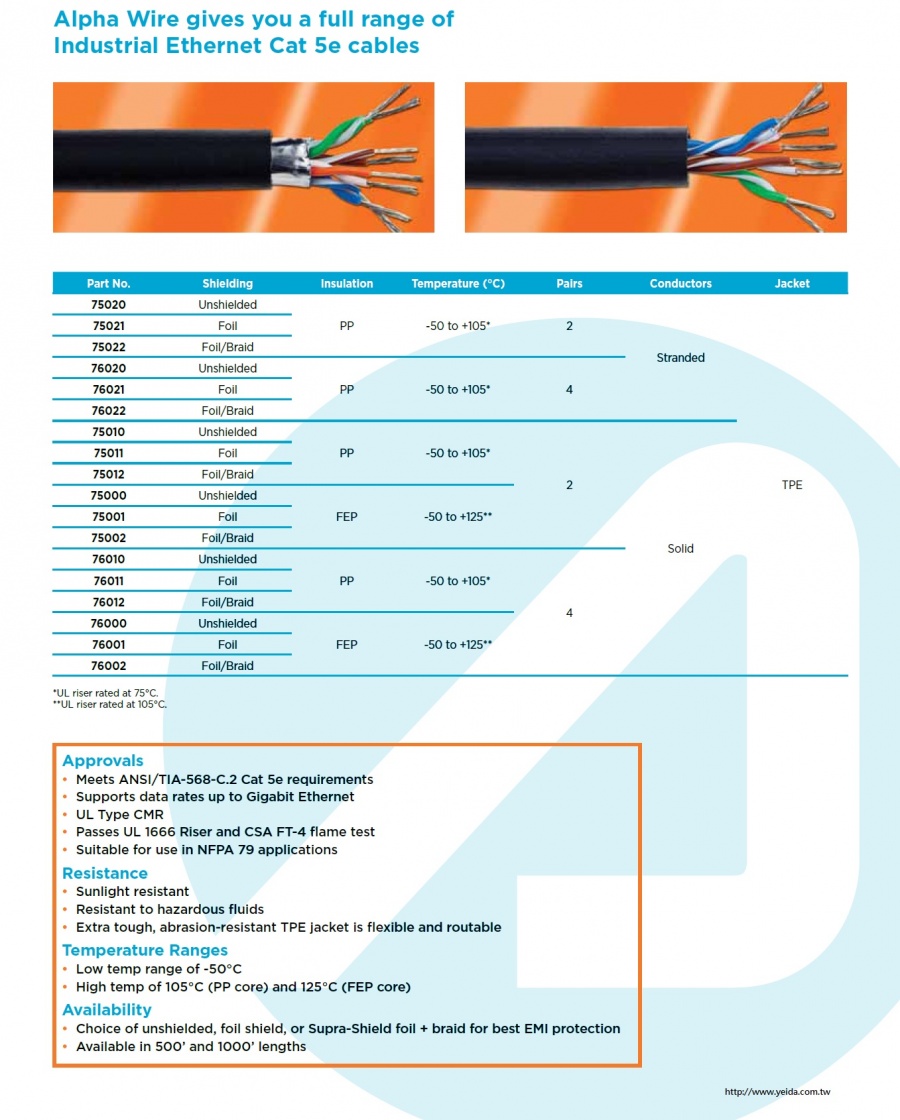

    Xtra-Guard® Industrial Ethernet - Rugged connectivity for industrial networking Abrasion Low Temperature EMI Noise Flexing High Temperature Oil, Chemicals, Solvents, Fuels

    • -50°C to 105°C (PP core) and 125°C (FEP core)
    • 4 times OD (unshielded) and 8 times OD (shielded) cold bend radius per TIA-568-C.2
    • Meets ANSI/TIA-568-C.2 Cat 5e requirements
    • UL Type CMR and suitable for use in NFPA 79 applications*
    • Sunlight, fluid, and abrasion resistant
    • High-performance TPE jacket provides three times the low temperature flexibility of PVC
    • Unshielded, foil shielded, or Supra-Shield® foil + braid for best EMI protection


    Part #

    　

    		 Type　 Shielding AWG Stranding # of Elements

    　

    		 Insulation Material

    　

    		 Jacket Thickness
    75000 Pair UNSHIELDED 24 SOLID 2PR FEP 0.035 CE, CSA - C(UL) TYPE CMR, CSA FT4, ROHS - RoHS Compliance, UL CMR, UL - FT4
    75001 Pair FOIL 24 SOLID 2PR FEP 0.035
    75002 Pair SupraShield (Premium Foil/Braid) 24 SOLID 2PR FEP 0.035
    75010 Pair UNSHIELDED 24 SOLID 2PR PP 0.035
    75011 Pair FOIL 24 SOLID 2PR PP 0.035
    75012 Pair SupraShield (Premium Foil/Braid) 24 SOLID 2PR PP 0.035
    75020 Pair UNSHIELDED 24 7/32 2PR PP 0.035
    75021 Pair FOIL 24 7/32 2PR PP 0.035
    75022 Pair SupraShield (Premium Foil/Braid) 24 7/32 2PR PP 0.035
    76000 Pair UNSHIELDED 24 SOLID 4PR FEP 0.035
    76001 Pair FOIL 24 SOLID 4PR FEP 0.035
    76002 Pair SupraShield (Premium Foil/Braid) 24 SOLID 4PR FEP 0.035
    76010 Pair UNSHIELDED 24 SOLID 4PR PP 0.035
    76011 Pair FOIL 24 SOLID 4PR PP 0.035
    76012 Pair SupraShield (Premium Foil/Braid) 24 SOLID 4PR PP 0.035
    76020 Pair UNSHIELDED 24 7/32 4PR PP 0.035
    76021 Pair FOIL 24 7/32 4PR PP 0.035
    76022 Pair SupraShield (Premium Foil/Braid) 24 7/32 4PR PP 0.035
    669333 Pair UNSHIELDED 24 7/32 2PR PP 0.033 ROHS - RoHS Compliance
    669343 Pair Foil/Unshielded 24+22 7/32 & 19/34 4PR PP 0.049 ROHS - RoHS Compliance

    keywords: Alpha75010, Alpha75011, Alpha75012, Alpha75011, Alpha75001, Alpha75002, CAT-5E, 2對, 工業級, 以太網路線
