ALPHA- Industrial Ethernet Cat 5e cables Awg24(7/32 ) x 2PR SupraShield (Premium Foil/Braid) PP-TPE (-50 to +105) 2對多股絞線柔性鋁箔+銅網隔離CAT-5E 工業級網路線宜大電線有限公司

Construction

Diameters (In)

1) Component 1

2 X 1 PAIR

a) Conductor

24 (7/32) AWG BC

0.024

b) Insulation

0.0135" Wall, Nom. Polypropylene (PP)

0.051

(1) Color(s)

Pair	Color	Pair	Color	Pair	Color
1	BLU - WHT/BLU	2	ORG - WHT/ORG

c) Pair

2/Cond Cabled Together

(1) Lay Length:

Various Lay

2) Cable Assembly

2 Components Cabled

a) Twists:

4.0 Twists/foot (min)

b) Core Wrap

Clear Mylar Tape, 25% Overlap, Min.

3) Shield:

A/P/A Tape, 25% Overlap, Min.

a) Drain Wire

24 (SOLID) AWG TC

b) Braid

TC,70% Coverage, Min.

4) Jacket

0.035" Wall, Nom.,TPE

0.325 (0.335 Max.)

a) Color(s)

BLACK

b) Ripcord

Nylon

c) Print

ALPHA WIRE-* P/N 75022 2PR 24 AWG
XTRAGUARD(R) INDUSTRIAL ETHERNET (UL) C(UL) TYPE
CMR 105C FT4 ANSI/TIA-568-C.2 CAT5E VERIFIED
ROHS (SEQUENTIAL FOOTAGE MARKING)
* = Factory Code

Applicable Specifications

Environmental

Properties

Physical & Mechanical Properties
1) Temperature Range	-50 to 105°C
2) Bend Radius	8X Cable Diameter
3) Pull Tension	21.6 Lbs, Maximum
4) Sunlight Resistance	Yes
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	300 V_RMS
2) Characteristic Impedance	100 Ω +/- 15
3) Mutual Capacitance	5.6 nf/100m Max
4) Velocity of Propagation	70 % Nom.
5) Conductor DCR	9.38 Ω/100m @20°C, Max
6) Skew	45 ns/100m, Max
7) Pair to Ground Unbalance	330 pf/100m, Max
8) DC Unbalance of a Pair	5%, Max
9) Insertion Loss, Max dB/100m	2.4 @ 1 MHz
	4.9 @ 4 MHz
	6.9 @ 8 MHz
	7.8 @ 10 MHz
	9.9 @ 16 MHz
	11.1 @ 20 MHz
	12.5 @ 25 MHz
	14.1 @ 31.25 MHz
	20.4 @ 62.5 MHz
	26.4 @ 100 MHz

Other

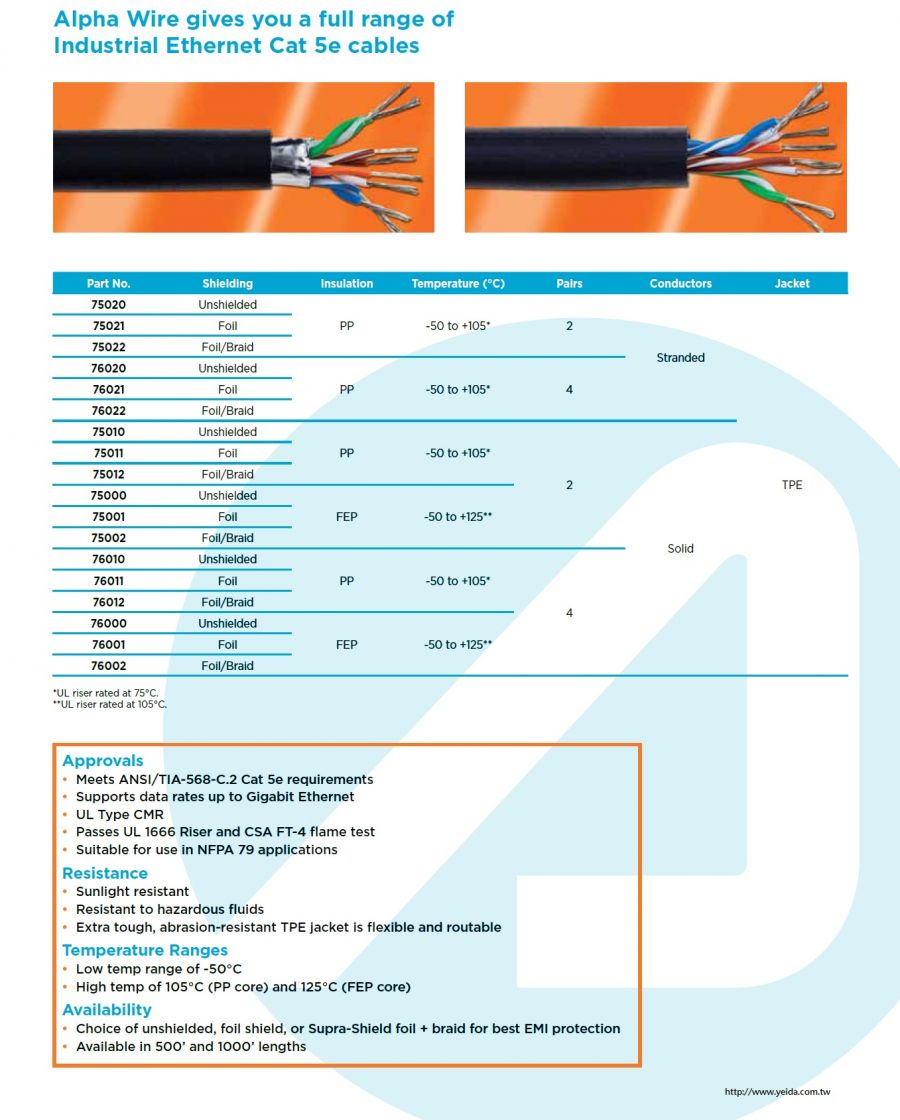

Xtra-Guard® Industrial Ethernet - Rugged connectivity for industrial networking

-50°C to 105°C (PP core) and 125°C (FEP core)
4 times OD (unshielded) and 8 times OD (shielded) cold bend radius per TIA-568-C.2
Meets ANSI/TIA-568-C.2 Cat 5e requirements
UL Type CMR and suitable for use in NFPA 79 applications*
Sunlight, fluid, and abrasion resistant
High-performance TPE jacket provides three times the low temperature flexibility of PVC
Unshielded, foil shielded, or Supra-Shield® foil + braid for best EMI protection

Xtra-Guard® Industrial Ethernet - For Military and Special Applications (669333 & 669343)

669333

Double-jacketed cable with inner PVC, foil+braid shield, and outer TPE jacket
Shielded for EMI protection
Excellent impact and crush resistance
High performance TPE jacket provides 3x the low temperature flexibility of PVC

669343

Hybrid Data + Power cable
Four Cat 5 pairs with 4 more 22 AWG conductors
Shielded for EMI protection
High performance TPE jacket provides 3x the low temperature flexibility of PVC

EU/China ROHS CERTIFICATE OF COMPLIANCE

To Whom It May Concern:

Alpha Wire Part Number: 75022

75022, RoHS-Compliant Commencing With 3/21/2012 Production

This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006.

Substance	Maximum Control Value
Lead	0.1% by weight (1000 ppm)
Mercury	0.1% by weight (1000 ppm)
Cadmium	0.01% by weight (100 ppm)
Hexavalent Chromium	0.1% by weight (1000 ppm )
Polybrominated Biphenyls (PBB)	0.1% by weight (1000 ppm)
Polybrominated Diphenyl Ethers (PBDE) ,
Including Deca-BDE	0.1% by weight (1000 ppm)

The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.

Authorized Signatory for the Alpha Wire Company:

Dave Watson, Director of Engineering & QA

4/22/2012
