    ALPHA-Series M Awg18 UNSHIELDED MutiConductor 600V UL DIRECT BURIAL, UL EXPOSED RUN, MTW, OIL RES I, SUN RES, TC, WTTC M系列可直埋•防紫外线•UL 耐油级别 I 控制电缆(固定电缆桥架应用 )
    看原圖

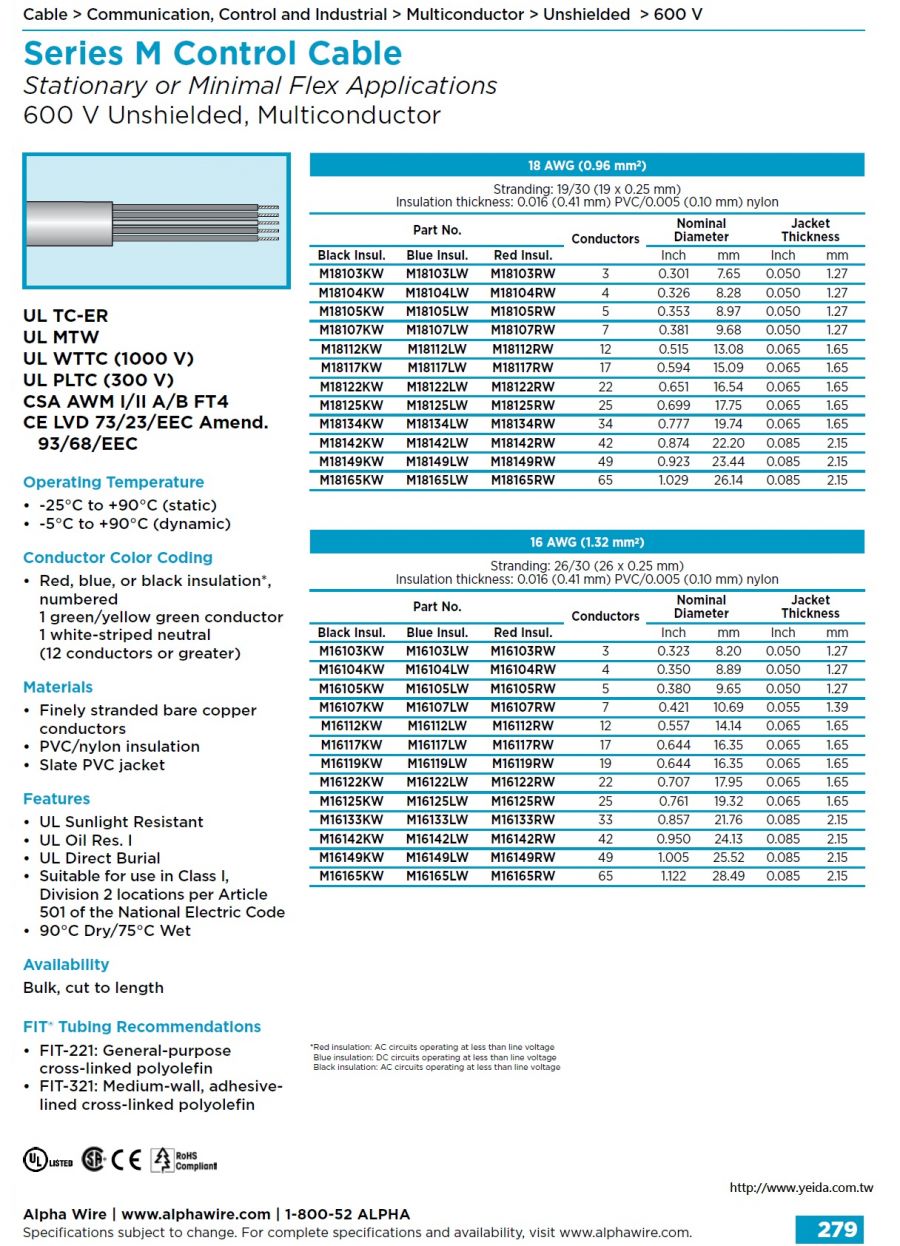

    		ALPHA-M18103KW


    商品編號: ALPHA-M18103KW

    ALPHA-Series M Awg18 UNSHIELDED MutiConductor 600V UL DIRECT BURIAL, UL EXPOSED RUN, MTW, OIL RES I, SUN RES, TC, WTTC M系列可直埋•防紫外线•UL 耐油级别 I 控制电缆(固定电缆桥架应用 )


    M Control Cable
    Stationary or Minimal Flex Applications
    600 V Unshielded, Multiconductor
    UL TC-ER
    UL MTW
    UL WTTC (1000 V)
    UL PLTC (300 V)
    CSA AWM I/II A/B FT4
    CE LVD 73/23/EEC Amend.
    93/68/EEC


    Operating Temperature
    • -25°C to +90°C (static)
    • -5°C to +90°C (dynamic)
    Conductor Color Coding
    • Red, blue, or black insulation*, numbered 1 green/yellow green conductor
         1 white-striped neutral (12 conductors or greater)
    Materials
    • Finely stranded bare copper conductors
    • PVC/nylon insulation
    • Slate PVC jacket
    Features
    • UL Sunlight Resistant
    • UL Oil Res. I
    • UL Direct Burial
    • Suitable for use in Class I, Division 2 locations per Article
         501 of the National Electric Code
    • 90°C Dry/75°C Wet
    Availability
    Bulk, cut to length


    FIT® Tubing Recommendations
    • FIT-221: General-purpose cross-linked polyolefin
    • FIT-321: Medium-wall, adhesivelined cross-linked polyolefin

    Alpha Wire's Series M control cable offers industry-leading mechanical and electrical performance for stationary cable trays.

    Series M Key features:
    　

    • 18 – 8 AWG
    • 3 – 65 conductors
    • PVC/nylon insulation
    • Oil-resistant PVC jacket
    • UL Type TC-ER (600 V)
    • UL Type MTW (600V)
    • UL Type WTTC (600V)
    • UL Type PLTC (300 V) (18-12AWG only)
    • Direct burial
    • Sunlight resistant
    • UL Oil Res. I

    Alpha Wire 的 M 系列控制电缆为固定电缆桥架应用提供行业领先的机械和电气性能。

    M 系列电缆的主要特性 ：

    • 线径为 18 到 8 AWG
    • 导线数量为 3 到 65 根
    • 聚氯乙烯/尼龙绝缘
    • 耐油聚氯乙烯护套
    • UL 类型 TC-ER（600 伏）
    • UL 类型 MTW（600 伏）
    • UL 类型 WTTC（600 伏）
    • UL 类型 PLTC（300 伏）（仅限 18 到 12 AWG）
    • 直埋
    • 防紫外线
    • UL 耐油级别 I
    Part #

    　

    		 Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Thickness
    M18103KW Conductor UNSHIELDED 600 18 3 0.301 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, REACH Regulation (EC 1907/2006), UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18103LW Conductor UNSHIELDED 600 18 3 0.301
    M18103RW Conductor UNSHIELDED 600 18 3 0.301
    M18104KW Conductor UNSHIELDED 600 18 4 0.326
    M18104LW Conductor UNSHIELDED 600 18 4 0.326
    M18104RW Conductor UNSHIELDED 600 18 4 0.326
    M18105KW Conductor UNSHIELDED 600 18 5 0.353
    M18105LW Conductor UNSHIELDED 600 18 5 0.353
    M18105RW Conductor UNSHIELDED 600 18 5 0.353
    M18107KW Conductor UNSHIELDED 600 18 7 0.381
    M18107LW Conductor UNSHIELDED 600 18 7 0.381
    M18107RW Conductor UNSHIELDED 600 18 7 0.381
    M18112KW Conductor UNSHIELDED 600 18 12 0.515
    M18112LW Conductor UNSHIELDED 600 18 12 0.515
    M18112RW Conductor UNSHIELDED 600 18 12 0.515
    M18117KW Conductor UNSHIELDED 600 18 17 0.594
    M18117LW Conductor UNSHIELDED 600 18 17 0.594
    M18117RW Conductor UNSHIELDED 600 18 17 0.594
    M18122KW Conductor UNSHIELDED 600 18 22 0.651
    M18122LW Conductor UNSHIELDED 600 18 22 0.651
    Part #

    　

    		 Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Thickness
    M18122RW Conductor UNSHIELDED 600 18 22 0.651 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18125KW Conductor UNSHIELDED 600 18 25 0.699 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18125LW Conductor UNSHIELDED 600 18 25 0.699 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18125RW Conductor UNSHIELDED 600 18 25 0.699 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18134KW Conductor UNSHIELDED 600 18 34 0.777 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18134LW Conductor UNSHIELDED 600 18 34 0.777 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18134RW Conductor UNSHIELDED 600 18 34 0.777 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18142KW Conductor UNSHIELDED 600 18 42 0.874 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18142LW Conductor UNSHIELDED 600 18 42 0.874 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18142RW Conductor UNSHIELDED 600 18 42 0.874 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18149KW Conductor UNSHIELDED 600 18 49 0.923 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18149LW Conductor UNSHIELDED 600 18 49 0.923 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18149RW Conductor UNSHIELDED 600 18 49 0.923 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18165KW Conductor UNSHIELDED 600 18 65 1.029 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18165LW Conductor UNSHIELDED 600 18 65 1.029 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
    M18165RW Conductor UNSHIELDED 600 18 65 1.029 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, UL DIRECT BURIAL, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL PLTC, UL SUN RES, UL TC, UL WTTC
