    首頁 > > ALPHA-Series XM (Flex Control)工業系列 XM

    ALPHA-Series XM Awg16 600/1000V UNSHIELDED (Flex Control) (UL EXPOSED RUN, MTW, OIL RES I, SUN RES, TC, WTTC )XM 系列柔性控制电缆(堅韌 適合連續繞曲控制應用 )
    看原圖
    		ALPHA-XM1603R

    '
    商品編號: ALPHA-XM1603R

    ALPHA-Series XM Awg16 600/1000V UNSHIELDED (Flex Control) (UL EXPOSED RUN, MTW, OIL RES I, SUN RES, TC, WTTC )XM 系列柔性控制电缆(堅韌 適合連續繞曲控制應用 )

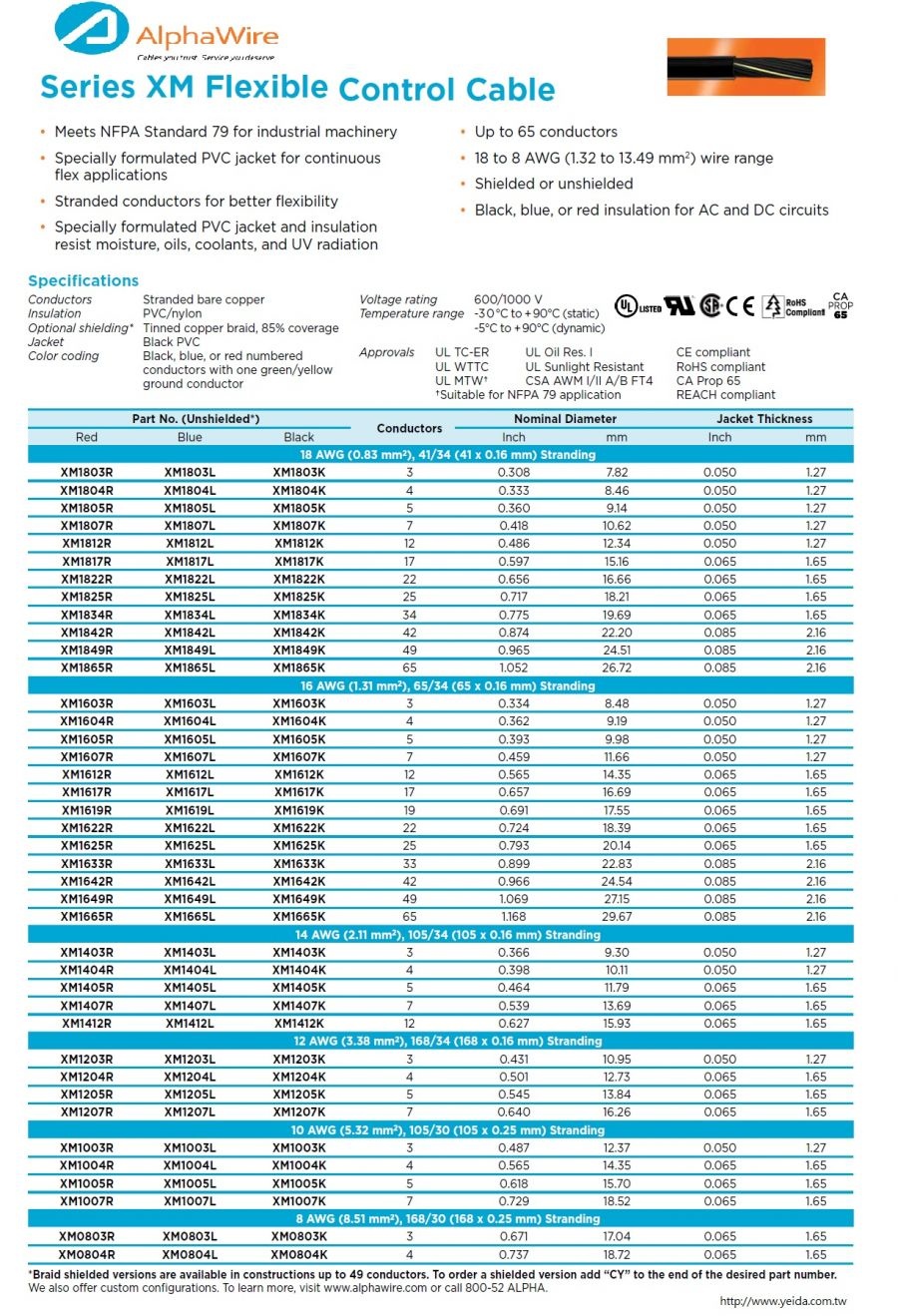

    Series XM (Flex Control)

    　

    A Tougher Cable for Continuous Flex Control Applications

    Series XM Flexible Control Cable is the ideal choice for medium-to-high-flex applications. Featuring a premium-grade PVC jacket, Series XM offers a durable, oil-resistant construction that prevents contamination from hazardous fluids and protects against abrasion. Plus, its optimum flexibility and performance allows it to support a variety of industrial applications, including:

    • High-speed pick-and-place robotic systems
    • Automated material handling equipment
    • Conveyors and transfer shuttles
    • Flex track installations

    Available shielded or unshielded in a variety of gauge sizes, jacket colors, and conductor counts.

    Series XM Product Breakdown:

    • Meets NFPA Standard 79 for industrial machinery
    • Stranded conductors for better flexibility
    • Specially formulated PVC jacket and insulation for continuous flex applications and resistance to moisture, oils, coolants, and UV radiation
    • Up to 65 conductors
    • 8 to 18 AWG wire range
    • Shielded or unshielded
    • Black, blue, or red insulation for AC and DC circuits
    • Rated for up to 12 million flex life cycles

    更坚韧的电缆 ， 适合连续挠曲控制应用

    XM 系列柔性控制电缆是中高挠曲应用的理想选择。XM 系列拥有高质量聚氯乙烯护套，采用持久耐用的耐油构造，防止受到有害流体的污染，并提供防磨保护。另外，它优异的柔韧性和性能支持各种工业应用，包括：

    • 高速机器人取放系统
    • 自动物料处理设备
    • 输送机和往复式传送系统
    • 挠曲轨道装置

    分屏蔽或非屏蔽两种类型，线径、护套颜色和导线数量齐全。

    XM 系列产品特性：

    • 满足 NFPA 标准 79 的工业机械要求
    • 绞合导体，柔韧性更好
    • 特制的聚氯乙烯护套和绝缘，适用于连续挠曲应用，具有抗湿、防油、耐冷却剂和防紫外线辐射性能
    • 导线数量高达 65 根
    • 线径范围为 8 到 16 AWG
    • 屏蔽或非屏蔽
    • 黑色、蓝色或红色绝缘材料，与交流和直流电路颜色匹配

    通信、控制以及工业电缆

    满足要求苛刻的应用

    通信和控制是任何电子系统的关键。无论是风力涡轮发电机的监测和控制、工厂车间驱动器与电动机之间的通信还是工程部 CAD 系统的互连，选用合适的通信和控制电缆是保持较高信号完整性的关键。

    Alpha Wire 的通信和控制电缆品种齐全，可以为您的应用找到恰当的电缆。我们的电缆满足特殊要求，例如低电容电缆有助于远距离传输数字信号，橡胶绝缘和护套提高了柔韧性，或者优异的屏蔽性能使它适用于嘈杂的电气环境。

    通信和控制电缆的典型应用包括：

    • 音频系统：扬声器、麦克风、对讲机
    • 广播和播音室
    • 数据传输：RS-232, 422, 485
    • 计算机辅助设计/计算机辅助制造
    • 计算机外设
    • 商业机器
    • 安防系统：警报器、摄像头、传感器
    • 控制系统
    • 仪表系统
    • 销售网点系统
    • 银行系统

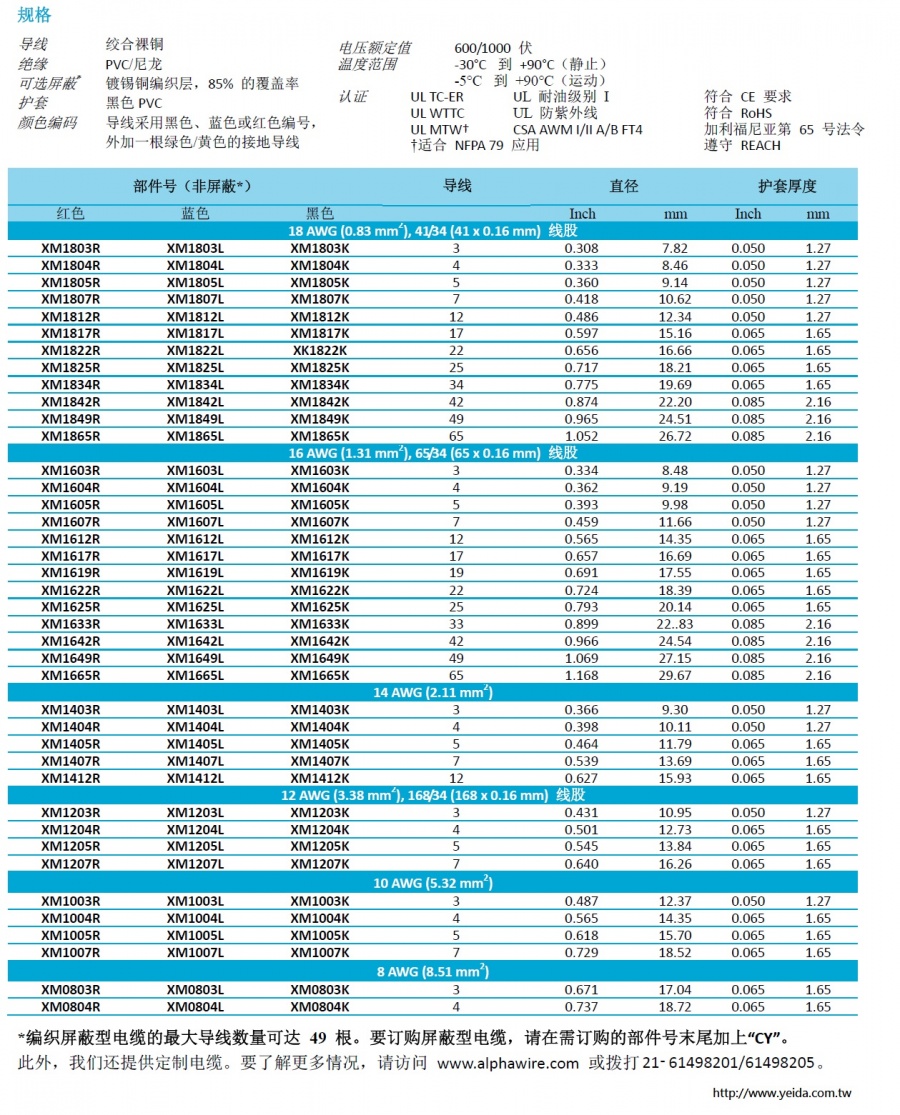

    类型通信、控制以及工业电缆
    Part # Type

    　

    		 Shielding　 Voltage AWG # of Elements

    　

    		 Jacket Diameter
    XM1603K Multi-Conductor UNSHIELDED 600/1000 16 3 0.334 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1603L Multi-Conductor UNSHIELDED 600/1000 16 3 0.334
    XM1603R Multi-Conductor UNSHIELDED 600/1000 16 3 0.334
    XM1604K Multi-Conductor UNSHIELDED 600/1000 16 4 0.362
    XM1604L Multi-Conductor UNSHIELDED 600/1000 16 4 0.362
    XM1604R Multi-Conductor UNSHIELDED 600/1000 16 4 0.362
    XM1605K Multi-Conductor UNSHIELDED 600/1000 16 5 0.393
    XM1605L Multi-Conductor UNSHIELDED 600/1000 16 5 0.393
    XM1605R Multi-Conductor UNSHIELDED 600/1000 16 5 0.393
    XM1607K Multi-Conductor UNSHIELDED 600/1000 16 7 0.459
    XM1607L Multi-Conductor UNSHIELDED 600/1000 16 7 0.459
    XM1607R Multi-Conductor UNSHIELDED 600/1000 16 7 0.459
    XM1612K Multi-Conductor UNSHIELDED 600/1000 16 12 0.565
    XM1612L Multi-Conductor UNSHIELDED 600/1000 16 12 0.565
    XM1612R Multi-Conductor UNSHIELDED 600/1000 16 12 0.565
    XM1617K Multi-Conductor UNSHIELDED 600/1000 16 17 0.657
    XM1617L Multi-Conductor UNSHIELDED 600/1000 16 17 0.657
    XM1617R Multi-Conductor UNSHIELDED 600/1000 16 17 0.657
    XM1619K Multi-Conductor UNSHIELDED 600/1000 16 19 0.691
    XM1619L Multi-Conductor UNSHIELDED 600/1000 16 19 0.691


    Part # Type Shielding Voltage AWG # of Elements

    　

    		 Jacket Material
    XM1619R Multi-Conductor UNSHIELDED 600/1000 16 19 0.691 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1622K Multi-Conductor UNSHIELDED 600/1000 16 22 0.724 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1622L Multi-Conductor UNSHIELDED 600/1000 16 22 0.724 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1622R Multi-Conductor UNSHIELDED 600/1000 16 22 0.724 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1625K Multi-Conductor UNSHIELDED 600/1000 16 25 0.793 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1625L Multi-Conductor UNSHIELDED 600/1000 16 25 0.793 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1625R Multi-Conductor UNSHIELDED 600/1000 16 25 0.793 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1633K Multi-Conductor UNSHIELDED 600/1000 16 33 0.899 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1633L Multi-Conductor UNSHIELDED 600/1000 16 33 0.899 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1633R Multi-Conductor UNSHIELDED 600/1000 16 33 0.899 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1642K Multi-Conductor UNSHIELDED 600/1000 16 42 0.966 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1642L Multi-Conductor UNSHIELDED 600/1000 16 42 0.966 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1642R Multi-Conductor UNSHIELDED 600/1000 16 42 0.966 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1649K Multi-Conductor UNSHIELDED 600/1000 16 49 1.069 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1649L Multi-Conductor UNSHIELDED 600/1000 16 49 1.069 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1649R Multi-Conductor UNSHIELDED 600/1000 16 49 1.069 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1665K Multi-Conductor UNSHIELDED 600/1000 16 65 1.168 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1665L Multi-Conductor UNSHIELDED 600/1000 16 65 1.168 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
    XM1665R Multi-Conductor UNSHIELDED 600/1000 16 65 1.168 CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL EXPOSED RUN, UL MTW, UL OIL RES I, UL SUN RES, UL TC, UL WTTC
