    首頁 > > YRUILON-過壓過流保護元件

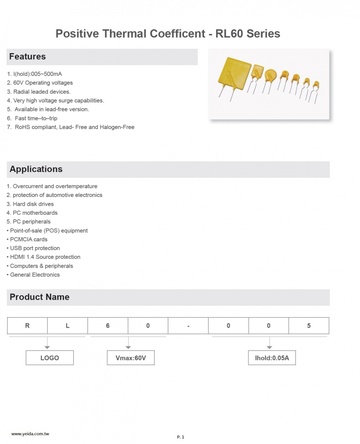

    Resettable Fuses-PPTC Positive Thermal Coefficent - RL60 Series 自恢復保險絲
    看原圖
    		YRUILON-RL60

    商品編號: YRUILON-RL60

    Resettable Fuses-PPTC Positive Thermal Coefficent - RL60 Series 自恢復保險絲



    And overcurrent protection > Resettable Fuses-PPTC

    過流與保護模塊 > 自恢復保險絲

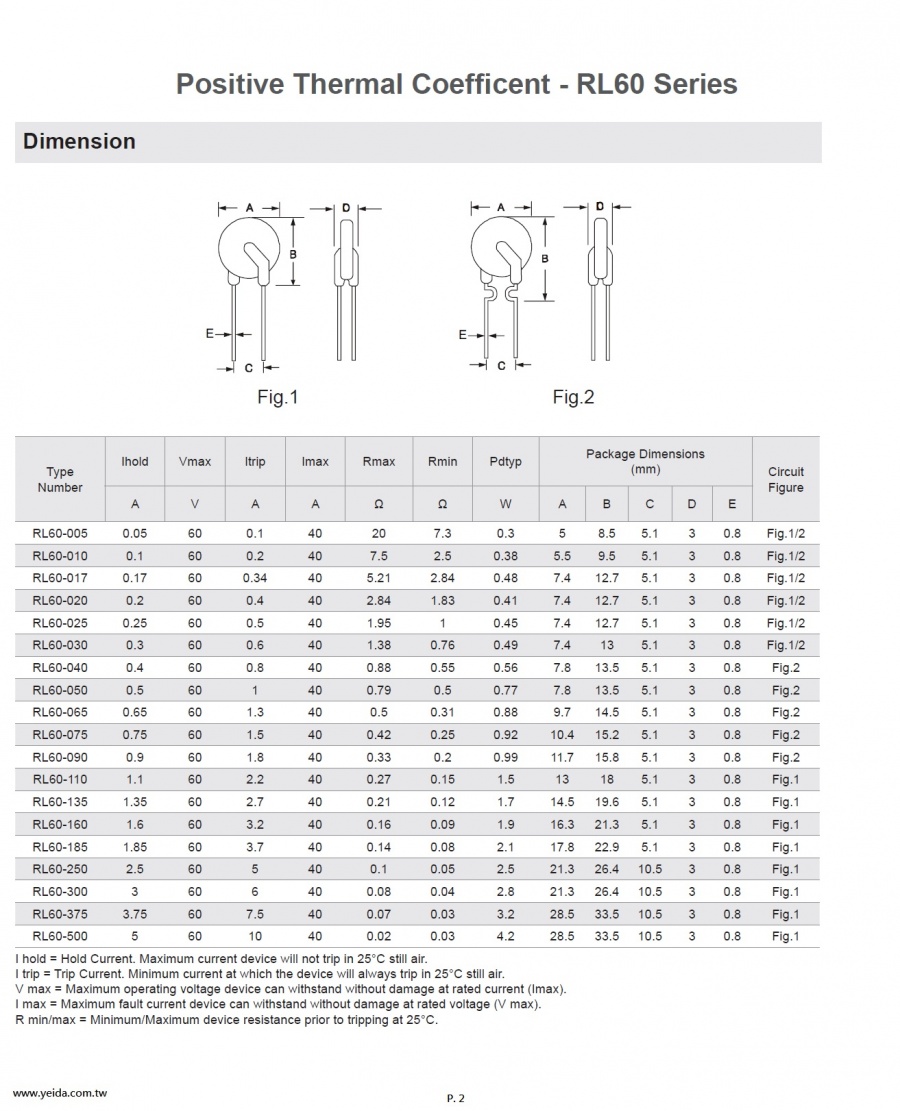

    Positive Thermal Coefficent - RL60 Series

    Features

    1. I(hold):005~500mA
    2. 60V Operating voltages
    3. Radial leaded devices.
    4. Very high voltage surge capabilities.
    5. Available in lead-free version.
    6. Fast time–to–trip
    7. RoHS compliant, Lead- Free and Halogen-Free

    Applications
    1. Overcurrent and overtemperature
    2. protection of automotive electronics
    3. Hard disk drives
    4. PC motherboards
    5. PC peripherals
    • Point-of-sale (POS) equipment
    • PCMCIA cards
    • USB port protection
    • HDMI 1.4 Source protection
    • Computers & peripherals
    • General Electronics

    Warehouse Storage Conditions of Products

    · Storage Conditions:
    1. Storage Temperature: -10°C~+40°C
    2. Relative Humidity:≤75%RH
    3. Keep away from corrosive atmosphere and sunlight.
    · Period of Storage: 1 year





    Ih(A) It(A) Vmax(V) Imax(A) Pdmax(W) Rmin(Ω) R1max(Ω) Package
    RL72-020 0.2 0.4 75 40 0.52 1.5 4.52 RL72
    RL72-025 0.25 0.5 75 40 0.52 1 3 RL72
    RL72-030 0.3 0.6 75 40 0.59 0.76 2.13 RL72
    RL72-040 0.4 0.8 75 40 0.66 0.52 1.29 RL72
    RL72-050 0.5 1 75 40 0.8 0.41 1.17 RL72
    RL72-065 0.65 1.3 75 40 0.9 0.27 0.72 RL72
    RL72-075 0.75 1.5 75 40 0.95 0.18 0.6 RL72
    RL72-090 0.9 1.8 75 40 1 0.14 0.47 RL72
    RL72-110 1.1 2.2 75 40 1.51 0.14 0.38 RL72
    RL72-135 1.35 2.7 75 40 1.71 0.12 0.3 RL72
    RL72-160 1.6 3.2 75 40 1.98 0.09 0.22 RL72
    RL72-185 1.85 3.7 75 40 2.1 0.08 0.19 RL72
    RL72-250 2.50 5 75 40 2.5 0.05 0.13 RL72
    RL72-300 3.0 6 75 40 2.8 0.04 0.1 RL72
    RL72-375 3.75 7.5 75 40 3.2 0.03 0.08 RL72
    RL90-200 0.2 0.4 99 20 1.7 1 2.5 RL90
    RL90-250 0.25 0.5 99 20 1.75 0.8 2 RL90
    RL90-350 0.35 0.75 99 20 1.8 0.6 1.2 RL90
    RL90-550 0.55 1.1 99 20 2 0.35 0.9 RL90
    RL90-750 0.75 1.5 99 20 2.5 0.2 0.6 RL90
    RL90-900 0.9 1.8 99 20 3 0.1 0.5 RL90
    RL135-050 0.05 0.12 135 1 0.52 18.5 65 RL135
    RL135-080 0.08 0.19 135 1.2 0.52 7.4 26 RL135
    RL135-100 0.1 0.2 135 2 0.59 5.6 20.1 RL135
    RL135-120 0.12 0.3 135 1.2 0.66 3 12 RL135
    RL135-150 0.15 0.3 135 2 0.8 2.3 10.7 RL135
    RL135-160 0.16 0.37 135 2 0.9 2.5 7.8 RL135
    RL135-170 0.17 0.34 135 2 0.95 2 10.8 RL135
    RL135-200 0.2 0.4 135 2 1 1.7 6.1 RL135
