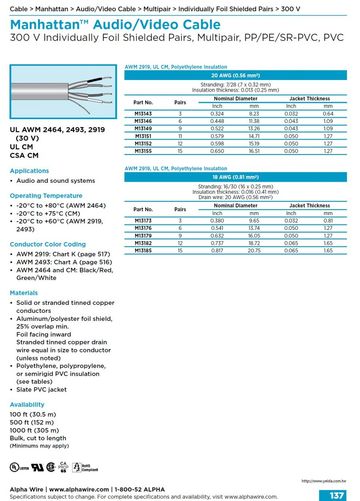

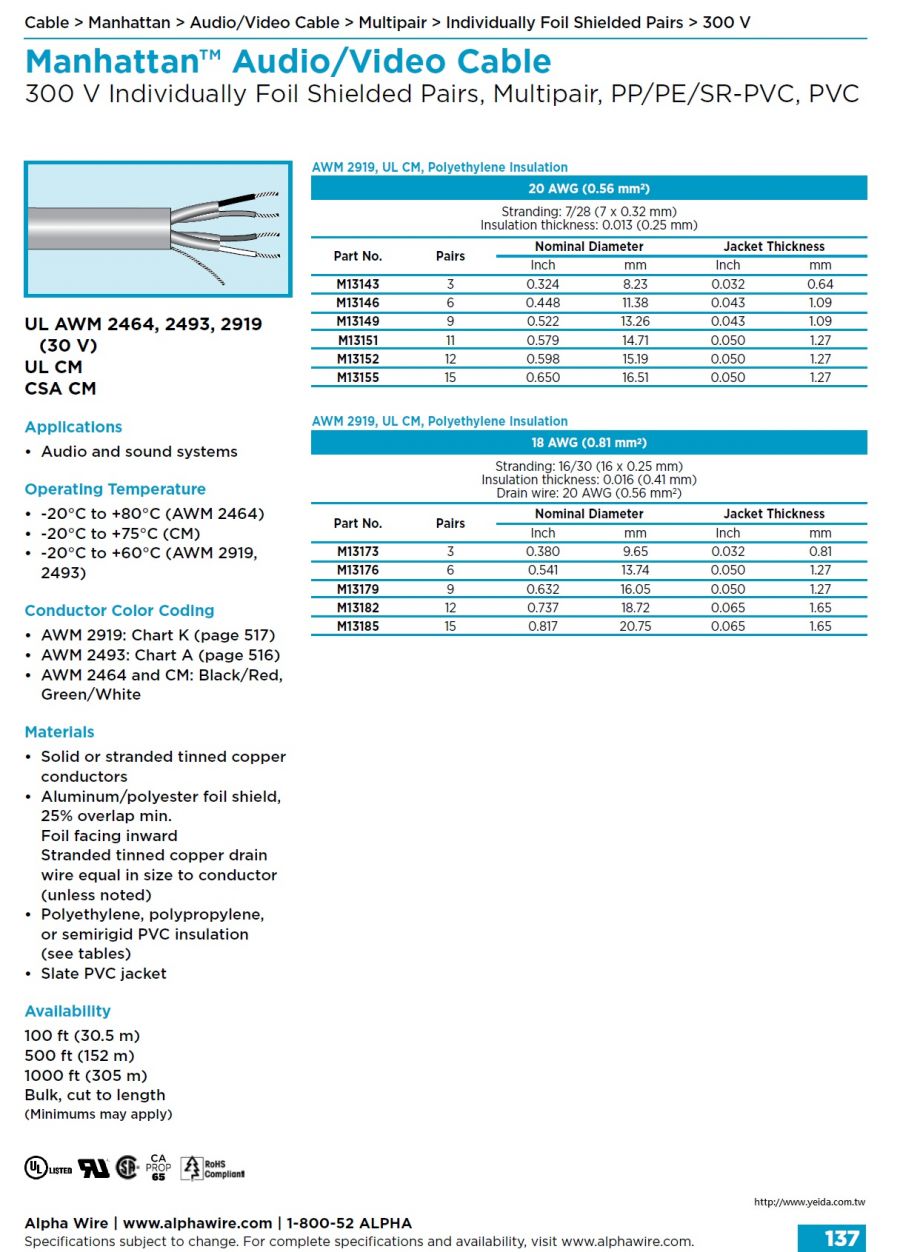

Manhattan™ Audio/Video Cable
300 V Individually Foil Shielded Pairs, Multipair, PP/PE/SR-PVC, PVC
UL AWM 2464, 2493, 2919 (30 V)
UL CM CSA CM
　

Applications
• Audio and sound systems
Operating Temperature
• -20°C to +80°C (AWM 2464)
• -20°C to +75°C (CM)
• -20°C to +60°C (AWM 2919, 2493)
Conductor Color Coding
• AWM 2919: Chart K (page 517)
• AWM 2493: Chart A (page 516)
• AWM 2464 and CM: Black/Red, Green/White
Materials
• Solid or stranded tinned copper conductors
• Aluminum/polyester foil shield, 25% overlap min. Foil facing inward
     Stranded tinned copper drain wire equal in size to conductor (unless noted)
• Polyethylene, polypropylene, or semirigid PVC insulation (see tables)
• Slate PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)

可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。
