ALPHA- Manhattan™ Audio/Video Cable (Awg 20 ) 300 V Foil Shield, Multiconductor, PP, PVC Miniature 影像音響儀表鋁箔隔離控制电缆

ALPHA-M14328

商品編號: ALPHA-M14328

ALPHA- Manhattan™ Audio/Video Cable (Awg 20 ) 300 V Foil Shield, Multiconductor, PP, PVC Miniature 影像音響儀表鋁箔隔離控制电缆

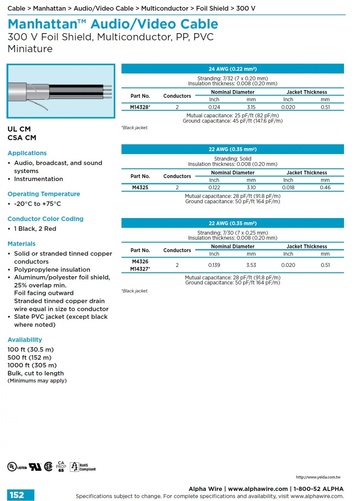

Manhattan™ Audio/Video Cable
300 V Foil Shield, Multiconductor, PP, PVC
Miniature
UL CM
CSA CM

Applications
• Audio, broadcast, and sound systems
• Instrumentation
Operating Temperature
• -20°C to +75°C
Conductor Color Coding
• 1 Black, 2 Red
Materials
• Solid or stranded tinned copper conductors
• Polypropylene insulation
• Aluminum/polyester foil shield, 25% overlap min. Foil facing outward
Stranded tinned copper drain wire equal in size to conductor
• Slate PVC jacket (except black where noted)
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)

可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

Cable Type	Cable Shielding	Cable Voltage	Cable AWG	NumberOf Elements	Insulation Material	CableJacket Material	CableJacket Diameter
M13574	Multi-Conductor	UNSHIELDED	300	16	4	PVC	PVC	0.371	CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2576, UL CM
M13582	Multi-Conductor	UNSHIELDED	300	14	2	PVC	PVC	0.34	CA Prop 65, REACH Regulation (EC 1907/2006), UL AWM 2463, UL CL2
M13584	Multi-Conductor	UNSHIELDED	300	14	4	PVC	PVC	0.397	CA Prop 65, REACH Regulation (EC 1907/2006), UL AWM 2463, UL CL3
M13590	Multi-Conductor	UNSHIELDED	300	12	2	PVC	PVC	0.388
M14327	Multi-Conductor	FOIL	300	22	2	SR-PVC	PVC	0.139	CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL CM
M14328	Multi-Conductor	FOIL	300	24	2	SR-PVC	PVC	0.127
M14429	Multi-Conductor	FOIL	300	20	2	PVC	PVC	0.199	CA Prop 65, CSA CMG, CSA FT4, REACH Regulation (EC 1907/2006), UL AWM 2464, UL CMG
M14461	Conductor	BRAID	300	22	2	PVC	PVC	0.195	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2095, UL CMG
M14462	Conductor	BRAID	300	22	2	PVC	PVC	0.205
M14474	Multi-Conductor	Foil/Unshielded	300	22	2	PP	PVC	0.215	CA Prop 65, CSA - C(UL) TYPE CM, UL AWM 2717, UL CM
M14475	Multi-Conductor	FOIL	200	22	3	PVC	PVC	0.145	CA Prop 65, UL CM
M14476	Multi-Conductor	Foil/Unshielded	200	22	4	PP	PVC	0.205	CA Prop 65
M14477	Multi-Conductor	Foil/Unshielded	300	24+22	6	PVC	PVC	0.236	CA Prop 65, UL CM
M14478	Multi-Conductor	Foil/Unshielded	350	24+22	8	PP	PVC	0.29	CA Prop 65
M14604	Multi-Pair	UNSHIELDED	300	20	4	PP	PVC	0.365	CA Prop 65, CSA CMG, UL CMG, UL VW-1

	M4325	Multi-Conductor	FOIL	300	22	2	SR-PVC	PVC	0.125	CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL CM
	M4326	Multi-Conductor	FOIL	300	22	2	SR-PVC	PVC	0.139
