    首頁 > > ALPHA-Manhattan™ Audio/Video Unshielded Cable 影音儀表傳輸用線

    ALPHA- Manhattan™ Audio/Video Cable (Awg20, 22) 300 V Unshielded, Multiconductor, SR-PVC, PVC 影像音響控制电缆

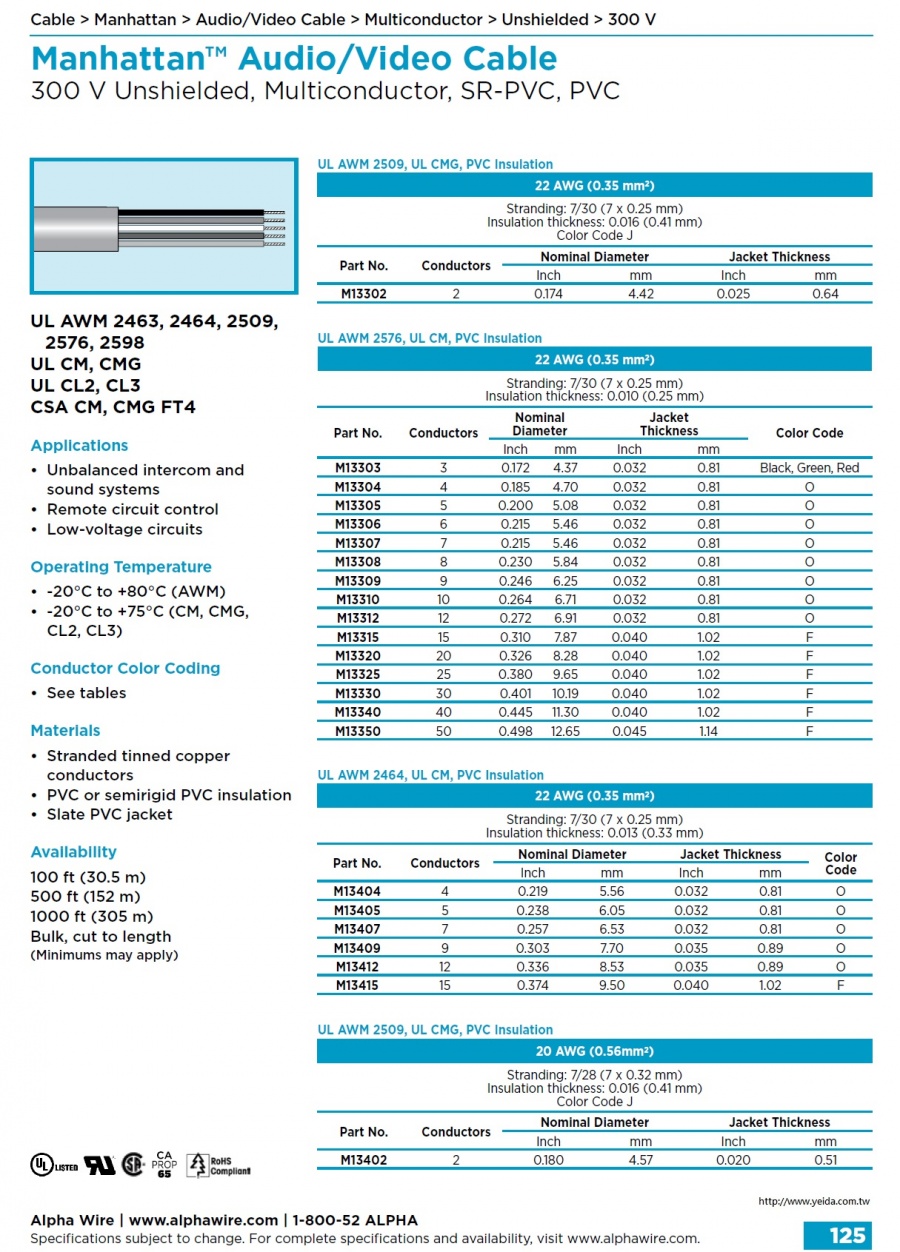

    看原圖
    ALPHA-M13302

    商品編號: ALPHA-M13302

    ALPHA- Manhattan™ Audio/Video Cable (Awg20, 22) 300 V Unshielded, Multiconductor, SR-PVC, PVC 影像音響控制电缆



    Manhattan™ Audio/Video Cable
    300 V Unshielded, Multiconductor, SR-PVC, PVC
    UL AWM 2463, 2464, 2509, 2576, 2598
    UL CM, CMG UL CL2, CL3
    CSA CM, CMG FT4


    Applications
    • Unbalanced intercom and sound systems
    • Remote circuit control
    • Low-voltage circuits
    Operating Temperature
    • -20°C to +80°C (AWM)
    • -20°C to +75°C (CM, CMG, CL2, CL3)
    Conductor Color Coding
    • See tables
    Materials
    • Stranded tinned copper conductors
    • PVC or semirigid PVC insulation
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)





    可靠、持久耐用的电缆是任何电气系统的核心,Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史,是深受信赖的可靠电缆。无论您需要的是一根电源线,还是在噪音环境中保持音视频信号完整性的电缆,您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室,我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

    Part # Type Shielding Voltage  AWG # of Elements  Insulation Material Jacket Material



    Jacket Diameter
      M13302 Multi-Conductor UNSHIELDED 300 22 2 PVC PVC 0.174 CA Prop 65, CSA CMG, CSA FT4, REACH Regulation (EC 1907/2006), UL AWM 2509, UL CMG
      M13303 Multi-Conductor UNSHIELDED 300 22 3 SR-PVC PVC 0.172 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2576, UL CM
      M13304 Multi-Conductor UNSHIELDED 300 22 4 SR-PVC PVC 0.185
      M13305 Multi-Conductor UNSHIELDED 300 22 5 SR-PVC PVC 0.2
      M13306 Multi-Conductor UNSHIELDED 300 22 6 SR-PVC PVC 0.215
      M13307 Multi-Conductor UNSHIELDED 300 22 7 SR-PVC PVC 0.215
      M13308 Multi-Conductor UNSHIELDED 300 22 8 SR-PVC PVC 0.23
      M13309 Multi-Conductor UNSHIELDED 300 22 9 SR-PVC PVC 0.246
      M13310 Multi-Conductor UNSHIELDED 300 22 10 SR-PVC PVC 0.264
      M13312 Multi-Conductor UNSHIELDED 300 22 12 SR-PVC PVC 0.272
      M13315 Multi-Conductor UNSHIELDED 300 22 15 SR-PVC PVC 0.31
      M13320 Multi-Conductor UNSHIELDED 300 22 20 SR-PVC PVC 0.326
      M13325 Multi-Conductor UNSHIELDED 300 22 25 SR-PVC PVC 0.38
      M13330 Multi-Conductor UNSHIELDED 300 22 30 SR-PVC PVC 0.401
      M13340 Multi-Conductor UNSHIELDED 300 22 40 SR-PVC PVC 0.445
      M13350 Multi-Conductor UNSHIELDED 300 22 50 SR-PVC PVC 0.498
      M13402 Multi-Conductor UNSHIELDED 300 20 2 PVC PVC 0.18 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2509, UL CMG
      M13404 Multi-Conductor UNSHIELDED 300 20 4 PVC PVC 0.219 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2464, UL CM
      M13405 Multi-Conductor UNSHIELDED 300 20 5 PVC PVC 0.238
      M13407 Multi-Conductor UNSHIELDED 300 20 7 PVC PVC 0.257
      M13409 Multi-Conductor UNSHIELDED 300 20 9 PVC PVC 0.303
      M13412 Multi-Conductor UNSHIELDED 300 20 12 PVC PVC 0.336
      M13415 Multi-Conductor UNSHIELDED 300 20 15 PVC PVC 0.374
