    首頁 > > ALPHA-Manhattan™ Audio/Video Unshielded Cable 影音儀表傳輸用線

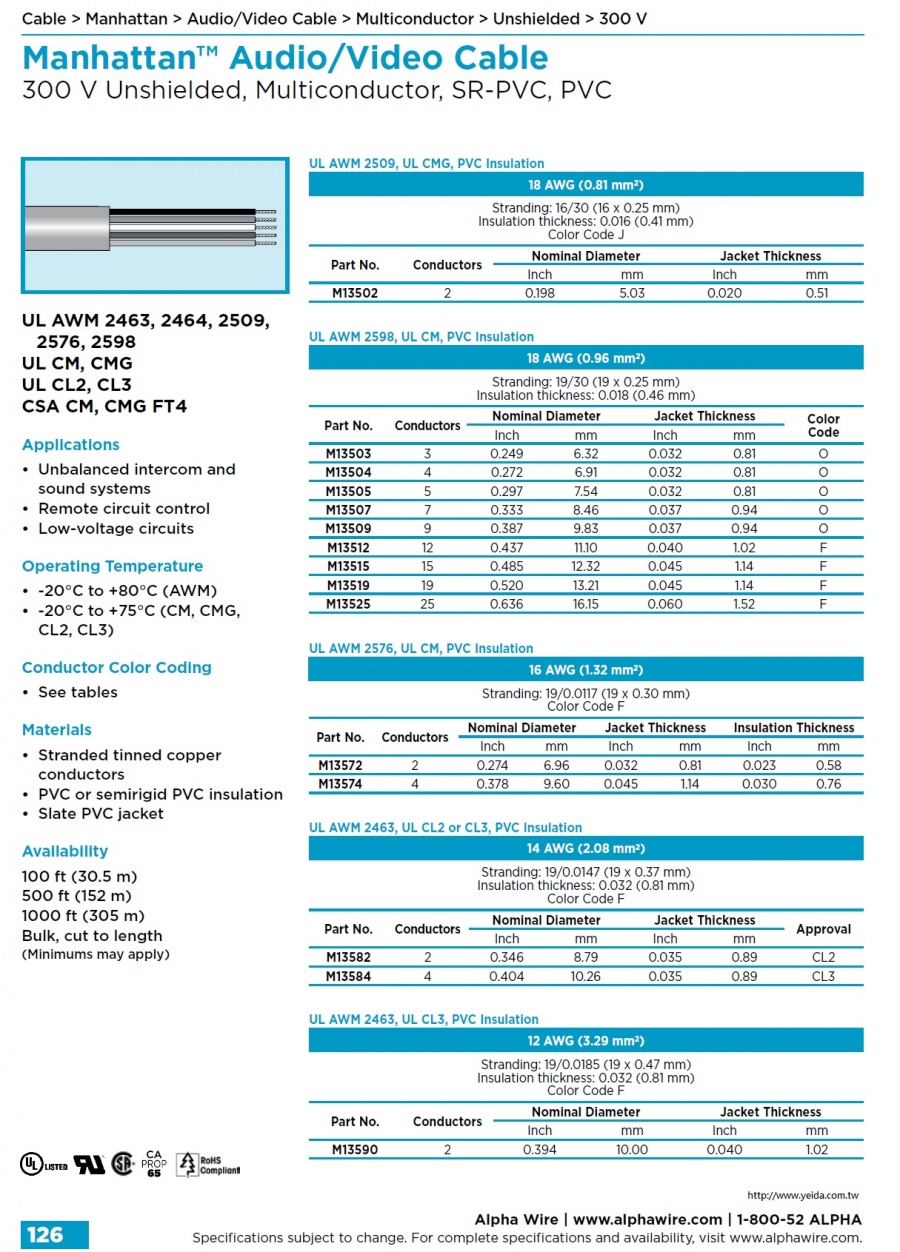

    ALPHA- Manhattan™ Audio/Video Cable (Awg18, 16, 14, 12 ) 300 V Unshielded, Multiconductor, SR-PVC, PVC 影像音響控制电缆
    看原圖
    		ALPHA-M13502

    商品編號: ALPHA-M13502

    ALPHA- Manhattan™ Audio/Video Cable (Awg18, 16, 14, 12 ) 300 V Unshielded, Multiconductor, SR-PVC, PVC 影像音響控制电缆


    Manhattan™ Audio/Video Cable
    300 V Unshielded, Multiconductor, SR-PVC, PVC
    UL AWM 2463, 2464, 2509, 2576, 2598
    UL CM, CMG UL CL2, CL3 CSA CM, CMG FT4
    　

    Applications
    • Unbalanced intercom and sound systems
    • Remote circuit control
    • Low-voltage circuits
    Operating Temperature
    • -20°C to +80°C (AWM)
    • -20°C to +75°C (CM, CMG, CL2, CL3)
    Conductor Color Coding
    • See tables
    Materials
    • Stranded tinned copper conductors
    • PVC or semirigid PVC insulation
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)

    可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。



    Part # Type Shielding Voltage　 AWG # of Elements　 Insulation Material Jacket Material



    		 Jacket Diameter
      M13502 Multi-Conductor UNSHIELDED 300 18 2 PVC PVC 0.198 CA Prop 65, CSA CMG, REACH Regulation (EC 1907/2006), UL AWM 2509, UL CMG
      M13503 Multi-Conductor UNSHIELDED 300 18 3 PVC PVC 0.249 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2598, UL CM
      M13504 Multi-Conductor UNSHIELDED 300 18 4 PVC PVC 0.272 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2598, UL CM
      M13505 Multi-Conductor UNSHIELDED 300 18 5 PVC PVC 0.297 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2598, UL CM
      M13507 Multi-Conductor UNSHIELDED 300 18 7 PVC PVC 0.333 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2598, UL CM
      M13509 Multi-Conductor UNSHIELDED 300 18 9 PVC PVC 0.387 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2598, UL CM
      M13512 Multi-Conductor UNSHIELDED 300 18 12 PVC PVC 0.437 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2598, UL CM
      M13515 Multi-Conductor UNSHIELDED 300 18 15 PVC PVC 0.485 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2598, UL CM
      M13519 Multi-Conductor UNSHIELDED 300 18 19 PVC PVC 0.52 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2598, UL CM
      M13525 Multi-Conductor UNSHIELDED 300 18 25 PVC PVC 0.636 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2598, UL CM
      M13572 Multi-Conductor UNSHIELDED 300 16 2 PVC PVC 0.268 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2576, UL CM
      M13574 Multi-Conductor UNSHIELDED 300 16 4 PVC PVC 0.371 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2576, UL CM
      M13582 Multi-Conductor UNSHIELDED 300 14 2 PVC PVC 0.34 CA Prop 65, REACH Regulation (EC 1907/2006), UL AWM 2463, UL CL2
      M13584 Multi-Conductor UNSHIELDED 300 14 4 PVC PVC 0.397 CA Prop 65, REACH Regulation (EC 1907/2006), UL AWM 2463, UL CL3
      M13590 Multi-Conductor UNSHIELDED 300 12 2 PVC PVC 0.388 CA Prop 65, REACH Regulation (EC 1907/2006), UL AWM 2463, UL CL3
