商品編號: ALPHA-M9180012
ALPHA- Manhattan™ Thermocouple Grade Type(J, K, T) Duplex Parallel: Glass Braid - Glass Braid Jacket 玻璃絲編織耐熱素線級熱電偶補償導線

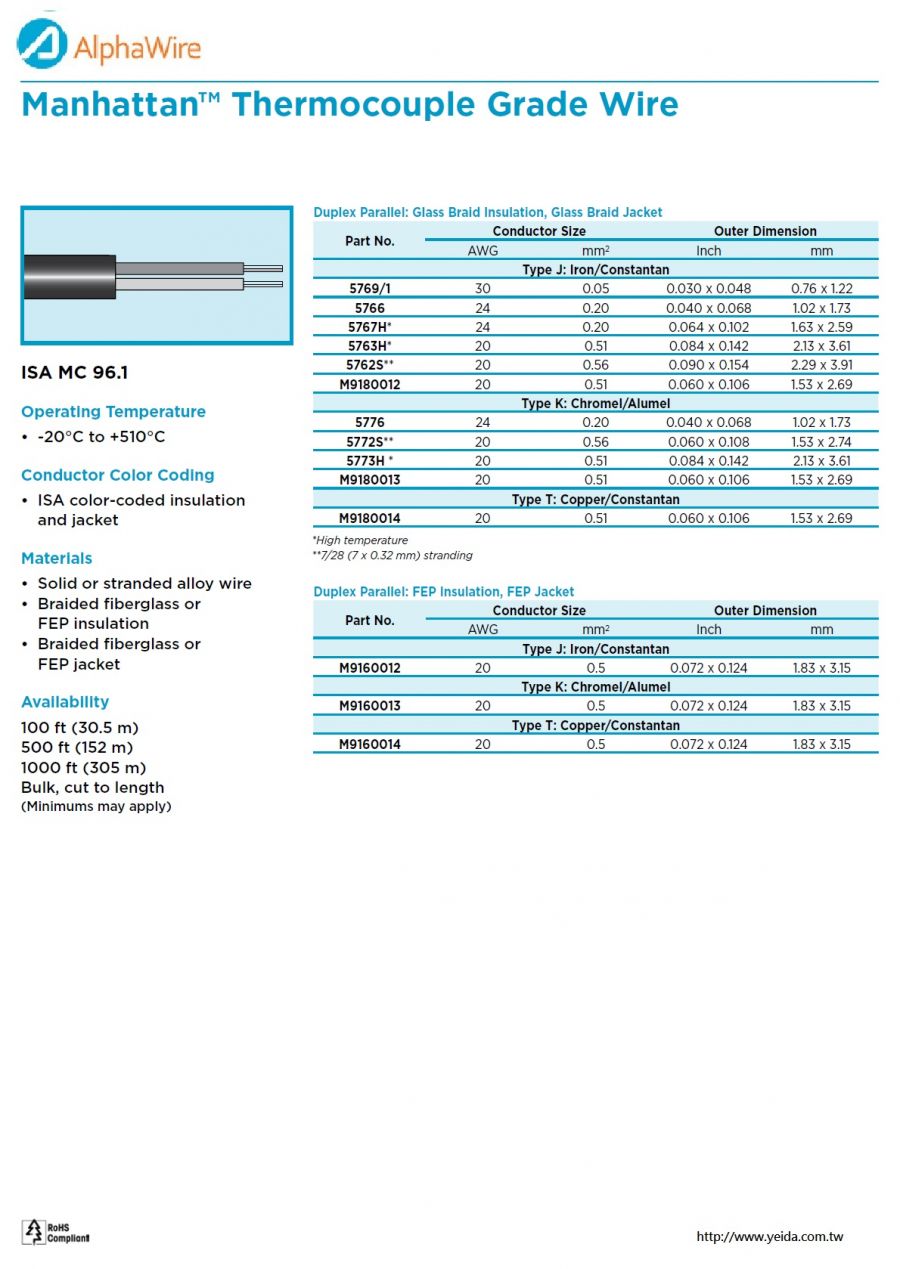

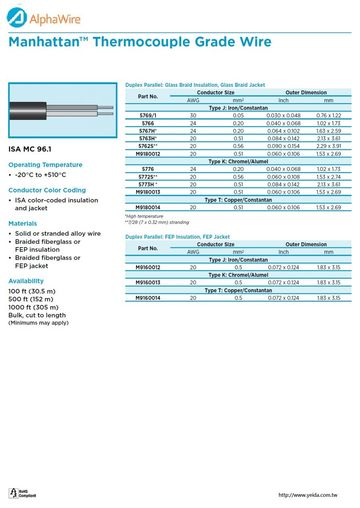

Manhattan™ Thermocouple Grade Wire
ISA MC 96.1
Operating Temperature
• -20°C to +510°C
Conductor Color Coding
• ISA color-coded insulation and jacket
Materials
• Solid or stranded alloy wire
• Braided fiberglass or FEP insulation
• Braided fiberglass or FEP jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)
|
|
|
|
|
You can find the perfect thermocouple cable based on conductor combinations JX, KX, EX, and SX, as well as insulations suited for applications up to 649°C. Count on Manhattan thermocouple cables for quality and accurate temperature measurement.
您可以根据导线组合 JX、KX、EX 和 SX 找到理想的热电偶电缆以及高达 649°C 应用的绝缘。若要获得精准品质的温度测量,请信赖 Manhattan 热电偶电缆
|
|
|
