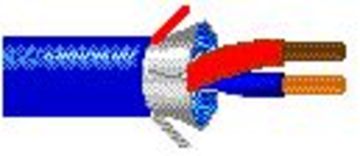

    3113A Paired - Thermocouple Extension Cable(TX_-1P
    看原圖
    		Belden-3113A

    商品編號: Belden-3113A

    3113A Paired - Thermocouple Extension Cable(TX_-1P awg 20 1對 T Type     熱偶補償導線

    DESCRIPTION:
    20 AWG pairs solid conductors, PVC insulation, overall Beldfoil® shield (100% coverage), PVC jacket.


    PHYSICAL CHARACTERISTICS :


    CONDUCTOR :
    Number of Pairs: 1
    Number of Conductors: 1
    Total Number of Conductors: 3
    AWG: 20
    Multi-Pairs/Conductors:

    Number of Pairs/Conductors AWG Stranding Conductor Material Conductor Diameter (in.)
    1 Pair 20 Solid Copper & Constantan
    1 Communication Wire 22 7x30 BC - Bare Copper


    Stranding: Solid, 7x30
    Conductor Material: Copper & Constantan, BC - Bare Copper

    INSULATION :
    Insulation Material: PVC - Polyvinyl Chloride
    Nom. Insulation Wall Thickness: .016 in.
    Lay Length: 2.0 in.
    Twists/ft.: 6.0
    Pair Color Code Chart:

    Number Color
    1 Blue & Red



    OVERALL CABLING :
    Overall Cabling Lay Length: 2.5 in.

    OUTER SHIELD :
    Outer Shield Material Trade Name: Beldfoil®
    Outer Shield Type: Tape
    Outer Shield Material: Aluminum Foil-Polyester Tape
    Outer Shield %Coverage: 100 %

    OUTER SHIELD DRAIN WIRE :
    Outer Shield Drain Wire AWG: 22
    Outer Shield Drain Wire Stranding: 7x28
    Outer Shield Drain Wire Conductor Material: TC - Tinned Copper

    OUTER JACKET :

    Outer Jacket Material: PVC - Polyvinyl Chloride
    Outer Jacket Ripcord: Yes

    OVERALL NOMINAL DIAMETER :
    Overall Nominal Diameter: .206 in.
    MECHANICAL CHARACTERISTICS :

    Operating Temperature Range: -30°C To +105°C
    Non-UL Temperature Rating: 105°C
    Bulk Cable Weight: 25 lbs/1000 ft.
    Max. Recommended Pulling Tension: 40 lbs.
    Min. Bend Radius (Install): 2.2 in.
    APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :


    APPLICABLE STANDARDS :
    NEC/(UL) Specification: CMG, PLTC, ITC
    CEC/C(UL) Specification: CMG
    IEEE Specification: 1202
    EU CE Mark (Y/N): Yes
    EU RoHS Compliant (Y/N): Yes
    EU RoHS Compliance Date (mm/dd/yyyy):: 04/01/2005
    ANSI Specification: MC 96.1-1982 Type TX

    FLAME TEST :
    UL Flame Test: UL1685 FT4 Loading
    CSA Flame Test: FT4
    ICEA Flame Test: T-29-520

    PLENUM/NON-PLENUM :
    Plenum (Y/N): N
    ELECTRICAL CHARACTERISTICS :

    Nominal Outer Shield DC Resistance @ 20 Deg. C: 6.8 Ω/1000 ft
    Max. Operating Voltage - Other: 300 V RMS
    PUT-UPS AND COLORS:

    Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
    3113A 0135000 1 FS PR #20 PVC TX 5000 115 BLUE, DARK C Z
