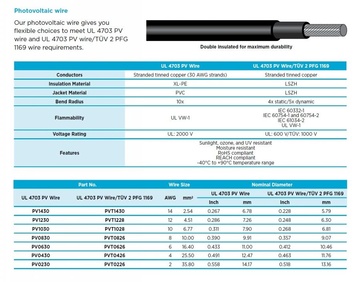

    ALPHA-PV0430 Awg-4 2,000V XLPE UL4703 CSA RW 90, REACH Regulation (EC 1907/2006), ROHS , UL PV WIRE, SUN RES, VW-1 XLPE太陽能光伏電線
    看原圖
    		ALPHA-PV0430

    商品編號: ALPHA-PV0430

    ALPHA-PV0430 Awg-4 2,000V XLPE UL4703 CSA RW 90, REACH Regulation (EC 1907/2006), ROHS , UL PV WIRE, SUN RES, VW-1 XLPE太陽能光伏電線

    特点 ：

    • 防日晒、臭氧和紫外线
    • 防潮
    • 符合 RoHS （《电气、电子设备中限制使用某些有害物质指令》）
    • 遵守 REACH
    • 温度范围：-40°C 到 +90°C

    Part # Voltage AWG Stranding Insulation Thickness Insulation Diameter Insulation Material Applicable Specifications
    PV0430 2000 4 420/30 0.078 0.491 XLPE REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1

      Part # Voltage AWG Stranding Insulation Thickness Nominal Diameter Insulation Material Applicable Specifications
    AlphaPV0230 2000  2  665/30  0.078  0.558  XLPE  REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    Alpha PV0430 2000  4  420/30  0.078  0.491  XLPE  REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    AlphaPV0630 2000  6  266/30  0.078  0.433  XLPE  REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    AlphaPV0830 2000  8  168/30  0.078  0_390  XLPE  REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL -40C, UL PV WIRE, UL SUN RES, UL VW-1
    AlphaPV1030 2000  10  105/30  0.063  0.311  XLPE  CSA RW 90, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL PV WIRE, UL SUN RES, UL VW-1
    AlphaPV1230 2000  12  65/30  0.063  0.286  XLPE  CSA RW 90, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL PV WIRE, UL SUN RES, UL VW-1
    Alpha PV1430 2000  14  41/30  0.063  0.267  XLPE  CSA RW 90, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL PV WIRE, UL SUN RES, UL VW-1


    AlphaPV0230, Alpha PV0430, AlphaPV0630, AlphaPV0830, AlphaPV1030, AlphaPV1230, Alpha PV1430
