    ALPHA SPM1203CY Awg12 x 3C BRAID Shielding PVC/NYLON 1000V ROHS UL 1277 Type TC-ER, MTW, VW/1 Solar Cable PV 耐油抗日照可直埋銅網隔離太陽能光伏電纜
    看原圖
    		ALPHA-SPM1203CY

    商品編號: ALPHA-SPM1203CY

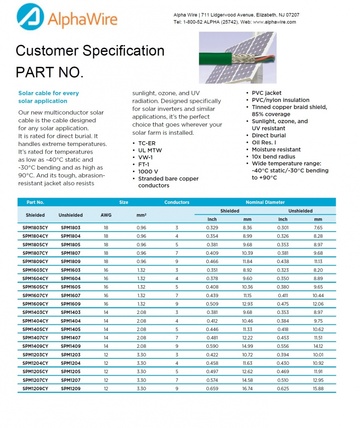

    ALPHA-SPM1203CY Awg12 x 3C BRAID Shielding PVC/NYLON 1000V ROHS UL 1277 Type TC-ER, MTW, VW/1 Solar Cable PV 耐油抗日照可直埋銅網隔離太陽能光伏電纜
    • Part # Type Shielding Voltage AWG # of Elements Jacket Diameter Applicable Specifications
      SPM1203CY Conductor BRAID 1000 12 3 0.422 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
      TC-ER
    • UL MTW
    • VW-1
    • 1000 V
    • Stranded bare copper conductors
    • PVC jacket
    • PVC/nylon insulation
    • Tinned copper braid shield, 85% coverage
    • Sunlight, ozone, and UV resistant
    • Direct burial
    • Oil Res. I
    • Moisture resistant
    • 10x bend radius
    • Wide temperature range: -40°C static/-30°C bending to +90°C
    Part #



    		 Type　 Shielding Voltage AWG # of Elements



    		 Jacket Diameter
    SPM1203 Conductor UNSHIELDED 1000 12 3 0.394 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1203CY Conductor BRAID 1000 12 3 0.422 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1204 Conductor UNSHIELDED 1000 12 4 0.43 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1204CY Conductor BRAID 1000 12 4 0.458 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1205 Conductor UNSHIELDED 1000 12 5 0.469 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1205CY Conductor BRAID 1000 12 5 0.497 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1207 Conductor UNSHIELDED 1000 12 7 0.51 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1207CY Conductor BRAID 1000 12 7 0.574 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1209 Conductor UNSHIELDED 1000 12 9 0.625 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1209CY Conductor BRAID 1000 12 9 0.659 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1403 Conductor UNSHIELDED 1000 14 3 0.353 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1403CY Conductor BRAID 1000 14 3 0.381 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1404 Conductor UNSHIELDED 1000 14 4 0.384 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1404CY Conductor BRAID 1000 14 4 0.412 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1405 Conductor UNSHIELDED 1000 14 5 0.418 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1405CY Conductor BRAID 1000 14 5 0.446 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1407 Conductor UNSHIELDED 1000 14 7 0.453 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1407CY Conductor BRAID 1000 14 7 0.481 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1409 Conductor UNSHIELDED 1000 14 9 0.556 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1
    SPM1409CY Conductor BRAID 1000 14 9 0.59 ROHS - RoHS Compliance, UL 1277 Type TC-ER, UL MTW, UL VW/1

    Alpha-SPM1203, Alpha-SPM1204, Alpha-SPM1205, Alpha-SPM1207, Alpha-SPM1209, Alpha-SPM1403, Alpha-SPM1404, Alpha-SPM1405, Alpha-SPM1407, Alpha-SPM1409,

    Alpha-SPM1203CY, Alpha-SPM1204CY, Alpha-SPM1205CY, Alpha-SPM1207CY, Alpha-SPM1209CY, Alpha-SPM1403CY, Alpha-SPM1404CY, Alpha-SPM1405CY, Alpha-SPM1407CY, Alpha-SPM1409CY,
