    ALPHA5022C Awg22 x 2Pair 300V CA Prop 65, CE, CSA CMG, FT4, UL 10002, UL 2464, CM, VW/1 Xtra-Guard® 1 高性能电缆
    看原圖

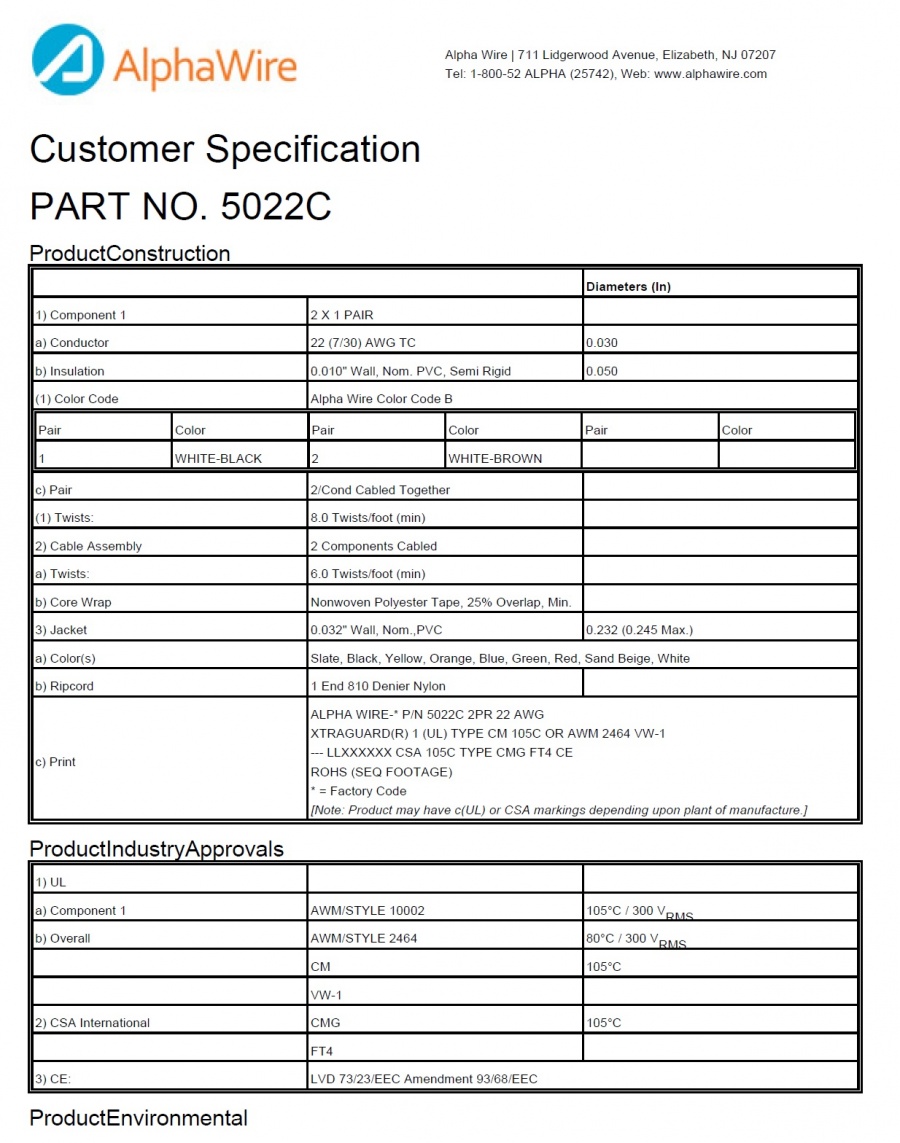

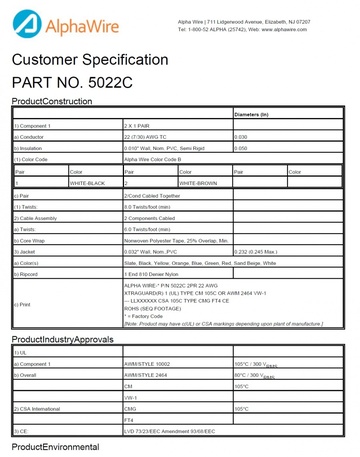

    		ALPHA-5022C


     商品編號: ALPHA-5022C , agent, distributor, 代理商, 經銷商,

    ALPHA 5022C Awg22 x 2Pair 300V CA Prop 65, CE, CSA CMG, FT4, UL 10002, UL 2464, CM, VW/1 Xtra Guard 1 高性能电缆

    Alpha5020/25C, Alpha5020/30C, Alpha5020/50C, Alpha5020C, Alpha5021C, Alpha5022C, Alpha5023C, Alpha5024C, Alpha5026C, Alpha5029/15C, Alpha5032C, Alpha5033C, Alpha5036C, Alpha5039C, Alpha5052C, Alpha5053C, Alpha5054C,

    部件号 Type Shielding Voltage AWG # of Elements Jacket Diameter Applicable Specifications
    alpha5022C Pair UNSHIELDED 300 22 2 0.232 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1

    Xtra-Guard® 1 - High performance in a tough PVC cable Ultraviolet LightEMI Noise

    • High-performance cable for general-purpose applications
    • Features a unique, premium-grade PVC insulation and jacket for easier routing of cable in small spaces
    • Provides resistance to oils per UL Oil Res I and Class 43
    • Designed for use in ambient temperatures up to 105°C
    • Provides exceptional protection against EMI interference when Supra-Shield is specified

    Diameters (In)
    1) Component 1 2 X 1 PAIR 　
    a) Conductor 22 (7/30) AWG TC 0.030
    b) Insulation 0.010" Wall, Nom. PVC, Semi Rigid 0.050
    (1) Color Code Alpha Wire Color Code B
    Pair Color Pair Color Pair Color
    1 WHITE-BLACK 2 WHITE-BROWN 　 　
    c) Pair 2/Cond Cabled Together 　
    (1) Twists: 8.0 Twists/foot (min) 　
    2) Cable Assembly 2 Components Cabled 　
    a) Twists: 6.0 Twists/foot (min) 　
    b) Core Wrap Nonwoven Polyester Tape, 25% Overlap, Min. 　
    3) Jacket 0.032" Wall, Nom.,PVC 0.232 (0.245 Max.)
    a) Color(s) Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
    b) Ripcord 1 End 810 Denier Nylon 　
    c) Print ALPHA WIRE-* P/N 5022C 2PR 22 AWG
    XTRAGUARD(R) 1 (UL) TYPE CM 105C OR AWM 2464 VW-1
    --- LLXXXXXX CSA 105C TYPE CMG FT4 CE
    ROHS (SEQ FOOTAGE)
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    ProductIndustryApprovals
    1) UL 　 　
    a) Component 1 AWM/STYLE 10002 105°C / 300 VRMS
    b) Overall AWM/STYLE 2464 80°C / 300 VRMS
    　 CM 105°C
    　 VW-1 　
    2) CSA International CMG 105°C
    　 FT4 　
    3) CE: LVD 73/23/EEC Amendment 93/68/EEC

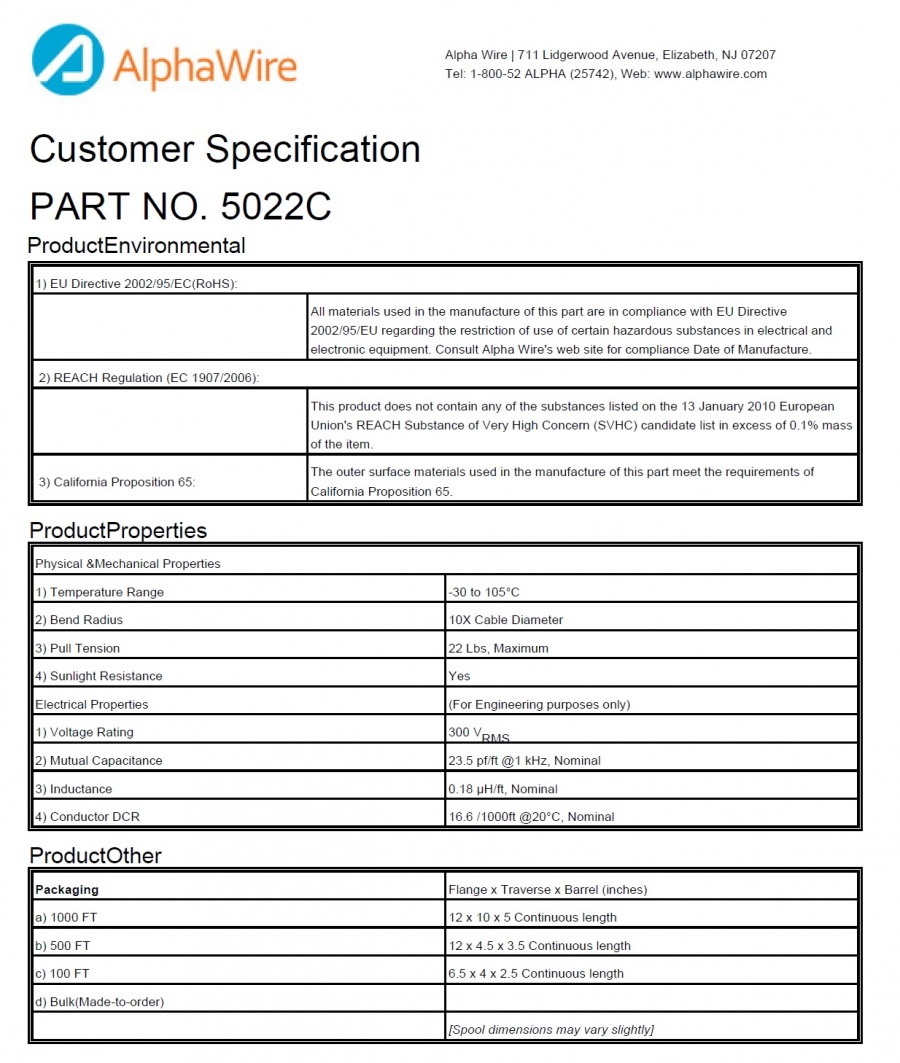

    ProductEnvironmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) REACH Regulation (EC 1907/2006):
    　 This product does not contain any of the substances listed on the 13 January 2010 European Union's REACH Substance of Very High Concern (SVHC) candidate list in excess of 0.1% mass of the item.
    3) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    ProductProperties
    Physical & Mechanical Properties
    1) Temperature Range -30 to 105°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 22 Lbs, Maximum
    4) Sunlight Resistance Yes
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 300 VRMS
    2) Mutual Capacitance 23.5 pf/ft @1 kHz, Nominal
    3) Inductance 0.18 µH/ft, Nominal
    4) Conductor DCR 16.6 Ω/1000ft @20°C, Nominal
    ProductOther
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 12 x 10 x 5 Continuous length
    b) 500 FT 12 x 4.5 x 3.5 Continuous length
    c) 100 FT 6.5 x 4 x 2.5 Continuous length
    d) Bulk(Made-to-order) 　
    　 [Spool dimensions may vary slightly]

    Xtra-Guard ® 1 – 坚韧的高性能聚氯乙烯电缆 Ultraviolet LightEMI Noise

    • 高性能电缆，适用于一般用途
    • 独特的优质聚氯乙烯绝缘层和护套，便于在狭窄空间布线
    • 耐油，符合 UL 耐油级别 I 和第 43 类
    • 可抵抗高达 105 摄氏度的环境温度
    • 与 Alpha高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性能
    符合性证明
    敬启者：
    Alpha Wire 部件号：5022C
    5022C ，符合RoHS标准，以 2005/8/1 的生产为开始
    兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。
    危险物质 最大控制值
    铅 按重量计算不得超过0.1% (1000 ppm)
    汞 按重量计算不得超过0.1% (1000 ppm)
    镉 按重量计算不得超过0.01% (100 ppm)
    六价镉 按重量计算不得超过0.1% (1000 ppm)
    聚溴联苯 (PBB) 按重量计算不得超过0.1% (1000 ppm)
    聚溴二苯醚 (PBDE) 　
    台卡二苯醚 按重量计算不得超过0.1% (1000 ppm)
    Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。
    Alpha Wire 公司授权代表签字：
    技术及质保部总监 Dave Watson 2012/1/28

    Part # Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Diameter
    5020/25C Conductor UNSHIELDED 300 24 25 0.332 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5020/30C Conductor UNSHIELDED 300 24 30 0.35 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5020/40C Conductor UNSHIELDED 300 24 40 0.39 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5020/50C Conductor UNSHIELDED 300 24 50 0.429 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5020C Conductor UNSHIELDED 300 24 10 0.244 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5021C Pair UNSHIELDED 300 22 1 0.168 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5022C Pair UNSHIELDED 300 22 2 0.232 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5023C Pair UNSHIELDED 300 22 3 0.245 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5024C Pair UNSHIELDED 300 22 4 0.267 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5025C Pair UNSHIELDED 300 22 5 0.291 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5026C Pair UNSHIELDED 300 22 6 0.316 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5029/15C Pair UNSHIELDED 300 22 15 0.447 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2464, UL CM, UL VW/1
    5032C Pair UNSHIELDED 300 18 2 0.327 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5033C Pair UNSHIELDED 300 18 3 0.348 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5036C Pair UNSHIELDED 300 18 6 0.46 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5039/12C Pair UNSHIELDED 300 18 12 0.648 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5039C Pair UNSHIELDED 300 18 9 0.541 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5052C Conductor UNSHIELDED 300 20 2 0.208 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5053C Conductor UNSHIELDED 300 20 3 0.219 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5054C Conductor UNSHIELDED 300 20 4 0.238 CA Prop 65, CE, CSA CMG, CSA FT4, UL - VW-1, UL AWM 1569, UL AWM 2464, UL CM
