商品編號: ALPHA-5932
ALPHA 5682 Xtra-Guard® 1, Awg28 to 24 Supra-Shield Foil/Braid, Multiconductor 300V UL CM, 2464 VW-1, CSA CMG FT4 多芯高性能鋁箔 銅網隔離控制电缆
Awg28: Alpha5932, Alpha5933, Alpha5934, Alpha5935, Alpha5936, Alpha5937,
Awg26: Alph5682, Alph5683, Alph5684, Alph5685, Alph5687, Alph5688, Alph5689,
Awg24: Alph5112C, Alph5113C, Alph5114C, Alph5116C, Alph5118C, Alph5120C, Alph5120/15C, Alph5120/20C, Alph5120/25C, Alph5120/30C, Alph5120/40C, Alph5120/50C,

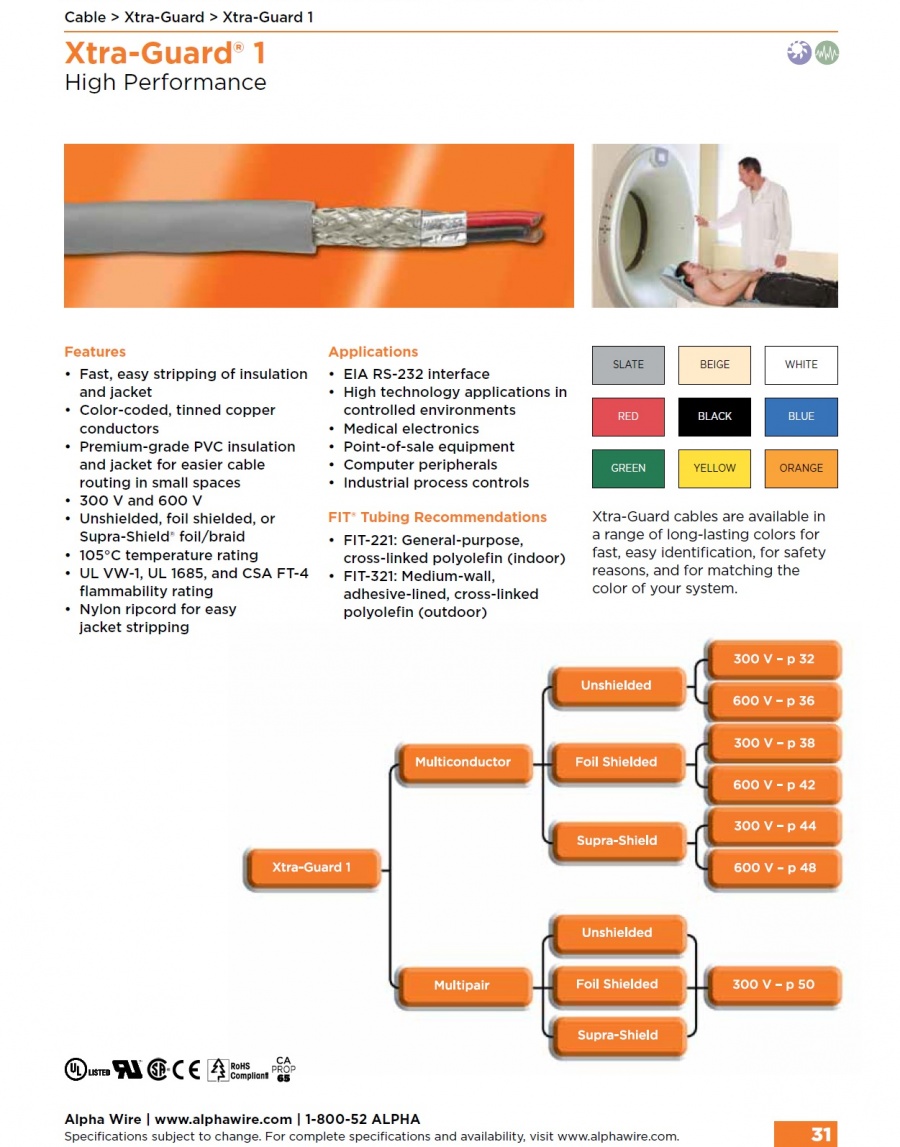

Xtra-Guard® 1 High Performance

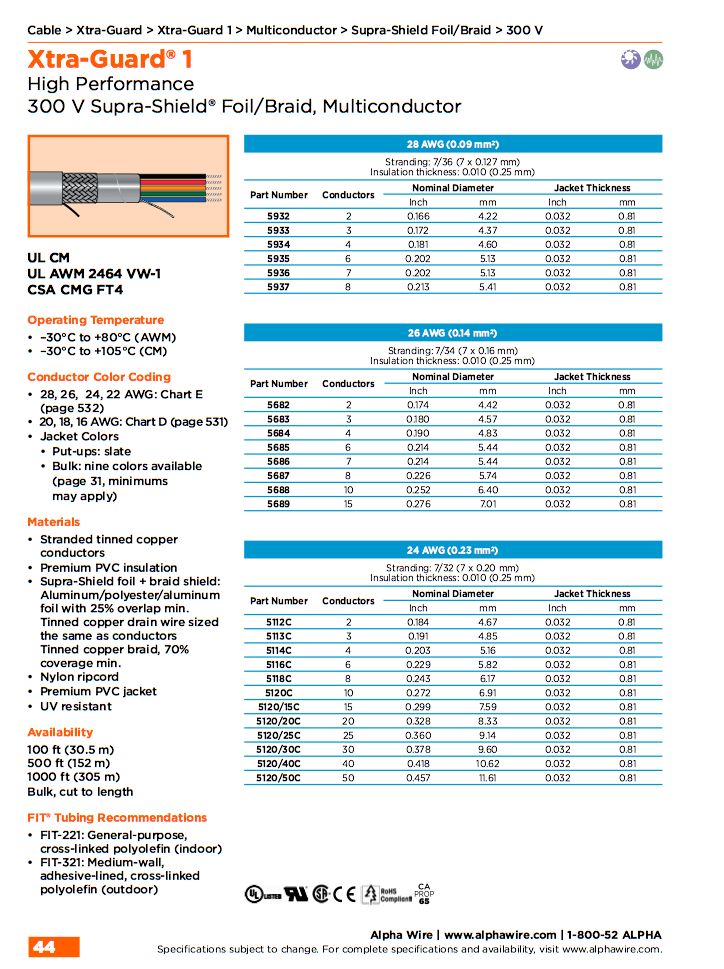

300 V Supra- Shield Foil/Brraid, Multiconductor
UL CM
UL AWM 2464 VW-1
CSA CMG FT4
Operating Temperature
• –30°C to +80°C (AWM)
• –30°C to +105°C (CM)
Conductor Color Coding
• 28, 26, 24, 22 AWG: Chart E (page 532)
• 20, 18, 16 AWG: Chart D (page 531)
•Jacket Colors
• Put-ups: slate
• Bulk: nine colors available
(page 31, minimums may apply)
Materials
• Stranded tinned copper conductors
• Premium PVC insulation
• Supra-Shield foil + braid shield:
Aluminum/polyester/aluminum foil with 25% min.
• Tinned copper drain wire sized
the same as conductors Tinned copper braid,
70% coverage min.
• Nylon ripcord
• Premium PVC jacket
• UV resistant
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-221: General-purpose,
cross-linked polyolefin (indoor)
• FIT-321: Medium-wall,
adhesive-lined, cross-linked polyolefin (outdoor)

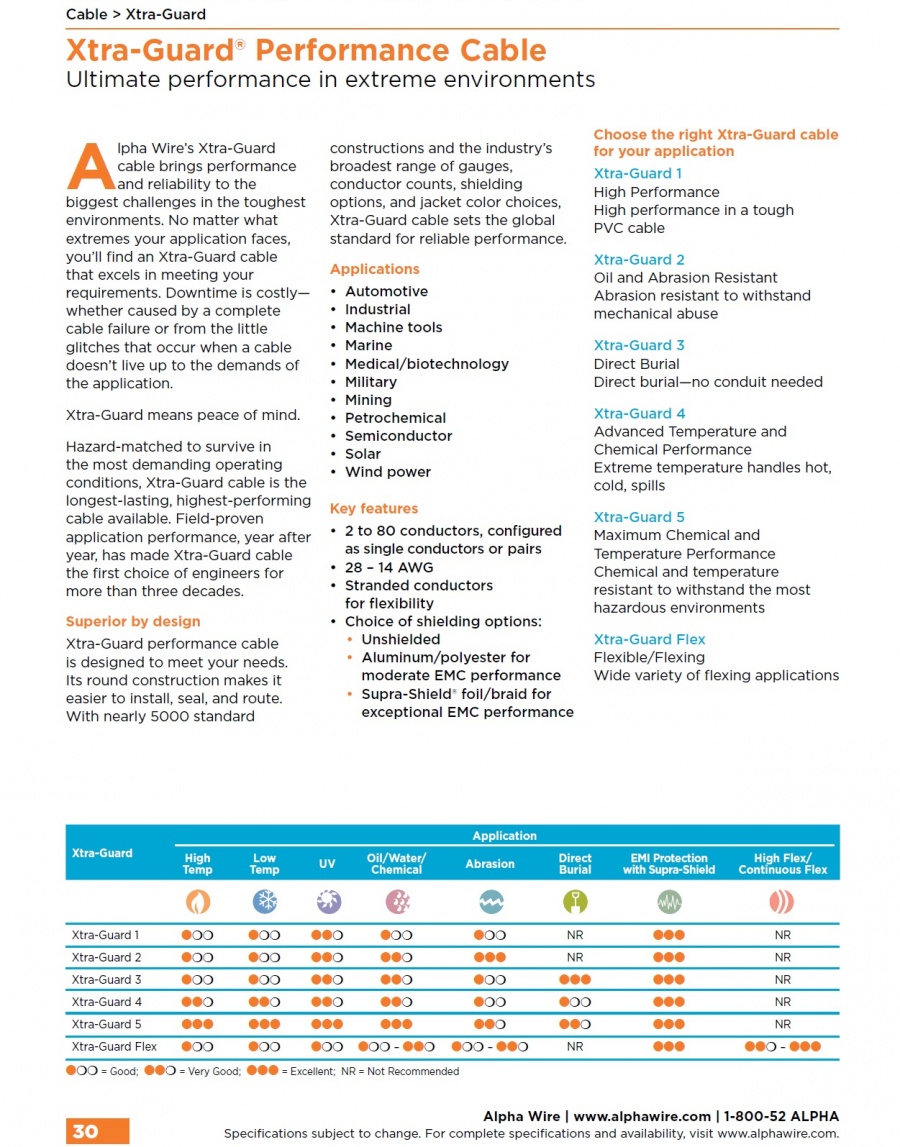

Xtra-Guard ® 1 – 堅韌的高性能聚氯乙烯电缆
Xtra-Guard® 高性能電纜
卓越性能，適用于各種極端環境
Alpha Wire 的 Xtra-Guard® 电缆拥有卓越可靠的性能，可接受最恶劣环境下的最大挑战。无论面对何种极端条件，您都可以找到超越要求的Xtra-Guard 电缆。毕竟停工代价昂贵，不管是因为电缆故障，还是因为电缆不能满足应用需求而导致
Xtra-Guard 让您高枕无忧。
Xtra-Guard 电缆能在多数极端环境下正常运作，是市场上最持久耐用、性能最高的电缆。Xtra-Guard 经多年实践验证，已成为工程师们三十多年来的首选。
| 适用领域： |
|
|
|
主要特点： |
- 汽車
- 工業
- 机床
- 船舶
- 醫療/生物技術
- 軍用
- 採礦
- 石化
- 太陽能
- 風力能源
|
|
|
|
- 2 到 80 根芯线，采用单芯或线对配置
- 28 – 14 AWG
- 多股绞合芯线，提高柔韌性
- 屏蔽选项可供选择
- 铝/聚酯屏蔽，提供普通抗电磁干扰
- Supra-Shield® 铝箔/编织层屏蔽，拥有出色的抗电磁干扰
|
