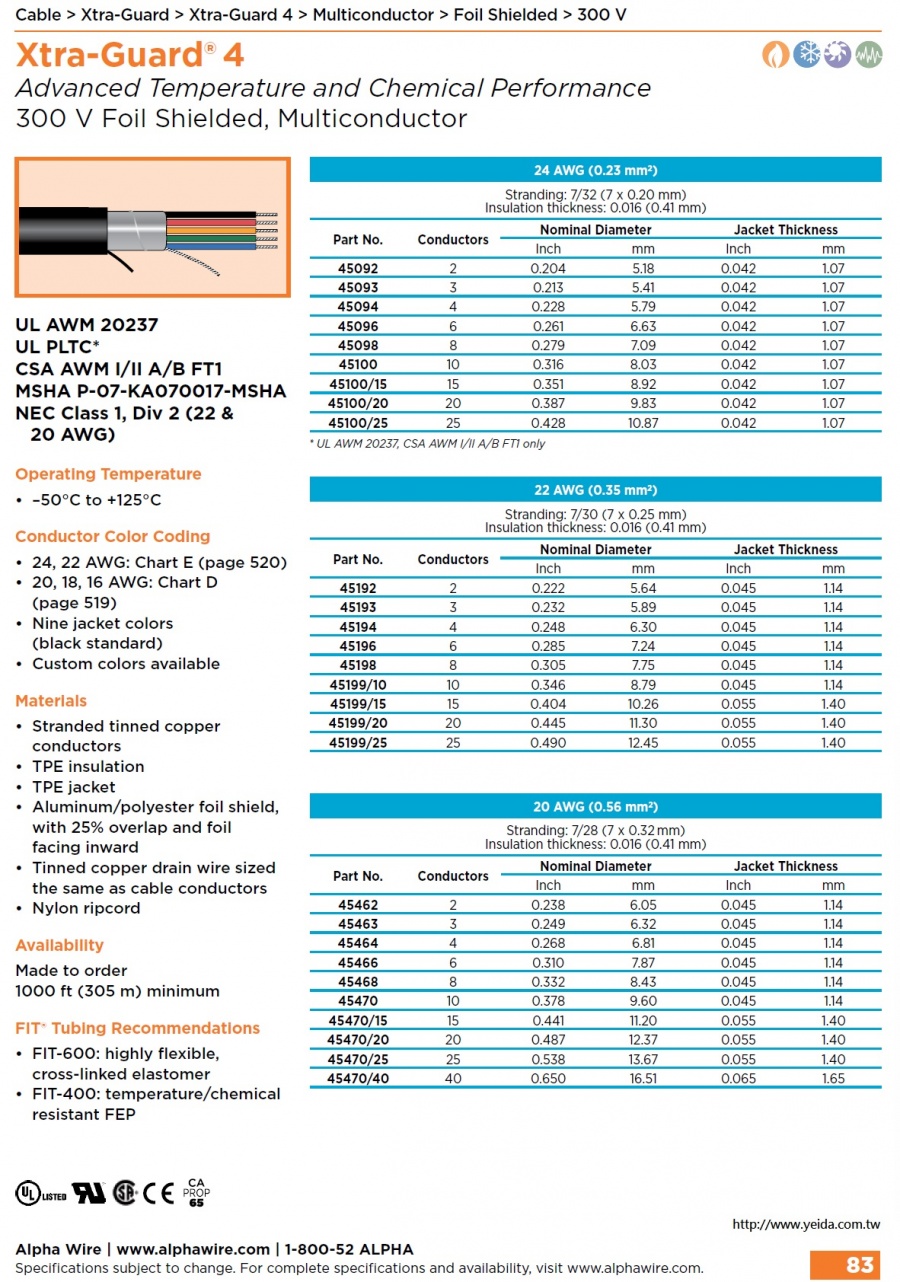

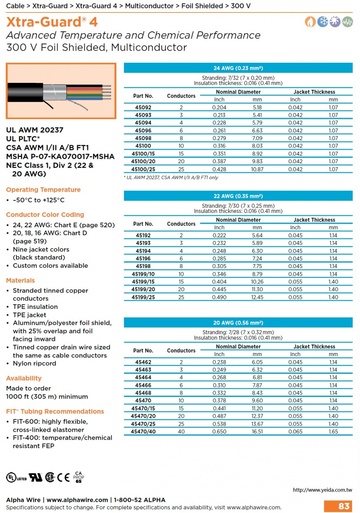

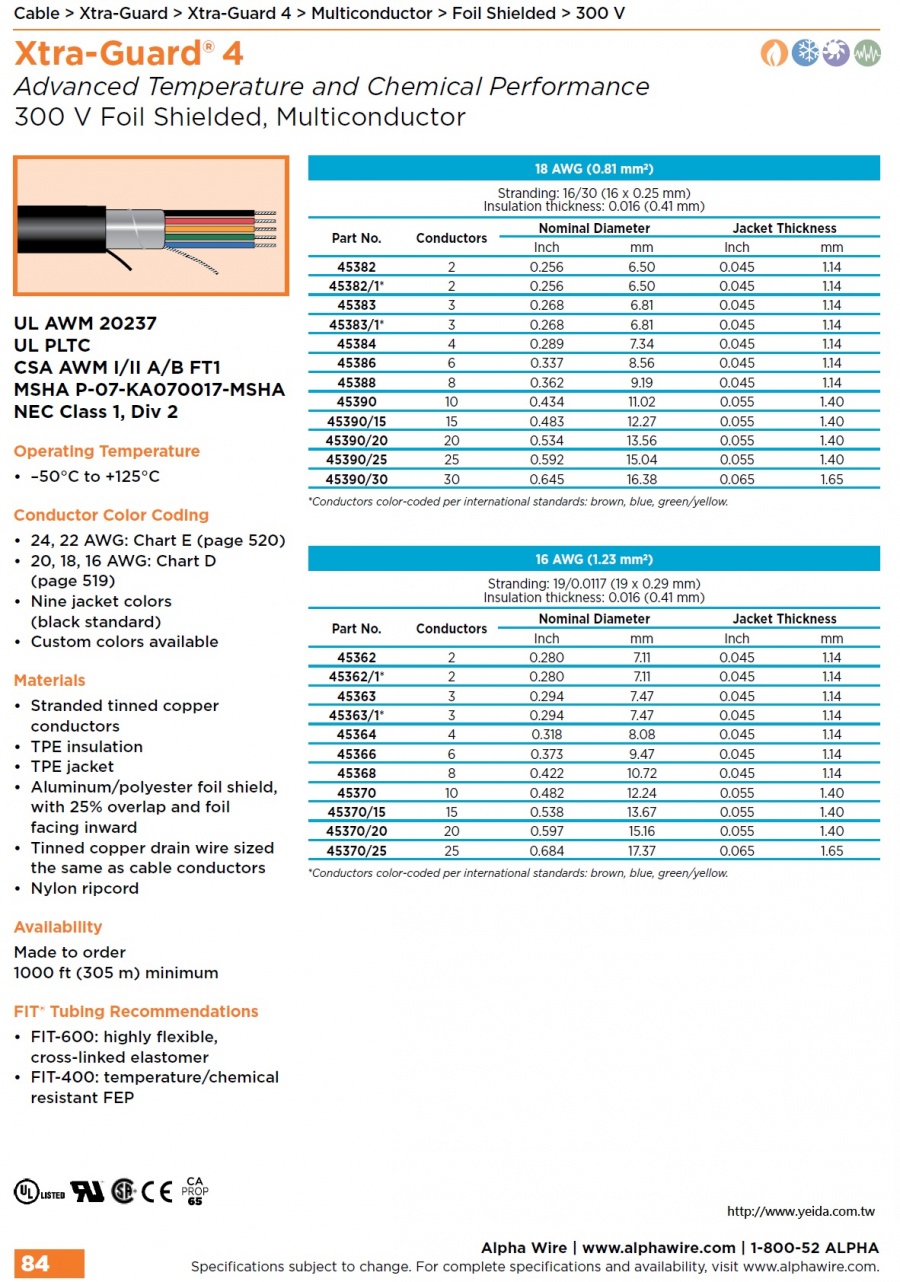

Xtra-Guard® 4
Advanced Temperature and Chemical Performance
300 V Foil Shielded, Multiconductor
UL AWM 20237 UL PLTC*
CSA AWM I/II A/B FT1
MSHA P-07-KA070017-MSHA
NEC Class 1, Div 2 (22 & 20 AWG)

Operating Temperature
• –50°C to +125°C
Conductor Color Coding
• 24, 22 AWG: Chart E (page 520)
• 20, 18, 16 AWG: Chart D (page 519)
• Nine jacket colors (black standard)
• Custom colors available
Materials
• Stranded tinned copper conductors
• TPE insulation
• TPE jacket
• Aluminum/polyester foil shield, with 25% overlap and foil facing inward
• Tinned copper drain wire sized the same as cable conductors
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum

FIT® Tubing Recommendations
• FIT-600: highly flexible, cross-linked elastomer
• FIT-400: temperature/chemical resistant FEP

Xtra-Guard® 4 - Extreme temperature capability handles hot, cold, spills

• Extended-temperature cable with a temperature range from -50°C to +125°C
• Features a high-performance TPE insulation and jacket offering three times the low-temperature flexibility of ordinary PVC
• Moderate resistance to oils, solvents, chemicals, and fuels
• Outstanding ultraviolet light stability in all jacket colors
• UL Rated TC 600 V and PLTC 300 V for cable tray applications (except 24 AWG)
• Pennsylvania Bureau Deep Mining Safety approved for mine-wide monitoring systems
• Provides exceptional protection against EMI interference when Supra-Shield is specified

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
