Awg24:  Alpha45112, Alpha45113, Alpha45114, Alpha45116, Alpha45118, Alpha45120, Alpha45120/20, Alpha45120/15, Alpha45120/25,

Awg22:  Alpha45102, Alpha45103, Alpha45104, Alpha45106, Alpha45108, Alpha45110, Alpha45110/15, Alpha45110/25, Alpha45110/20,

Awg20: Alpha45152, Alpha45153, Alpha45154, Alpha45158, Alpha45156, Alpha45160, Alpha45160/15, Alpha45160/25, Alpha45160/15,

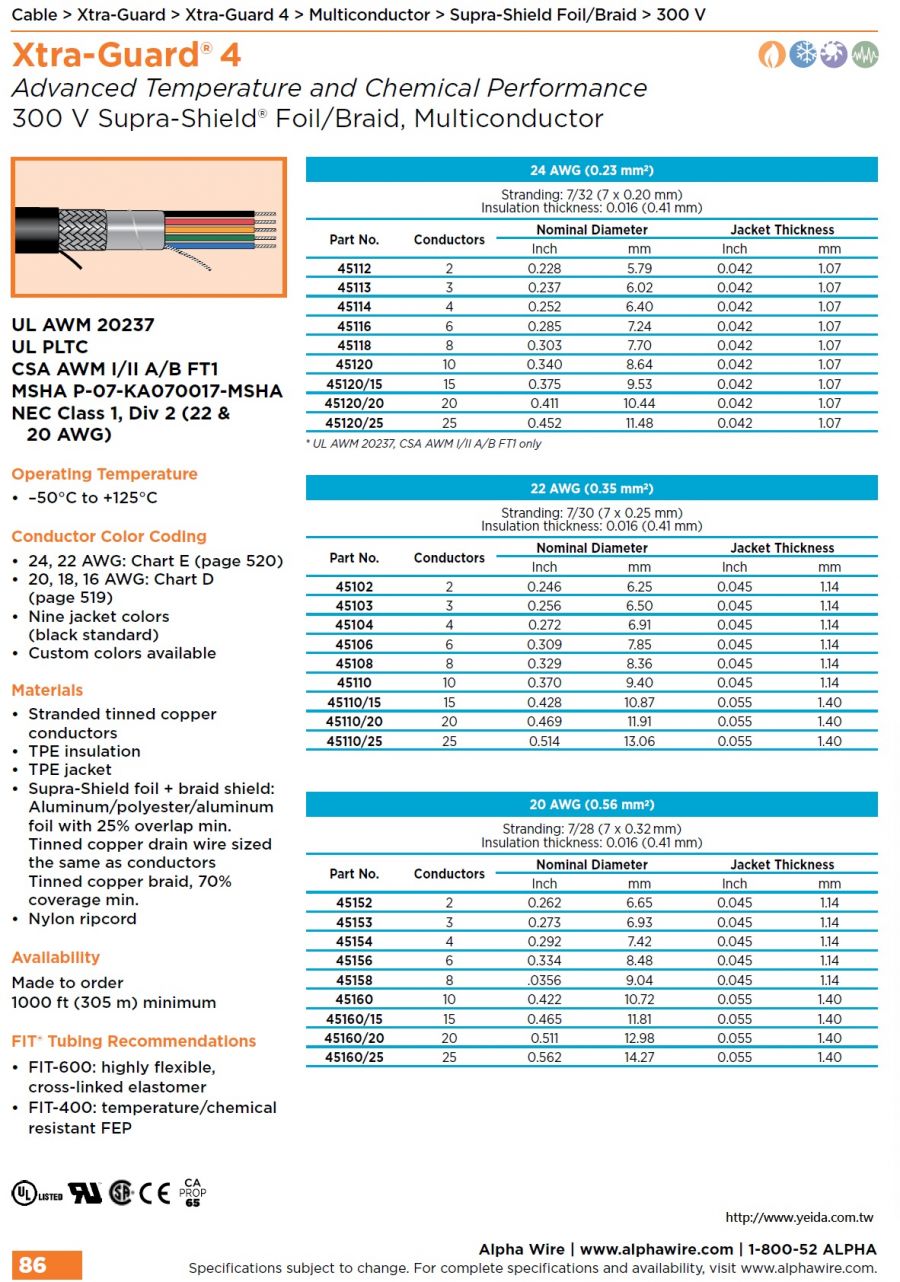

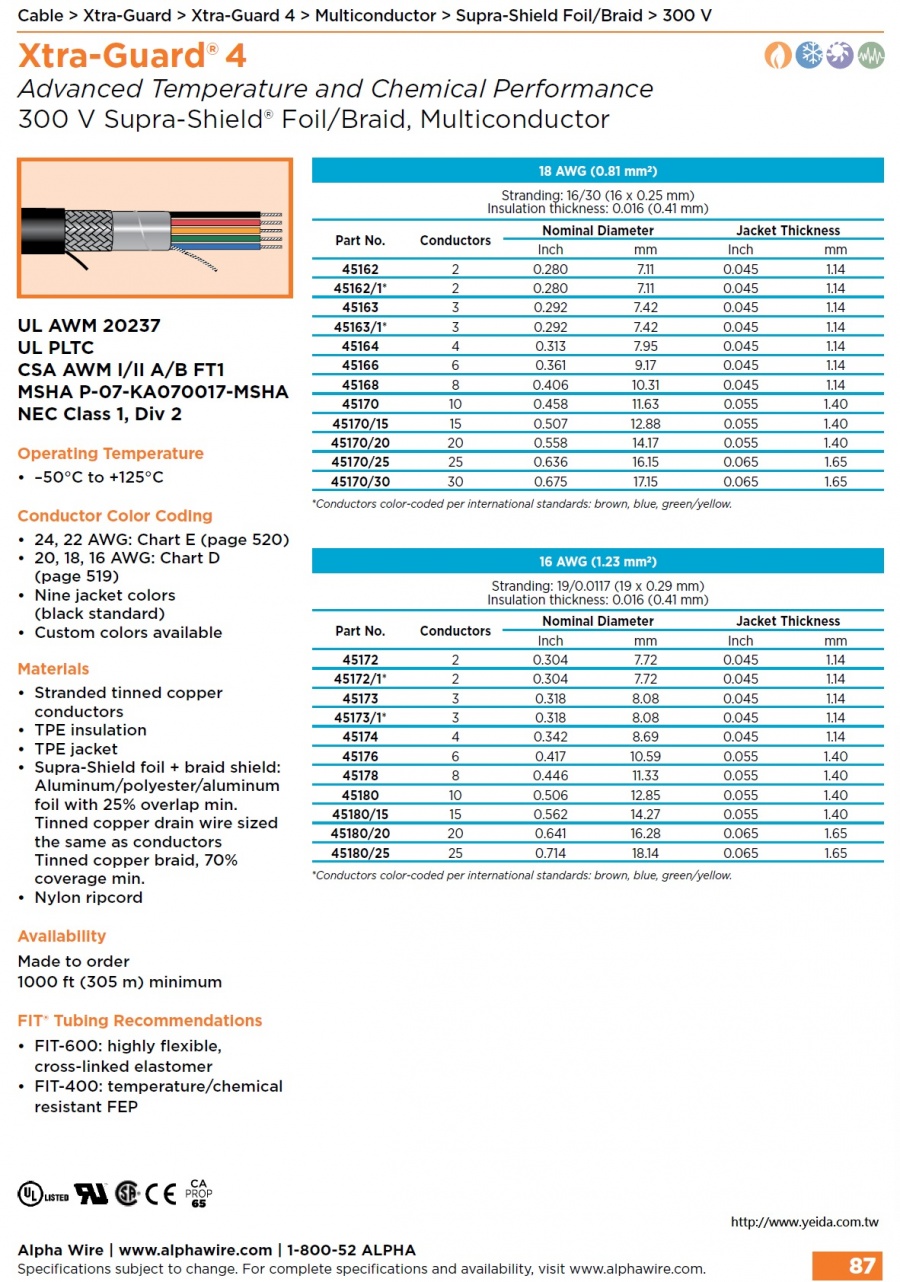

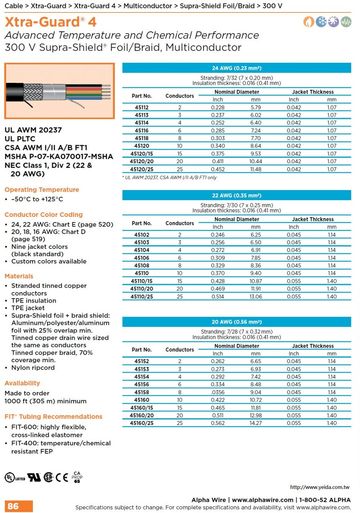

Xtra-Guard® 4
Advanced Temperature and Chemical Performance
300 V Supra-Shield® Foil/Braid, Multiconductor
UL AWM 20237 UL PLTC
CSA AWM I/II A/B FT1
MSHA P-07-KA070017-MSHA
NEC Class 1, Div 2

Operating Temperature
• –50°C to +125°C
Conductor Color Coding
• 24, 22 AWG: Chart E (page 520)
• 20, 18, 16 AWG: Chart D (page 519)
• Nine jacket colors (black standard)
• Custom colors available
Materials
• Stranded tinned copper conductors
• TPE insulation
• TPE jacket
• Supra-Shield foil + braid shield: Aluminum/polyester/aluminum foil with 25% overlap min.
     Tinned copper drain wire sized the same as conductors Tinned copper braid, 70% coverage min.
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum

FIT® Tubing Recommendations
• FIT-600: highly flexible, cross-linked elastomer
• FIT-400: temperature/chemical resistant FEP

Xtra-Guard ® 4 – 抵抗极端温度，适用于高温、低温和泄漏环境 温度耐受性极高，适用于 -50°C 到 +125°C 的工作环境 高性能热塑性橡胶绝缘和护套，低温柔韧性是普通聚氯乙烯的三倍 具有中等的耐油、耐溶剂、耐腐蚀和耐燃料性能 所有护套颜色都具有出色的紫外线照射稳定性 UL TC 600 V 和 PLTC 300 V，适合电缆槽应用（24 AWG 除外） 经宾夕法尼亚州深井采矿安全局的认证，适用于整个矿区的监控系统（14 AWG 除外） 与 Alpha 高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性   Xtra-Guard® 4 - Extreme temperature capability handles hot, cold, spills Extended-temperature cable with a temperature range from -50°C to +125°C Features a high-performance TPE insulation and jacket offering three times the low-temperature flexibility of ordinary PVC Moderate resistance to oils, solvents, chemicals, and fuels Outstanding ultraviolet light stability in all jacket colors UL Rated TC 600 V and PLTC 300 V for cable tray applications (except 24 AWG) Pennsylvania Bureau Deep Mining Safety approved for mine-wide monitoring systems Provides exceptional protection against EMI interference when Supra-Shield is specified

Awg24:  Alpha45112, Alpha45113, Alpha45114, Alpha45116, Alpha45118, Alpha45120, Alpha45120/20, Alpha45120/15, Alpha45120/25,

Awg22:  Alpha45102, Alpha45103, Alpha45104, Alpha45106, Alpha45108, Alpha45110, Alpha45110/15, Alpha45110/25, Alpha45110/20,

Awg20: Alpha45152, Alpha45153, Alpha45154, Alpha45158, Alpha45156, Alpha45160, Alpha45160/15, Alpha45160/25, Alpha45160/15,
