    首頁 > > ALPHA-Xtra-Guard® 4 Foil/Braid shielded Multiconductor 多芯鋁箔 銅網隔離耐候抗化學腐蝕电缆

    ALPHA45542, Xtra-Guard 4 Extreme temperature capability handles hot, cold, spills(Awg 18, 16, 14) 600 V (-50°C to +125°C ) Foil/Braid Shielded, Multiconductor適用于高低温和泄漏環境鋁箔銅網隔離電纜
    看原圖
    		ALPHA-45522

    商品編號: ALPHA-45522

    ALPHA-Xtra-Guard® 4 Extreme temperature capability handles hot, cold, spills(Awg 18, 16, 14) 600 V (-50°C to +125°C ) Foil/Braid Shielded, UL20238, UL TC, WTTC, 適用于高低温和泄漏環境鋁箔銅網隔離電纜

    Awg16:  Alpha45532, Alpha45533, Alpha45534, Alpha45535, Alpha45537, Alpha45539, Alpha45539/12,

    Awg18:  Alpha45522, Alpha45523, Alpha45524, Alpha45525, Alpha45527, Alpha45529, Alpha45529/12,

     Awg14: Alpha45542, Alpha45543, Alpha45544, Alpha45545, Alpha45547, Alpha45549,

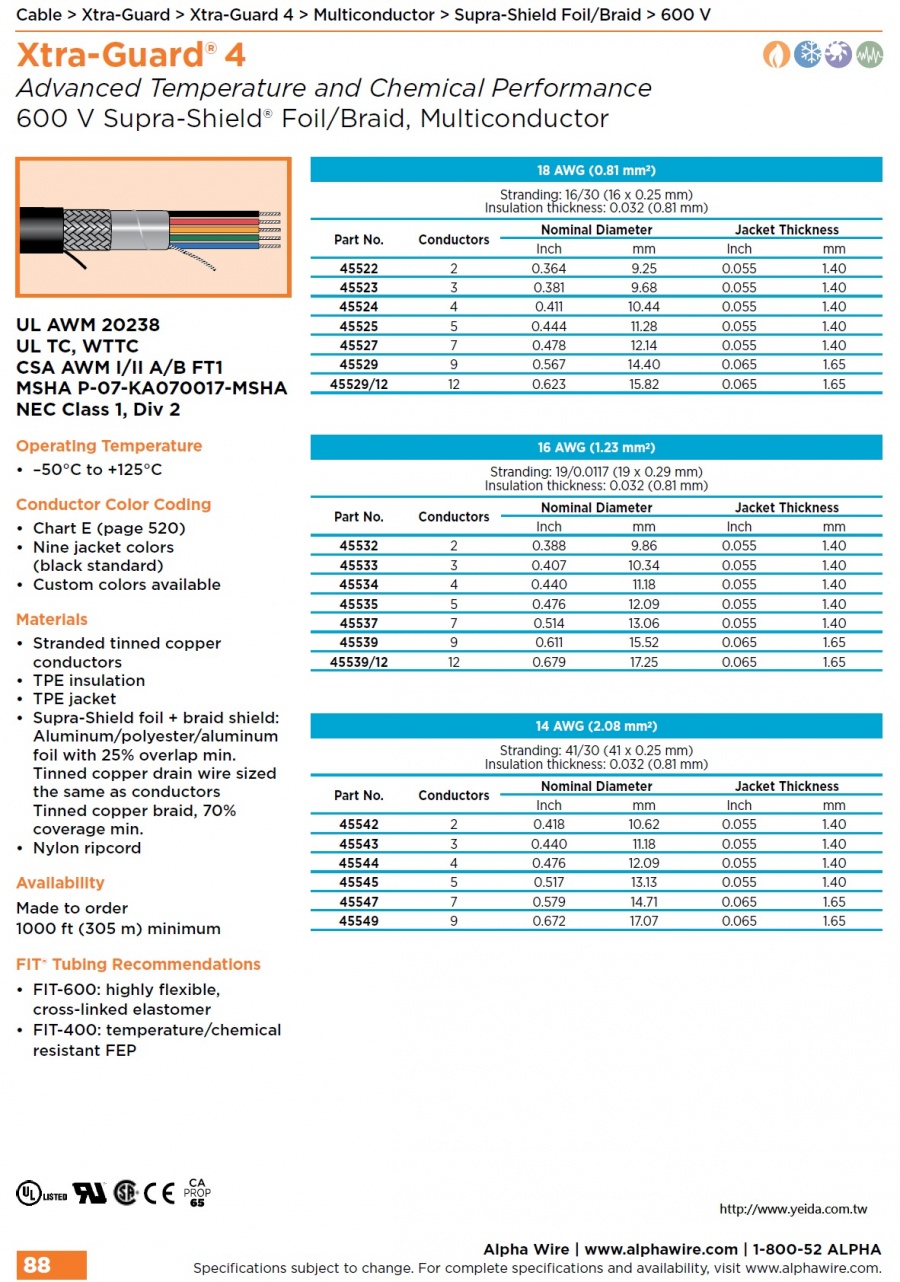

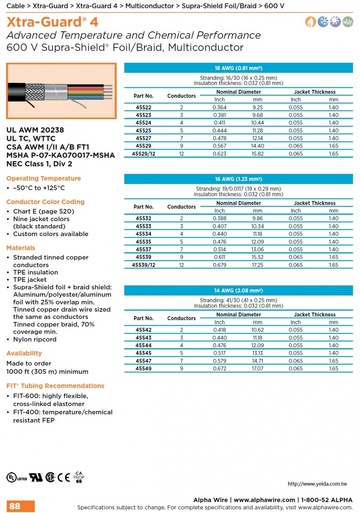

    Xtra-Guard® 4
    Advanced Temperature and Chemical Performance
    600 V Supra-Shield® Foil/Braid, Multiconductor
    UL AWM 20238
    UL TC, WTTC
    CSA AWM I/II A/B FT1
    MSHA P-07-KA070017-MSHA
    NEC Class 1, Div 2


    Operating Temperature
    • –50°C to +125°C
    Conductor Color Coding
    • Chart E (page 520)
    • Nine jacket colors (black standard)
    • Custom colors available
    Materials
    • Stranded tinned copper conductors
    • TPE insulation
    • TPE jacket
    • Supra-Shield foil + braid shield: Aluminum/polyester/aluminum foil with 25% overlap min.
         Tinned copper drain wire sized the same as conductors Tinned copper braid, 70% coverage min.
    • Nylon ripcord
    Availability
    Made to order
    1000 ft (305 m) minimum
    　

    FIT® Tubing Recommendations
    • FIT-600: highly flexible, cross-linked elastomer
    • FIT-400: temperature/chemical resistant FEP

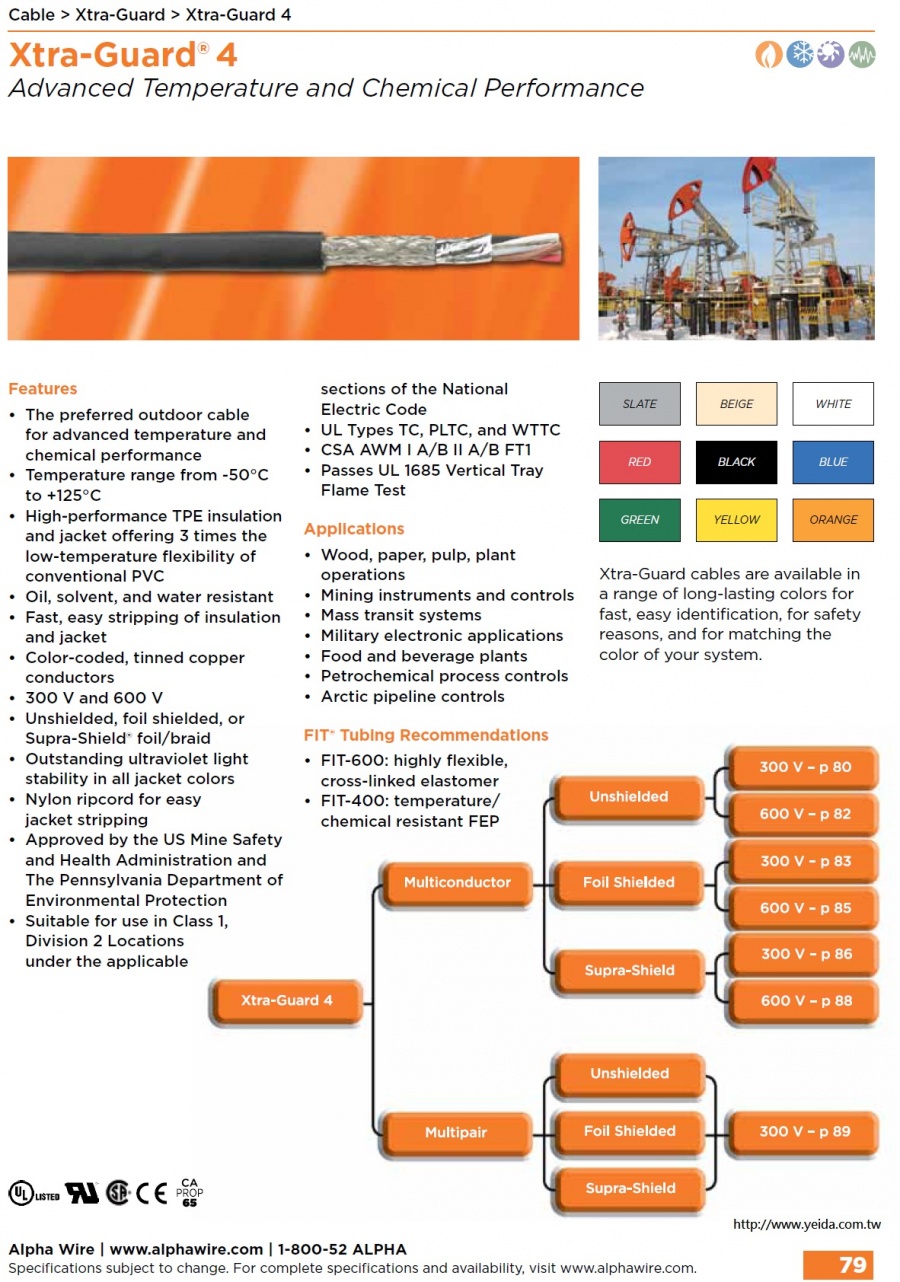

    Xtra-Guard ® 4 – 抵抗极端温度，适用于高温、低温和泄漏环境 High TemperatureLow TemperatureUltraviolet LightEMI Noise

    • 温度耐受性极高，适用于 -50°C 到 +125°C 的工作环境
    • 高性能热塑性橡胶绝缘和护套，低温柔韧性是普通聚氯乙烯的三倍
    • 具有中等的耐油、耐溶剂、耐腐蚀和耐燃料性能
    • 所有护套颜色都具有出色的紫外线照射稳定性
    • UL TC 600 V 和 PLTC 300 V，适合电缆槽应用（24 AWG 除外）
    • 经宾夕法尼亚州深井采矿安全局的认证，适用于整个矿区的监控系统（14 AWG 除外）
    • 与 Alpha 高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性
    Xtra-Guard® 4 - Extreme temperature capability handles hot, cold, spills High TemperatureLow TemperatureUltraviolet LightEMI Noise
    • Extended-temperature cable with a temperature range from -50°C to +125°C
    • Features a high-performance TPE insulation and jacket offering three times the low-temperature flexibility of ordinary PVC
    • Moderate resistance to oils, solvents, chemicals, and fuels
    • Outstanding ultraviolet light stability in all jacket colors
    • UL Rated TC 600 V and PLTC 300 V for cable tray applications (except 24 AWG)
    • Pennsylvania Bureau Deep Mining Safety approved for mine-wide monitoring systems
    • Provides exceptional protection against EMI interference when Supra-Shield is specified
