    首頁 > > ALPHA-Xtra-Guard® 4 Foil/Braid shielded Multipair 多對型鋁箔 銅網隔離耐候抗化學腐蝕电缆

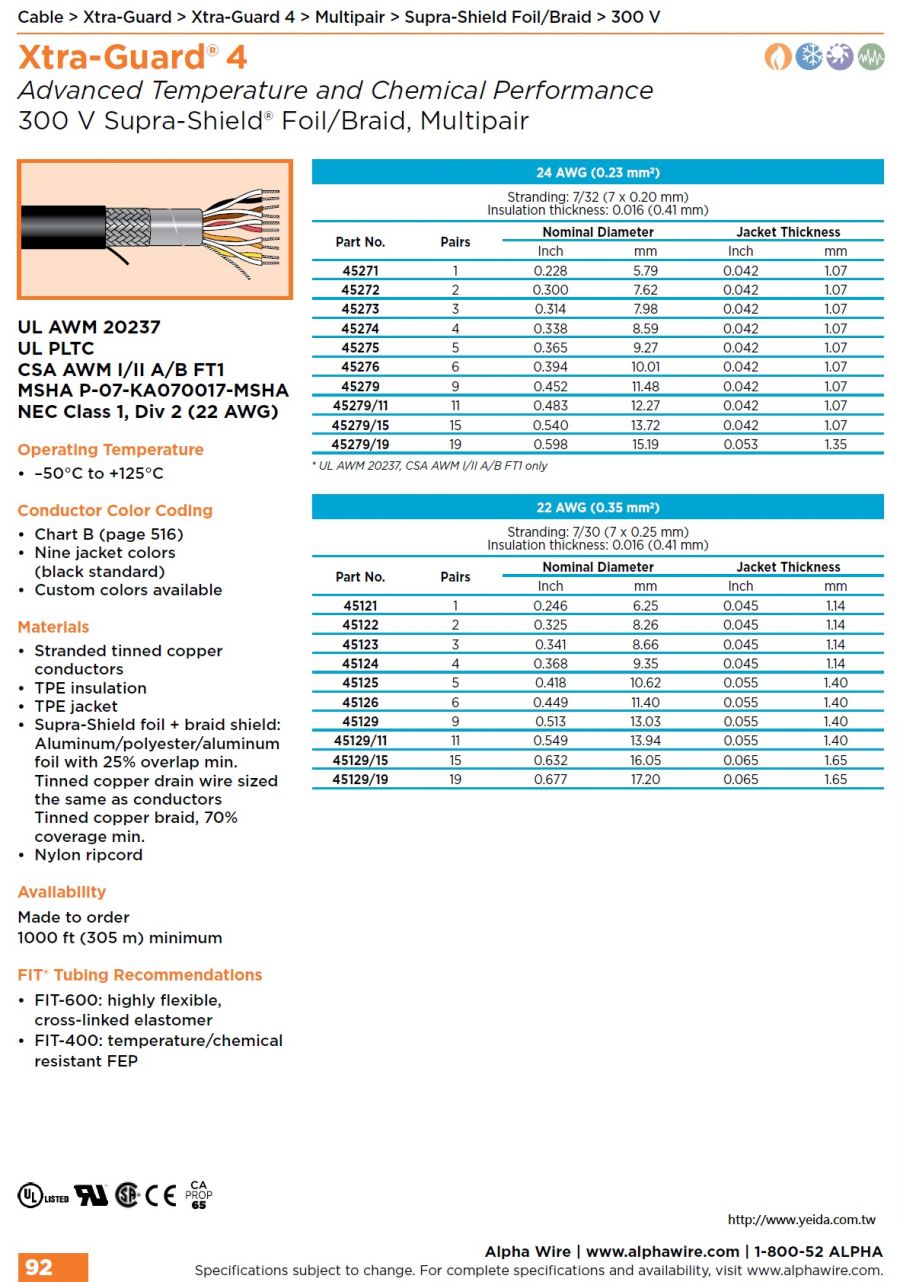

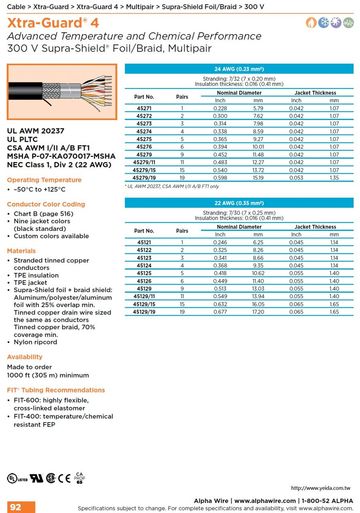

    ALPHA45121, Xtra-Guard 4 Extreme temperature capability handles hot, cold, spills(Awg 24, 22, 20, 18) 300 V (-50°C to +125°C ) Foil/Braid Shielded, Multipair適用于高低温和泄漏環境多對型鋁箔銅網隔離電纜
    看原圖
    		ALPHA-45271

    商品編號: ALPHA-45271

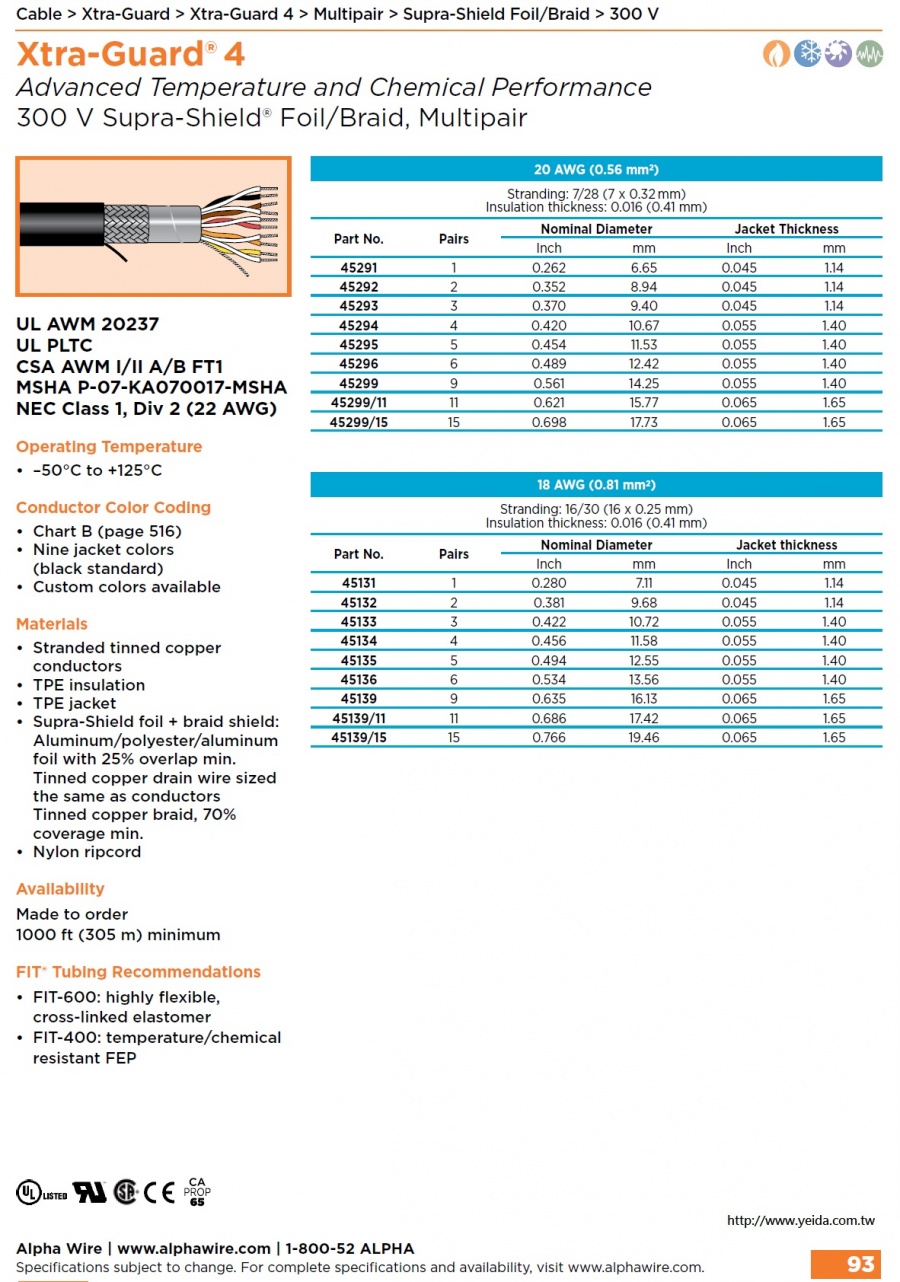

    ALPHA45291, Xtra-Guard 4 Extreme temperature capability handles hot, cold, spills(Awg 24, 22, 20, 18) 300 V (-50°C to +125°C ) Foil/Braid Shielded, Multipair適用于高低温和泄漏環境多對型鋁箔銅網隔離電纜

    Awg24:  Alpha45271, Alpha45272, Alpha45273, Alpha45274, Alpha45275, Alpha45276, Alpha45279, Alpha45279/11, Alpha45279/19, Alpha45279/15,

    Awg22:  Alpha45121, Alpha45122, Alpha45123, Alpha45124, Alpha45126, Alpha45129, Alpha45125, Alpha45129/11, Alpha45129/15, Alpha45129/19,

    Awg20: Alpha45291, Alpha45292, Alpha45293, Alpha45294, Alpha45295, Alpha45296, Alpha45299, Alpha45299/11, Alpha45299/15, Alpha45160/15,

    Awg18:  Alpha45131, Alpha45132, Alpha45133, Alpha45134, Alpha45135, Alpha45136, Alpha45139, Alpha45139/11,  Alpha45139/15,

    AWM 20237
    UL PLTC
    CSA AWM I/II A/B FT1
    MSHAXtra-Guard® 4
    Advanced Temperature and Chemical Performance
    300 V Supra-Shield® Foil/Braid, Multipair
    UL P-07-KA070017-MSHA
    NEC Class 1, Div 2 (22 AWG)


    Operating Temperature
    • –50°C to +125°C
    Conductor Color Coding
    • Chart B (page 516)
    • Nine jacket colors (black standard)
    • Custom colors available
    Materials
    • Stranded tinned copper conductors
    • TPE insulation
    • TPE jacket
    • Supra-Shield foil + braid shield: Aluminum/polyester/aluminum foil with 25% overlap min.
         Tinned copper drain wire sized the same as conductors Tinned copper braid, 70% coverage min.
    • Nylon ripcord
    Availability
    Made to order
    1000 ft (305 m) minimum


    FIT® Tubing Recommendations
    • FIT-600: highly flexible, cross-linked elastomer
    • FIT-400: temperature/chemical resistant FEP

    Awg24:  Alpha45271, Alpha45272, Alpha45273, Alpha45274, Alpha45275, Alpha45276, Alpha45279, Alpha45279/11, Alpha45279/19, Alpha45279/15,

    Awg22:  Alpha45121, Alpha45122, Alpha45123, Alpha45124, Alpha45126, Alpha45129, Alpha45125, Alpha45129/11, Alpha45129/15, Alpha45129/19,

    Awg20: Alpha45291, Alpha45292, Alpha45293, Alpha45294, Alpha45295, Alpha45296, Alpha45299, Alpha45299/11, Alpha45299/15, Alpha45160/15,

    Awg18:  Alpha45131, Alpha45132, Alpha45133, Alpha45134, Alpha45135, Alpha45136, Alpha45139, Alpha45139/11,  Alpha45139/15,
