    首頁 > > ALPHA-Xtra-Guard® 4 Unshielded Multiconductor 多芯無隔離耐候抗化學腐蝕电缆

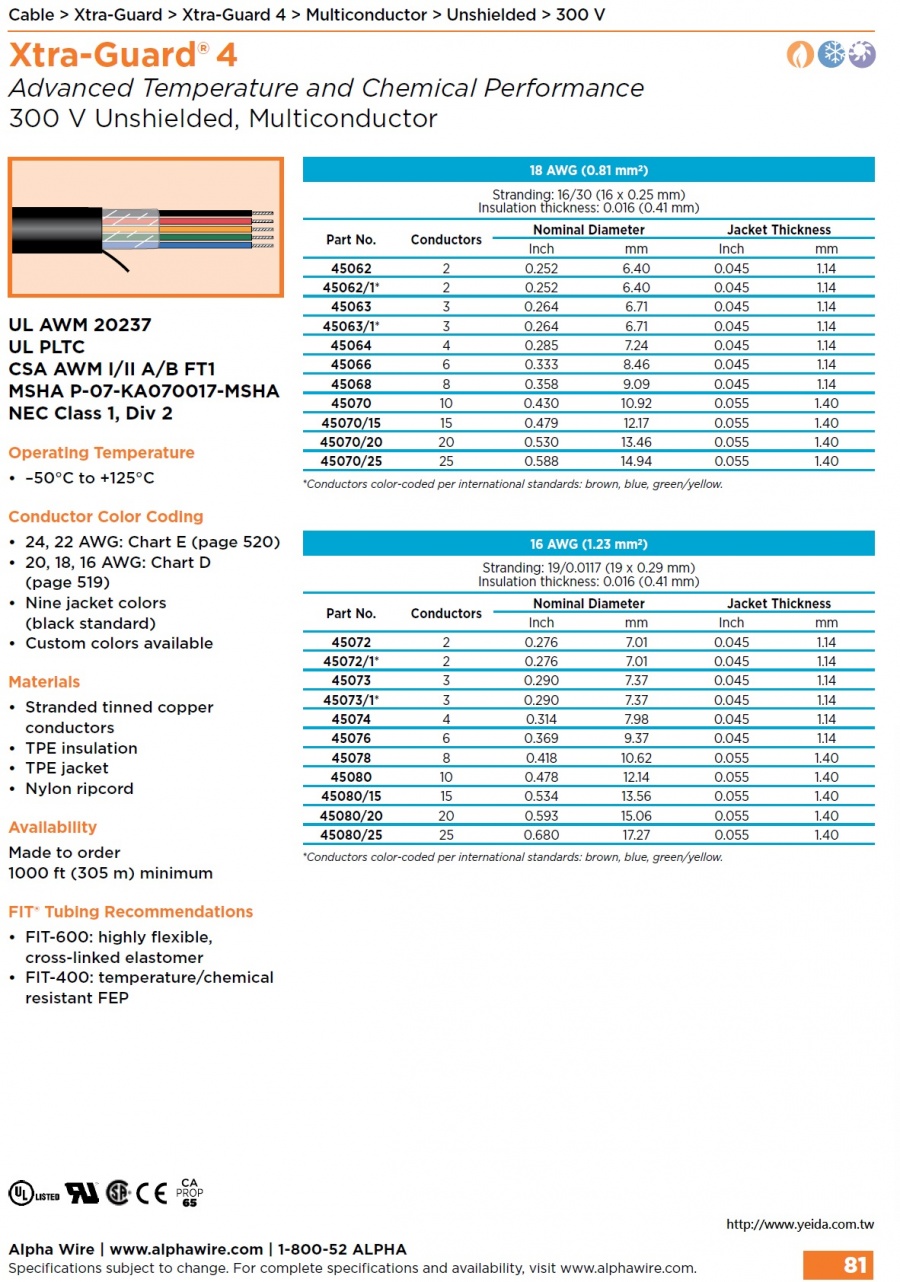

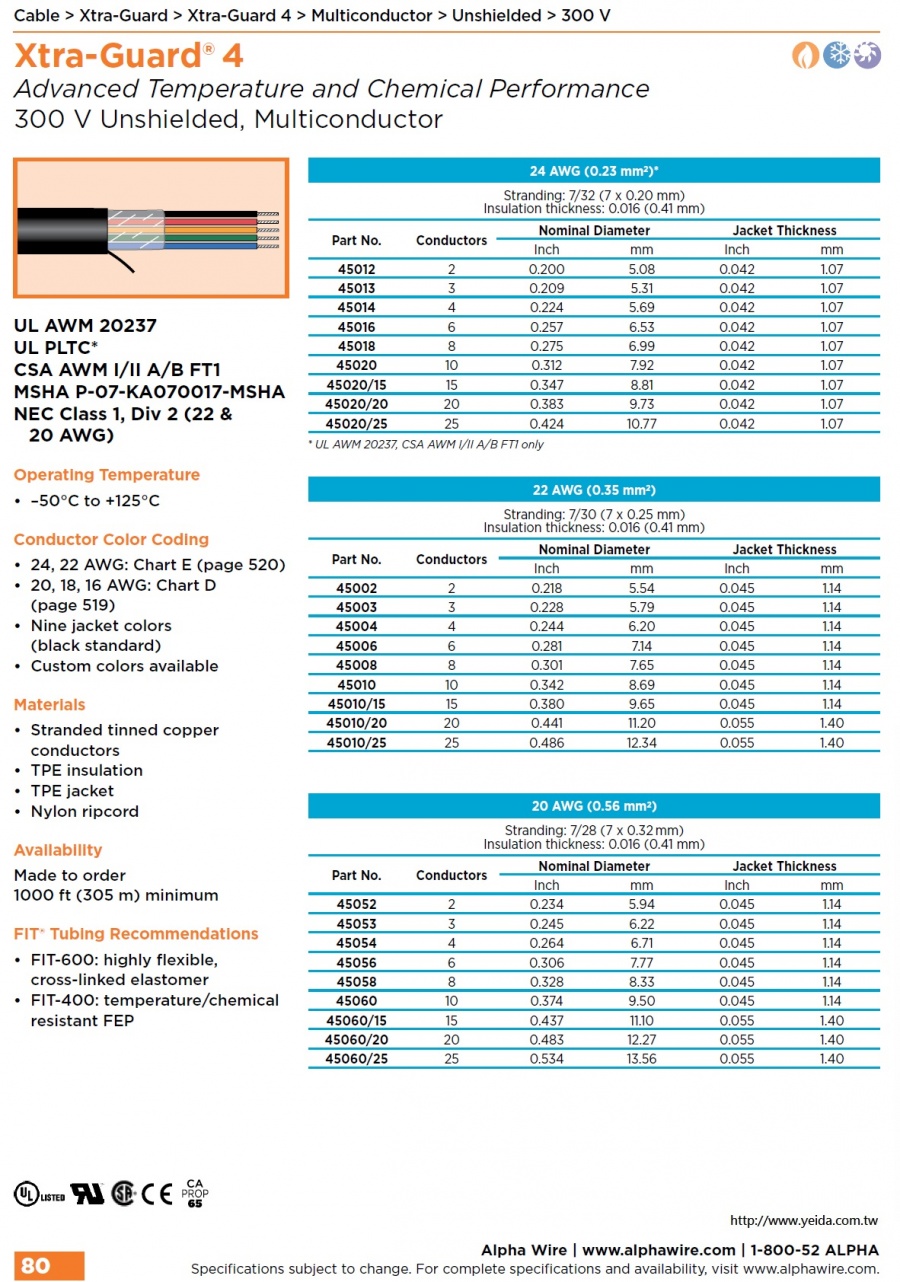

    ALPHA45002 Xtra-Guard 4 Extreme temperature capability handles hot, cold, spills(Awg 24, 22, 20, 18, 16)300 V (-50°C to +125°C ) Unshielded, Multiconductor適用于高低温和洩漏環境電纜
    看原圖
    		ALPHA-45012

    ALPHA45002 Xtra-Guard 4 Extreme temperature capability handles hot, cold, spills, UL20237, UL PLTC, MSHA P-07-KA070017-MSHA,300 V (-50°C to +125°C )  TPE-TPE, Multiconductor適用于高低温和洩漏環境電纜

    Awg24: Alpha45012, Alpha45013, Alpha45014, Alpha45016, Alpha45018, Alpha45020, Alpha45020/15, Alpha45020/20, Alpha45020/25,

    Awg22: Alpha45002, Alpha45003, Alpha45004, Alpha45006, Alpha45008, Alpha45010, Alpha45010/15, Alpha45010/20, Alpha45010/25,

    Awg20: Alpha45052, Alpha45053, Alpha45054, Alpha45056, Alpha45058, Alpha45060, Alpha45060/15, Alpha45060/20, Alpha45060/25,



    UL AWM 20237
    UL PLTC*
    CSA AWM I/II A/B FT1
    MSHA P-07-KA070017-MSHA
    NEC Class 1, Div 2 (22 &
    20 AWG)
    Operating Temperature
    • –50°C to +125°C
    Conductor Color Coding
    • 24, 22 AWG: Chart E (page 532)
    • 20, 18, 16 AWG: Chart D
    (page 531)
    • Nine jacket colors
    (black standard)
    • Custom colors available
    Materials
    • Stranded tinned copper
    conductors
    • TPE insulation
    • TPE jacket
    • Nylon ripcord
    Availability
    Made to order
    1000 ft (305 m) minimum
    FIT® Tubing Recommendations
    • FIT-600: highly flexible,
    cross-linked elastomer
    • FIT-400: temperature/chemical
    resistant FEP

    Xtra-Guard ® 4 – 抵抗极端温度，适用于高温、低温和泄漏环境 High TemperatureLow TemperatureUltraviolet LightEMI Noise

    • 温度耐受性极高，适用于 -50°C 到 +125°C 的工作环境
    • 高性能热塑性橡胶绝缘和护套，低温柔韧性是普通聚氯乙烯的三倍
    • 具有中等的耐油、耐溶剂、耐腐蚀和耐燃料性能
    • 所有护套颜色都具有出色的紫外线照射稳定性
    • UL TC 600 V 和 PLTC 300 V，适合电缆槽应用（24 AWG 除外）
    • 经宾夕法尼亚州深井采矿安全局的认证，适用于整个矿区的监控系统（14 AWG 除外）
    • 与 Alpha 高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性
    Xtra-Guard® 4 - Extreme temperature capability handles hot, cold, spills High TemperatureLow TemperatureUltraviolet LightEMI Noise
    • Extended-temperature cable with a temperature range from -50°C to +125°C
    • Features a high-performance TPE insulation and jacket offering three times the low-temperature flexibility of ordinary PVC
    • Moderate resistance to oils, solvents, chemicals, and fuels
    • Outstanding ultraviolet light stability in all jacket colors
    • UL Rated TC 600 V and PLTC 300 V for cable tray applications (except 24 AWG)
    • Pennsylvania Bureau Deep Mining Safety approved for mine-wide monitoring systems
    • Provides exceptional protection against EMI interference when Supra-Shield is specified

    ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

    Awg24: Alpha45012, Alpha45013, Alpha45014, Alpha45016, Alpha45018, Alpha45020, Alpha45020/15, Alpha45020/20, Alpha45020/25,

    Awg22: Alpha45002, Alpha45003, Alpha45004, Alpha45006, Alpha45008, Alpha45010, Alpha45010/15, Alpha45010/20, Alpha45010/25,

    Awg20: Alpha45052, Alpha45053, Alpha45054, Alpha45056, Alpha45058, Alpha45060, Alpha45060/15, Alpha45060/20, Alpha45060/25,

    Keyword: ALPHA, Xtra-Guard 4, TPE-TPE, UL20237, UL PLTC, MSHA P-07-KA070017-MSHA, 適用于高低温和洩漏環境電纜
