9273

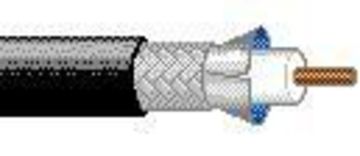

Coax - 50 Ohm Coax 19 AWG Solid .034" silver-coated copper conductor, polyethylene insulation, double silver-coated copper braid shield (95% coverage), non-contaminating PVC jacket.

Click here for Certificate

Put Ups and Colors:

Requested information is not available at this time

Physical Characteristics (Overall)
Conductor
AWG:

# Coax AWG Stranding Conductor Material Dia. (in.) 1 19 Solid SCC - Silver-coated Copper .034

Total Number of Conductors:

1

Insulation
Insulation Material:

Insulation Material Dia. (in.) PE - Polyethylene .117

Outer Shield
Outer Shield Material:

Layer # Type Outer Shield Material Coverage (%) 1 Braid Silver-coated Copper 95 2 Braid Silver-coated Copper 95

Outer Jacket
Outer Jacket Material:

Outer Jacket Material PVCNC - Polyvinyl Chloride Non-Contaminating

Overall Cable

Overall Nominal Diameter:

0.212 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-40°C To +60°C

UL Temperature Rating:

60°C

Bulk Cable Weight:

36 lbs/1000 ft.

Max. Recommended Pulling Tension:

87 lbs.

Min. Bend Radius/Minor Axis:

2.250 in.

Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CMX

CEC/C(UL) Specification:

CMX

AWM Specification:

UL Style 1354

EU Directive 2011/65/EU (ROHS II):

Yes

EU CE Mark:

No

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

10/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Military Specification:

MIL-C-17, M17/167-00001

RG Type:

223/U

Flame Test

UL Flame Test:

VW-1

Suitability

Suitability - Indoor:

Yes

Plenum/Non-Plenum

Plenum (Y/N):

No

Electrical Characteristics (Overall)
Nom. Characteristic Impedance:

Impedance (Ohm) 50

Nom. Inductance:

Inductance (µH/ft) .077

Nom. Capacitance Conductor to Shield:

Capacitance (pF/ft) 30.8

Nominal Velocity of Propagation:

VP (%) 66

Nominal Delay:

Delay (ns/ft) 1.54

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 8.8

Nominal Outer Shield DC Resistance:

DCR @ 20°C (Ohm/1000 ft) 2.5

Nom. Attenuation:

Freq. (MHz) Attenuation (dB/100 ft.) 1 .4 10 1.2 50 2.8 100 4.1 200 6.0 400 8.8 700 12.0 900 13.8 1000 14.5

Max. Operating Voltage - UL:

Voltage 30 V RMS (UL AWM Style 1354)

Max. Operating Voltage - Non-UL:

Voltage 1400 V RMS

Notes (Overall)

Notes:

Non-SWR swept version of RG-223
