商品編號: Belden-7810A

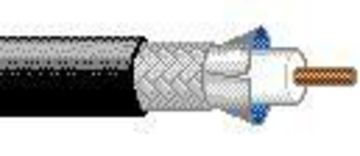

BELDEN7810A (RF-400) 類LMR-400, RG8/U, Low Loss 50 Ohm Wireless低損耗無線高頻傳輸同軸電纜
| DESCRIPTION: |
| RF400 Wireless 50 ohm coax, 10 AWG solid bare copper-covered aluminum, gas-injected foam HDPE core, Duobond® II + 95% tinned copper braid, polyethylene jacket. |
|
|
| PHYSICAL CHARACTERISTICS : |
|
|
| |
|
| CONDUCTOR : |
| Number of Coax: |
1 |
| Total Number of Conductors: |
1 |
| RG Type: |
8/U |
| Series Type: |
RF 400 |
| AWG: |
10 |
| Stranding: |
solid |
| Conductor Diameter: |
.108 in. |
| Conductor Material: |
BCCA - Bare Copper Clad Aluminum |
|
| |
|
| INSULATION : |
| Insulation Material: |
Gas-injected FHDPE - Foam High Density Polyethylene |
| Insulation Diameter: |
.285 in. |
|
| |
|
| OUTER SHIELD : |
| Outer Shield Material Trade Name: |
Duobond® II |
| Outer Shield Type: |
Tape/Braid |
| Outer Shield Material: |
|
| Layer Number |
Trade Name |
Type |
Material |
% Coverage (%) |
| 1 |
Duobond® |
Tape |
|
100 |
| 2 |
|
Braid |
Tinned Copper |
95 |
|
|
|
| |
|
| OUTER JACKET : |
| Outer Jacket Material: |
PE - Polyethylene |
|
| |
|
| OVERALL NOMINAL DIAMETER : |
| Overall Nominal Diameter: |
.405 in. |
|
|
| MECHANICAL CHARACTERISTICS : |
|
|
| Operating Temperature Range: |
-40°C To +80°C |
| Non-UL Temperature Rating: |
80°C |
| Bulk Cable Weight: |
77 lbs/1000 ft. |
| Max. Recommended Pulling Tension: |
145 lbs. |
| Min. Bend Radius (Install): |
2 in. |
|
| APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE : |
|
|
| |
|
| SUITABILITY : |
| Suitability - Outdoor: |
Y |
| Suitability - Aerial: |
Y, when supported by a messenger wire |
|
|
| ELECTRICAL CHARACTERISTICS : |
|
|
| Nom. Characteristic Impedance: |
50 Ω |
| Nom. Inductance: |
0.060 µH/ft |
| Nom. Capacitance Conductor to Shield: |
23.0 pF/ft |
| Nominal Velocity of Propagation: |
86 % |
| Nominal Delay: |
1.17 ns/ft |
| Nom. Conductor DC Resistance @ 20 Deg. C: |
1.3 Ω/1000 ft |
| Nominal Outer Shield DC Resistance: |
1.8 Ω/1000 ft |
| Maximum VSWR: |
|
| Description |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Maximum VSWR |
| Maximum VSWR |
|
5 |
6000 |
1.25 |
|
|
|
|
|
| Description |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Nom. Attenuation (dB/100 ft.) |
| Nominal Attenuation |
30 |
|
|
0.7 |
| |
50 |
|
|
0.9 |
| |
150 |
|
|
1.5 |
| |
220 |
|
|
1.8 |
| |
450 |
|
|
2.7 |
| |
900 |
|
|
3.8 |
| |
1500 |
|
|
5.1 |
| |
1800 |
|
|
5.6 |
| |
2000 |
|
|
6.0 |
| |
2500 |
|
|
6.7 |
| |
3000 |
|
|
7.5 |
| |
4500 |
|
|
9.5 |
| |
5800 |
|
|
11.1 |
| |
6000 |
|
|
11.4 |
|
|
|
|
|
| Description |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Max. Attenuation (dB/100 ft.) |
| Maximum Attenuation |
30 |
|
|
0.70 |
| |
50 |
|
|
0.93 |
| |
150 |
|
|
1.58 |
| |
220 |
|
|
1.94 |
| |
450 |
|
|
2.83 |
| |
900 |
|
|
4.06 |
| |
1500 |
|
|
5.32 |
| |
1800 |
|
|
5.98 |
| |
2000 |
|
|
6.35 |
| |
2500 |
|
|
7.08 |
| |
3000 |
|
|
7.97 |
| |
3500 |
|
|
8.80 |
| |
4500 |
|
|
10.23 |
| |
5800 |
|
|
12.00 |
| |
6000 |
|
|
12.23 |
|
|
|
|
|
| Description |
Frequency (MHz) |
Start Frequency (MHz) |
Stop Frequency (MHz) |
Max. Power Rating (W) |
| Maximum Power Rating |
30 |
|
|
3427 |
| |
50 |
|
|
2588 |
| |
150 |
|
|
1428 |
| |
220 |
|
|
1195 |
| |
450 |
|
|
817 |
| |
900 |
|
|
575 |
| |
1500 |
|
|
437 |
| |
1800 |
|
|
399 |
| |
2000 |
|
|
375 |
| |
2500 |
|
|
334 |
| |
3000 |
|
|
305 |
| |
3500 |
|
|
282 |
| |
4500 |
|
|
247 |
| |
5800 |
|
|
217 |
| |
6000 |
|
|
213 |
|
|
|
| Max. Operating Voltage - Non-UL: |
300 V RMS |
|
|
| Item |
Description |
Put-Up (ft.) |
Ship Weight (lbs.) |
Jacket Color |
Notes |
| 7810A 0101000 |
RF400 WIRELESS 50 OHM COAX PE |
1000 |
80 |
BLACK |
C |
| 7810A 010500 |
RF400 WIRELESS 50 OHM COAX PE |
500 |
39.5 |
BLACK |
C |
|
| |
|
|
