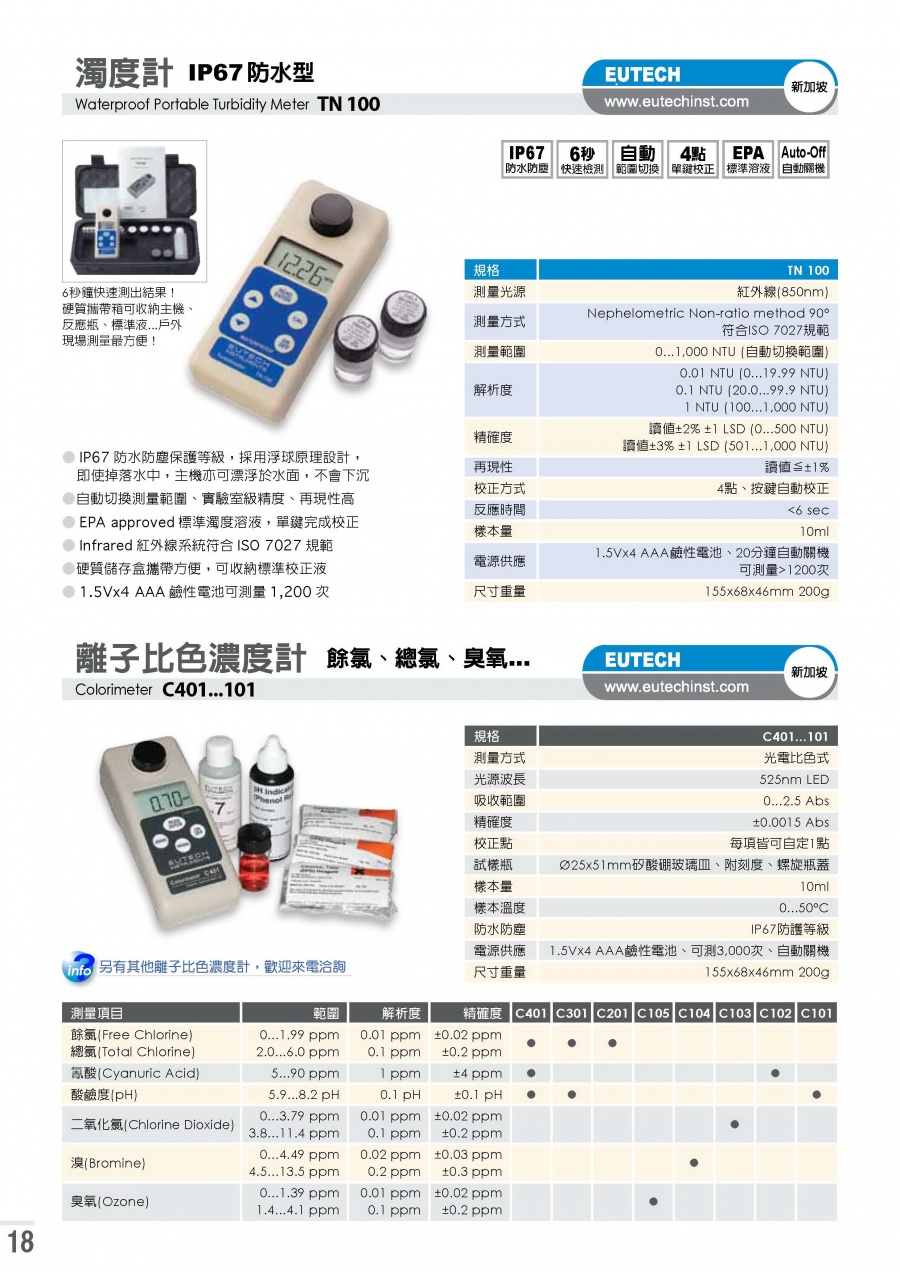

    EUTECH-C 401 Colorimeters C401, C301, C201, C105, C104, C103, C102 and C101 離子比色濃度計
    看原圖
    		EUTECH-C401


    商品編號: EUTECH-C401

    EUTECH-C 401 Colorimeters C401, C301, C201, C105, C104, C103, C102 and C101 離子比色濃度計

    產品規格

    型號

    測量項目

    C 401

    餘氯, 總氯, 氰酸, 酸鹼度

    C 301

    餘氯, 總氯, 酸鹼度

    C 201

    餘氯, 總氯

    C 105

    臭氧 Ozone (O3)

    C 104

    溴 Bromine

    C 103

    二氧化氯 Chlorine Dioxide

    C 102

    氰酸

    C 101

    酸鹼度

    產品特色

    各項目之測量範圍：
    餘氯(Free Clorine) 0~1.99 ppm
    總氯(Total Clorine) 2.0~6.0 ppm
    氰酸(Cyanuric Acid) 5~90 ppm
    溴(Bromine) 0~4.49 / 4.5~13.5 ppm
    臭氧(Ozone) 0~1.39 / 1.4~4.1 ppm
    二氧化氯 0~3.79 / 3.8~11.4 ppm
    酸鹼度 5.9~8.2 pH

    共有 C401, C301, C201, C105, C104, C103, C102, C101 離子比色濃度計，請依右上規格表，選擇適當測量項目之機型；亦有其它離子比色濃度計，歡迎洽詢

    採用光電比色式，光源波長 525nm LED

    接收範圍 0~2.5 Abs、精度 ±0.0015 Abs

    每個測試項目，皆可自行設定 1 個校正點

    矽酸硼玻璃試樣皿，附刻度、及螺旋瓶蓋

    樣本量 10ml

    1.5V x4 AAA 鹼性電池可測 3000 次，具自動關機省電機能

    IP67 絕對防塵／防水噴濺

    尺寸 155x68x45mm 重量 200g

    新加坡原裝進口  EUTECH

    Eutech’s latest range of laboratory grade microprocessor-based portable waterproof colorimeters measure Chlorine (Free and Total), Cyanuric Acid, pH, Chlorine Dioxide, Bromine and Ozone with quick, accurate and repeatable results. The meters are easy to use because of their simple, intuitive and direct user interface. Guiding messages and self-diagnostics are displayed on a large custom-made liquid crystal display (LCD). Each meter comes with reagents and sample vials in a rugged carrying case for swift testing-on-the-go. This family of colorimeters is designed for reliable and convenient water analysis in swimming pools, spas, public utilities, industrial wastewater plants, municipal water, treated water, water conditioning systems and paper and pulp mills. Select from our wide range of models, designed to meet your application needs.

    Product Features

    :: Excellent repeatability, auto-ranging and easy to use
    The meter ensures excellent repeatability, has auto-ranging capabilities while using only one-vial-one-sachet per test.

    :: High Quality Reagents
    The custom-formulated reagents provide excellent accuracy, repeatability and stability. They are conveniently packed for ease of use.

    :: USEPA-approved DPD method*
    Chlorine measurements are based on the USEPA-approved DPD method*.

    :: Advanced Power Management
    The meter is capable of measuring more than 3,000 tests using a single set of 4 ‘AAA’ alkaline batteries. Auto power-off activates after 10 minutes of non-use to conserve battery life.

    :: Fuss-free Meter Operation
    The meter is designed for easy operation. It allows one-time blanking for all parameters and ranges when measuring the same sample. The blanking value is stored in memory even if batteries are replaced. Furthermore, no calibration is needed for Chlorine and Cyanuric Acid. Most importantly, the meter is maintenance-free.

    :: Large Easy-to-read Display
    The large screen features 4-digit 14-segment customized liquid crystal display (LCD) with mode indicators to guide meter use.

    :: IP67 waterproof and lightweight
    The lightweight meter has a waterproof IP67-rated housing. It even floats when accidentally dropped in water.

    Specifications

    Product Specification

    		 Description
    Parameters Range Resolution Accuracy C401 C301 C201 C105 C104 C103 C102 C101
    Chlorine, Free and Total 0 to 1.99 ppm 0.01 ppm ±0.02 ppm • • •
    2.0 to 6.0 ppm 0.1 ppm ±0.2 ppm
    Cyanuric Acid 5 to 90 ppm 1 ppm ±4 ppm •           •
    pH 5.9 to 8.2 pH 0.1 pH ±0.1 pH • •           •
    Chlorine Dioxide 0 to 3.79 ppm 0.01 ppm ±0.02 ppm           •
    3.8 to 11.4 ppm 0.1 ppm ±0.2 ppm
    Bromine 0 to 4.49 ppm 0.02 ppm ±0.03 ppm         •
    4.5 to 13.5 ppm 0.2 ppm ±0.3 ppm
    Ozone 0 to 1.39 ppm 0.01 ppm ±0.02 ppm       •
    1.4 to 4.1 ppm 0.1 ppm ±0.2 ppm
    Measurement Method Photometric
    Light Source Light Emitting Diode (LED)
    Wavelength 525nm
    Detector Silicon photodiode
    Absorbance Range 0 - 2.5 Abs
    Photometric Precision ±0.0015Abs
    Automatic Range Selection 0 - 1.99 ppm (Free & Total Chlorine)
    2.0 - 6.0 ppm (Free & Total Chlorine)
    5 - 90 ppm (Cyanuric Acid)
    5.9 - 8.2 pH
    Resolution 0.01 ppm (0 - 1.99 ppm; Free & Total Chlorine)
    0.1 ppm (2.0 - 6.0 ppm; Free & Total Chlorine)
    0.1 pH (5.9 - 8.2 pH)
    1 ppm (5 - 90 ppm; Cyanuric Acid)
    Accuracy ±0.02 ppm (0 – 1.99 ppm; Free & Total Chlorine)
    ±0.2 ppm (2.0 – 6.0 ppm; Free & Total Chlorine)
    ±0.1 pH (5.9 – 8.2 pH)
    ±4 ppm; Cyanuric Acid
    Calibration Points User selectable; 1 point per colorimetric test
    Display 4-digit 14-segments customized liquid crystal display with annunciators
    Sample Cells Borosilicate glass with screw caps, fill line and indexing mark Height x Diameter : 51 x 25 mm
    Sample Volume Required 10 ml
    Operating Temperature Range 0 – 50°C
    Operating Humidity Range 0-90% RH non-condensing at 30°C
    Power Supply 4 ‘AAA’ alkaline batteries
    Battery Life > 3000 tests
    Electromagnetic EN 61326 Compliance (EMC)
    Weight Instrument : 200g
    Complete carrying case : 1.25kg
    Dimensions Instrument :
    　    		 6.8(W) x 15.5(L) x 4.6(H) cm
    Carrying case : 16(W) x 35(L) x 12(H) cm

    Order Information

    Order No.

    		Item
    EC-C401 Waterproof Free Chlorine, Total Chlorine, Cyanuric Acid & pH Colorimeter Kit Set with reagents & carrying case
    EC-C301 Waterproof Free Chlorine, Total Chlorine & pH Colorimeter Kit Set with reagents & carrying case
    EC-C201 Waterproof Free Chlorine & Total Chlorine Colorimeter Kit Set with reagents & carrying case
    EC-C101 Waterproof pH Colorimeter Kit Set with reagents & carrying case
    EC-C102 Waterproof Cyanuric Acid Colorimeter Kit Set with reagents & carrying case
    EC-C103 Waterproof Chlorine Dioxide Colorimeter Kit Set with reagents & carrying case
    EC-C104 Waterproof Bromine Colorimeter Kit Set with reagents & carrying case
    EC-C105 Waterproof Ozone Colorimeter Kit Set with reagents & carrying case
    94X377001 Free Chlorine (DPD) Reagent Kit, pack of 100 pouches
    94X377002 Total Chlorine (DPD) Reagent Kit, pack of 100 pouches
    94X377003 Cyanuric Acid Reagent Kit, pack of 100 pouches
    94X377004 pH Indicator (Phenol Red) Reagent Kit, 1 bottle
    94X377005 Glycine (DPD) Reagent Kit, pack of 100 sachets (Used as Chlorine Dioxide Reagent)
    ECTN100CUVKT Pack of 3 Sample Cuvettes (for TN100IR & Colorimeter series)
    ECCLCOLORREF Chlorine Colour Reference Kit Set for C401, C301, C201, C103, C104, C105
