LENKENG-LKV373 Hdmi单网线延长器,hdmi extender (HDMI extender 100-120m,hdmi extender over cat5/cat6)

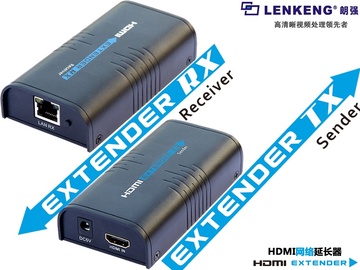

LENKENG-LKV373

全球首款的hdmi单网线延长器,HDMI无限延长器。让HDMI传输不再是10米，也不是其他延长器的30米或60米，LKV373将HDMI信号转换为标准的TCP/IP协议，直连最长是100米，借助路由、集线器等设备，您将无限延长您的HDMI信号。

Lenkeng hdmi extender over cat5/cat6 LKV373 is designed to convert HDMI signal to standard TCP/IP and transimit by internet cable or Lan.

With the advantage of TCP/IP standard,it can transmit HDMI signal source from HD STB,DVD,PS3,HDMI display card etc to HD projector, DLP,LCD,LED and other audio visual equipments

★★★★商品說明★★★★

连接示意图

接口说明

★★★★使用操作說明★★★★

配件列表

主机	2 台	产品尺寸：产品重量：
电源	2 台	电源规格:5V2A 长度：1.5米常规：美规/欧规/英规/ 特殊需求请咨询我们
使用说明书	1 本	中文/英文特殊需求请咨询我们
包装盒	1 盒	中性包装彩盒尺寸: 20.5815.57cm 彩盒重量: 1套）
包装箱（B）	1 箱	中性包装箱尺寸: 433338cm 包装箱重量:(20套) 体积计算：12KG

★★★★商品規格描述★★★★

LKV373 hdmi extender over cat5/cat6 is designed to convert HDMI signal to standard TCP/IP and transimit by internet cable or Lan.

With the advantage of TCP/IP standard,it can transmit HDMI signal source from HD STB,DVD,PS3,HDMI display card etc to HD projector, DLP,LCD,LED and other audio visual equipments

Features

Apply M-JPEG technology to process image compressing. The loss of image quality is very small; 480i@60Hz��480p@60Hz��576i@50Hz��576p@50Hz��720p@50/60Hz��1080i@50/60Hz��1080p@50/60Hz��
Supported HDMI format: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz��
HDCP compatible.
It can transmit HDMI 1080P signal to above 120M by using UTP Cat5e6.
It can transmit by Lan.
Suppoort Lan bandwidth: 100M
Extend 120M longer by adding one more ethernet router
Power Supply: 5V1A
Product Dimension (LxWxH): 11*5.8*2.6cm
