    Teldor-8005016xxx 16C x6005, 22 AWG Multicore Overall Foil-Shielded Cable電子A/V音響線
    看原圖
    		TELDOR-8005016XXX

    商品編號: Teldor-8005016xxx

    Teldor-8005016xxx 16C x6005, 22 AWG Multicore Overall Foil-Shielded Cable電子A/V音響線


    16x6005, 22 AWG Multicore Overall Foil-Shielded Cable

    Part Number:
    8005016xxx
    　
    Applications: Audio-frequency signals, Portable, indoor applications, Control applications

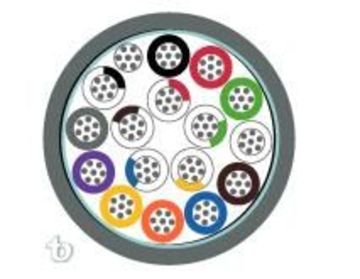

    General Construction: The cable contains 16 single cores, cabled together, overall shielded with a polyester-aluminum foil and jacketed with a soft FR PVC compound
    Outer Jacket Material: FR-PVC
    Outer Diameter: 8.5 mm nom.
    Weight: 116 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 22 AWG
    Conductor Construction: 7x0.25 mm
    Insulation Material: SR-PVC
    Insulation O.D.: 1.35 mm nom.
    Conductor Color Code: Color Code:
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 7x0.25 mm AWG
    Overall Drain-wire Construction: Stranded
    Total number of wires: 16
    Outer Jacket Thickness: 1.2 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    DC Resistance: 62.3 Ω/km nom.
    Velocity of Propagation: 45 % nom.
    Dielectric Strength: 1500 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Voltage Rating: 300 V
    Max. Operating Temperature: +80 °C
    Min. Operating Temperature: –30 °C

    　



    ★★★★使用操作說明★★★★

    Teldor Standard Insulation Colors
    For Single Conductors

    The following standard insulation colors are available for single conductors

    COLOR Teldor Color Code ("xxx")
    Black 101
    White 102
    Red 103
    Blue 104
    Yellow 105
    Green 106
    Orange 107
    Purple 108
    Grey 109
    Light Blue 114
    Brown 201
    Pink 202


    Contact Us regarding additional jacket color options.
