    Teldor-3515162101 16CX1.5 mm2 NYY 0.6/1.0 KV Underground Electrical Power Cable PVC可直埋電纜
    看原圖
    		TELDOR-3515162101

    商品編號: Teldor-3515162101

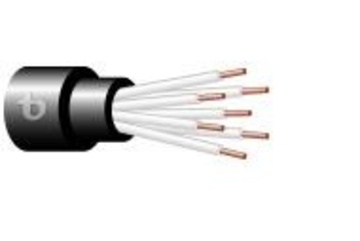

    Teldor-3515162101 16CX1.5 mm2 NYY 0.6/1.0 KV Underground Electrical Power Cable PVC可直埋電纜


    16X1.5 mm2 NYY 0.6/1.0 KV Underground Electrical Power Cable

    Part Number:
    3515162101
    　
    Applications: Low voltage power, Power and control, Outdoor Plant, Underground Installations
    General Construction:
    16 PVC insulated 1.5 mm2 solid wires, cabled together, inner PVC covering and outer  PVC  jacket.
    This cable is officially approved by SII to Israeli Standard 547.
    Conductor Cross Section: 1.5 mm²
    Outer Jacket Material: FR-PVC
    Outer Diameter: 18.0 mm nom.
    Weight: 510 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 1.39 mm
    Insulation Material: PVC
    Insulation O.D.: 2.65 mm nom.
    Conductor Color Code: White, numbered
    Inner Jacket Material: PVC
    Total number of wires: 16
    Outer Jacket Thickness: 1.8 mm nom.
    Outer Jacket Color: Black
    Marking: Teldor Standard
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , IEEE 383
    Performance
    Max. DC Resistance : 12.1 Ω/km@20°C
    Dielectric Strength: 3400 V/10 minutes
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -15 °C
    UV resistance: Yes
