YD-505D

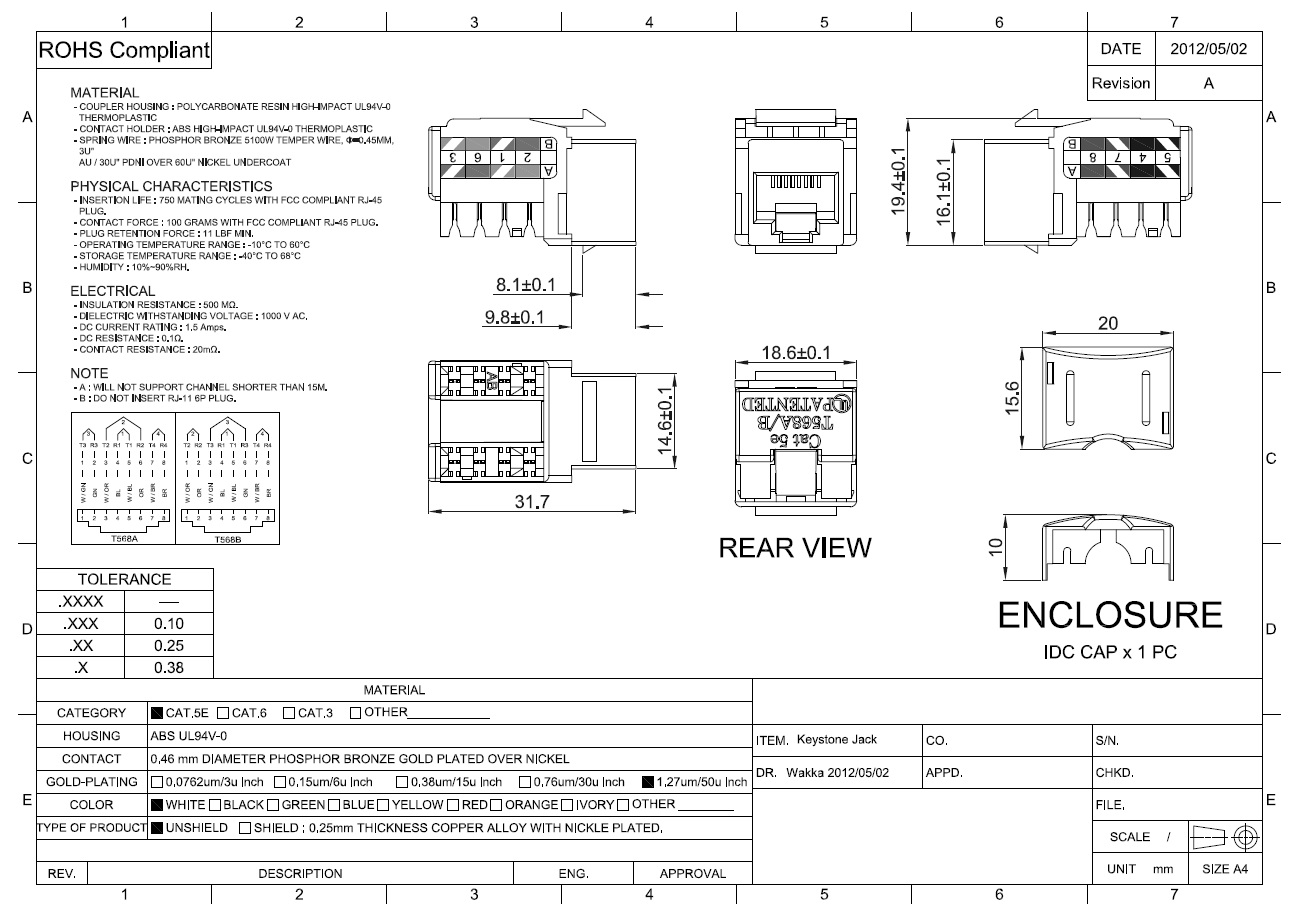

YD-505D CAT 5E UTP Keystone無焊錫90度資訊插座

描述	超五類RJ45無焊錫模組90度
線位	T568A/B

Material :

►Coupler Housing: Polycarbonate Resin High-Impact UL94V-0 Thermoplastic

►Contact Holder: ABS High-Impact UL94V-0 Thermoplastic

►Spring Wire: Phosphor Bronze 5100W Temper Wire, ø=0.45MM, 3U"

AU/ 30U" PDNI Over 60U" Nickel Undercoat

Physical Characteristics :

►Insertion Life: 750 Mating Cycles With FCC Compliant RJ-45 Plug.

►Contact Force: 100 Grams With FCC Compliant RJ-45 Plug.

►Plug Retention Force: 11 LBF Min.

►Operating Temperature Range: -10C ~ 60C

►Storage Temperature Range: -40C ~ 68C

►Humidity: 10% ~ 90% RH.

Electrical :

►Insulation Resistance: 500MΩ

►Dielectric Withstanding Voltage: 1000 V AC.

►DC Current Rating: 1.5 Amps

►DC Resistance: 0.1Ω

►Contact Resistance: 20mΩ

Note

►A: Will Not Support Channel Shorter Than 15M

►B: Do Not Insert RJ-11 6P Plug
