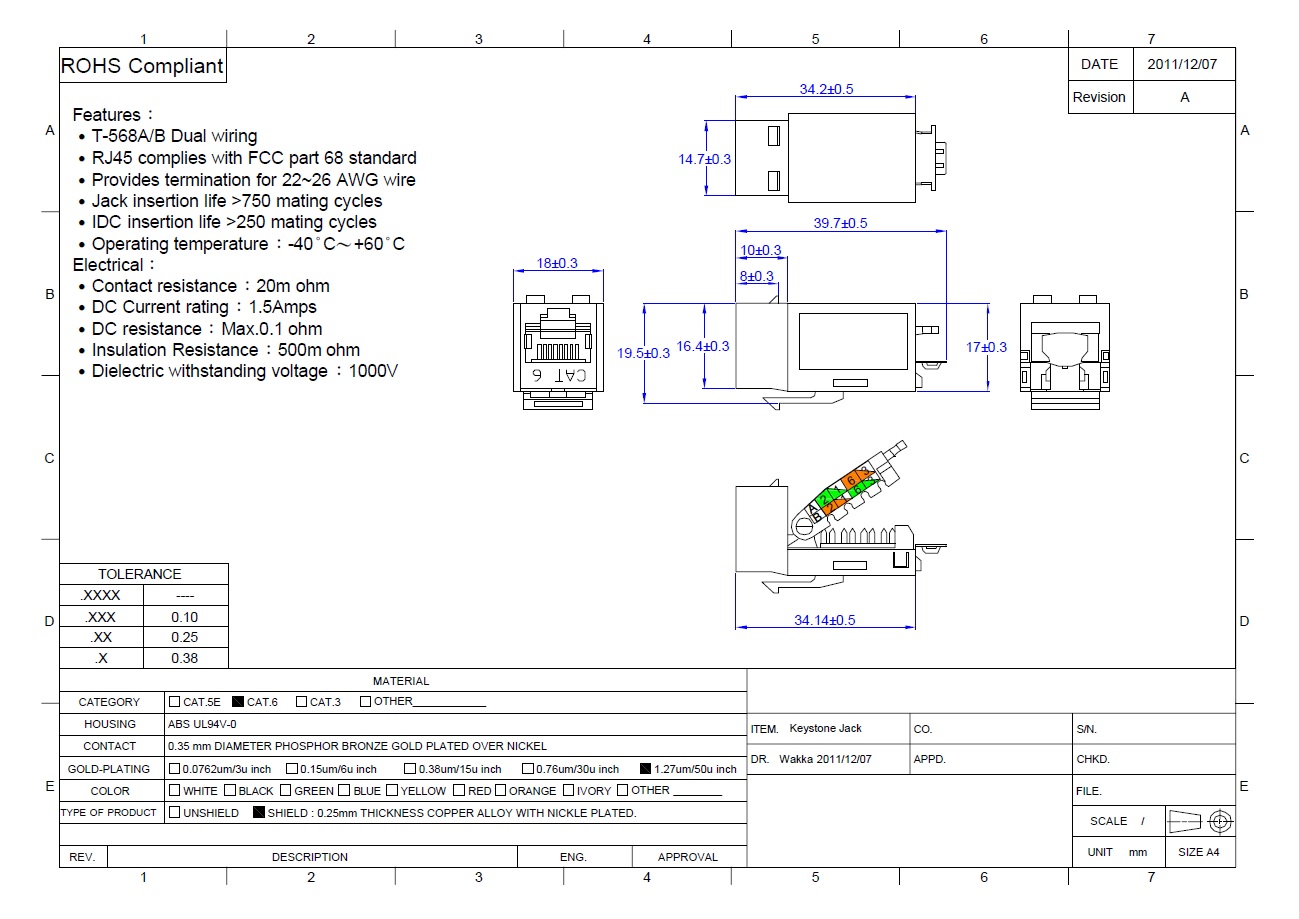

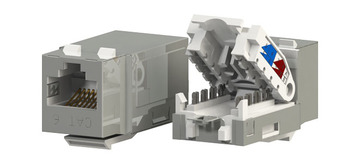

YD-504S CAT 6 STP 遮蔽式免工具90度 資訊插座
描述 |
六類RJ45遮蔽式免工具模組90度.
六類ANSI/TIA-568.C.2:2009 & ISO/IEC 11801規格.
採用UL-94V-0,耐衝擊、滯燃性ABS材質. |
Features : |
►T-568A/B Dual Wiring |
►RJ45 complies with FCC part 68 standard |
►Provides termination for 22-26AWG wire |
►Jack insertion life>750 mating cycles |
►IDC Insertion life>250 mating cycles |
►Operating temperature : -40C~+60C |
Electrical : |
►Contact resistance : 20m ohm |
►DC Current rating : 1.5Amps |
►DC resistance : Max. 0.1 ohm |
►Insulation Resistance : 500m ohm |
►Dielectric withstanding voltage : 1000V |
|
|
