    BELDEN-DEDN168F, Digital Electricity™, 8 Pr #16 Str TC, O/A Foil, PVC Jkt, CMG, Wet Locations 屋內外型遠端供電耐燃鋁箔屏蔽隔離數位電力電纜
    看原圖
    		BELDEN-DEDN168F

    BELDEN-DEDN168F

    BELDEN-DEDN168F, Digital Electricity™, 8 Pr #16 Str TC, O/A Foil, PVC Jkt, CMG, Wet Locations 屋內外型遠端供電鋁箔屏蔽隔離數位電力電纜

    Product Description Digital Electricity™ Optimized Cable, 8 Twisted Pair 16 AWG (7 x 24) Stranded Tinned Copper, PVC Insulation, Overall foil shield, Black PVC Jacket, Ripcord, CMG, Wet Locations, 2000 Ft Reel

    Product Overview

    Suitable Applications: Indoor/Outdoor, Digital Electricity™, remote powering, wet locations, in-conduit

    Physical Characteristics (Overall)


    Conductor
    AWG Stranding Material No. of Pairs
    16 7x24 TC - Tinned Copper 8
    Total Number of Pairs: 8

    Insulation
    Material Nominal Wall Thickness
    PVC - Polyvinyl Chloride 0.017 in

    Color Chart
    Number Color
    1 Black & Red
    2 Black & White
    3 Black & Green
    4 Black & Blue
    5 Black & Yellow
    6 Black & Brown
    7 Black & Orange
    8 Red & White

    Outer Shield Material
    Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
    Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 18

    Outer Jacket Material
    Material Nominal Diameter Nominal Wall Thickness
    PVC - Polyvinyl Chloride 0.585 in 0.040 in

    Electrical Characteristics


    Conductor DCR
    Nominal Conductor DCR Nominal Outer Shield DCR
    4.55 Ohm/1000ft 4.7 Ohm/1000ft

    Capacitance
    Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
    29.25 pF/ft 52.75 pF/ft

    Current
    Max. Recommended Current [A]
    5.5 Amps per Conductor at 25ºC (35°C Temperature Rise)

    Voltage
    UL Voltage Rating
    300 V RMS

    Temperature Range

    UL Temp Rating: 105°C
    Operating Temp Range: -30°C To +105°C

    Mechanical Characteristics

    Bulk Cable Weight: 220 lbs/1000ft
    Max Recommended Pulling Tension: 570 lbs
    Min Bend Radius/Minor Axis: 5.85 in

    Standards

    NEC Articles: Article 725, Article 800
    NEC/(UL) Specification: CL3, CMG
    CEC/C(UL) Specification: CMG
    UL AWM Style: 2464

    Applicable Environmental and Other Programs

    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2003/11/EC (BFR): Yes
    EU Directive 2011/65/EU (ROHS II): Yes
    EU Directive 2012/19/EU (WEEE): Yes
    EU Directive 2015/863/EU: Yes
    EU Directive Compliance: EU Directive 2003/11/EC (BFR)
    EU CE Mark: Yes
    EU REACH SVHC Compliance (yyyy-mm-dd): 2020-01-28
    EU RoHS Compliance Date (yyyy-mm-dd): 2020-01-28

    Suitability

    Suitability - Indoor: Yes
    Suitability - Sunlight Resistance: Yes

    Flammability, LS0H, Toxicity Testing

    C(UL) Flammability: FT4
    UL Flammability: UL 1685 FT4 Loading
    IEEE Flammability: 1202

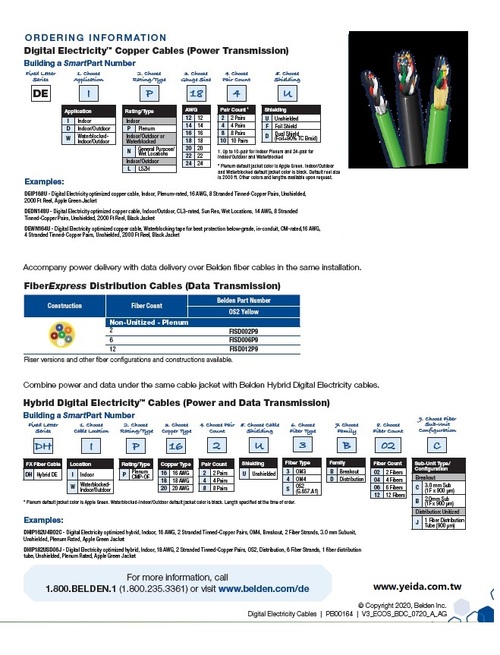

    Digital Electricity™標準電纜

    ＃對x AWG 室內全屏蔽非屏蔽 室內全屏蔽 室內/室外
    潮濕場所未屏蔽    		 室內/室外潮濕場所被屏蔽
    2 x 14 DEIP142U DEIP142F DEDN142U DEDN142F
    4 x 14 DEIP144U DEIP144F DEDN144U DEDN144F
    8 x 14 DEIP148U DEIP148F DEDN148U DEDN148F
    2 x 16 DEIP162U DEIP162F DEDN162U DEDN162F
    4 x 16 DEIP164U DEIP164F DEDN164U DEDN164F
    8 x 16 DEIP168U DEIP168F DEDN168U DEDN168F
    2 x 18 DEIP182U DEIP182F DEDN182U DEDN182F
    4 x 18 DEIP184U DEIP184F DEDN184U DEDN184F
    8 x 18 DEIP188U DEIP188F DEDN188U DEDN188F
