    首頁 > > ALPHA-EcoCable® Mini 小體積薄外徑電纜

    Alpha, EcoCable® Mini 300V, UL21460, smaller, lighter, Halogen Free, Foil Shielded, Multipair, Recyclable mPPE Cable 體積小, 重量輕, 可回收再利用, 環保型, 超迷你多對型鋁箔屏蔽隔離訊號控制電纜(Awg20, Awg22 )
    看原圖
    		ALPHA-78182

    Alpha-78182

    Alpha, EcoCable® Mini 300V, UL21460,  smaller, lighter, Halogen Free, Foil Shielded, Multipair, Recyclable mPPE Cable 體積小, 重量輕, 可回收再利用, 環保型, 超迷你多對型鋁箔屏蔽隔離訊號控制電纜(Awg20, Awg22 )

    CA Prop 65, CE, CSA AWM I A/B, CSA FT1, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL - VW-1, UL AWM 21460

    (Alpha78182, Alpha78183, Alpha78184, Alpha78135, Alpha78186, Alpha78188, Alpha78139, Alpha78419, Alpha78449, Alpha78192, Alpha78193, Alpha78194, Alpha78145, Alpha78196, Alpha78198, Alpha78149, Alpha78420, Alpha78450 )

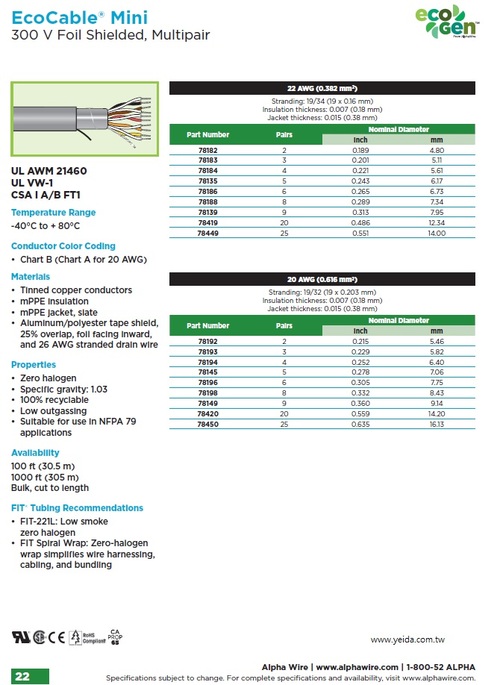

    EcoCable® Mini is the next generation of 300 V cables. By combining better performance and minimum environmental impact, EcoCable Mini uses its mPPE insulation and jacketing to provide all of the advantages in a smaller, lighter cable.

    UL AWM 21460
    UL VW-1
    CSA I A/B FT1
    Temperature Range
    -40°C to + 80°C
    Conductor Color Coding
    • Chart B (Chart A for 20 AWG)
    Materials
    • Tinned copper conductors
    • mPPE insulation
    • mPPE jacket, slate
    • Aluminum/polyester tape shield,
    25% overlap, foil facing inward,
    and 26 AWG stranded drain wire
    Properties
    • Zero halogen
    • Specific gravity: 1.03
    • 100% recyclable
    • Low outgassing
    • Suitable for use in NFPA 79
    applications

    FIT® Tubing Recommendations
    • FIT-221L: Low smoke
    zero halogen
    • FIT Spiral Wrap: Zero-halogen
    wrap simplifies wire harnessing,
    cabling, and bundling

    Part # AWG Stranding Construction Type # of Elements Shielding Jacket Diameter Temperature Range Voltage
    78419 22  19/34  PAIR  20  FOIL  0.433  -40 to 80  300
    78420 20  19/32  PAIR  20  FOIL  0.502  -40 to 80  300
    78449 22  19/34  PAIR  25  FOIL  0.491  -40 to 80  300
    78450 20  19/32  PAIR  25  FOIL  0.569  -40 to 80  300
    78135 22  19/34  PAIR  5  FOIL  0.243  -40 to 80  300
    78139 22  19/34  PAIR  9  FOIL  0.313  -40 to 80  300
    78145 20  19/32  PAIR  5  FOIL  0.278  -40 to 80  300
    78149 20  19/32  PAIR  9  FOIL  0.36  -40 to 80  300
    78182 22  19/34  PAIR  2  FOIL  0.189  -40 to 80  300
    78183 22  19/34  PAIR  3  FOIL  0.201  -40 to 80  300
    78184 22  19/34  PAIR  4  FOIL  0.221  -40 to 80  300
    78186 22  19/34  PAIR  6  FOIL  0.265  -40 to 80  300
    78188 22  19/34  PAIR  8  FOIL  0.289  -40 to 80  300
    78192 20  19/32  PAIR  2  FOIL  0.215  -40 to 80  300
    78193 20  19/32  PAIR  3  FOIL  0.229  -40 to 80  300
    78194 20  19/32  PAIR  4  FOIL  0.252  -40 to 80  300
    78196 20  19/32  PAIR  6  FOIL  0.305  -40 to 80  300
    78198 20  19/32  PAIR  8  FOIL  0.332  -40 to 80  300
    78245 20  19/32  PAIR  5  FOIL  0.308  -40 to 80  300
    78246 20  19/32  PAIR  6  FOIL  0.338  -40 to 80  300
